Mixing up these two grades isn't a paperwork problem. The wrong steam source can compromise product-contact safety, weaken sterilization performance, contaminate condensate, damage equipment, and trigger costly validation rework. Get the grade wrong on a sterilizer feed, and you're looking at failed loads, deviation investigations, and potentially a product recall.
This article compares clean steam and plant steam across source, purity, applications, system design, and testing. We'll reference current USP, ASME BPE, and ISPE guidance throughout — not generic claims — so engineers can make a defensible selection for US pharmaceutical facilities.
Key Takeaways
- Clean steam comes from treated feedwater in a dedicated generator for product-contact and sterilization duties.
- Plant steam serves non-contact heating and utility duties, provided a documented risk assessment supports it.
- Selection depends on contact risk, condensate quality needs, and sterilization purpose — not just cost.
- USP's compendial term is Pure Steam; industry commonly calls it "clean steam," so define terminology by the standard you're citing.

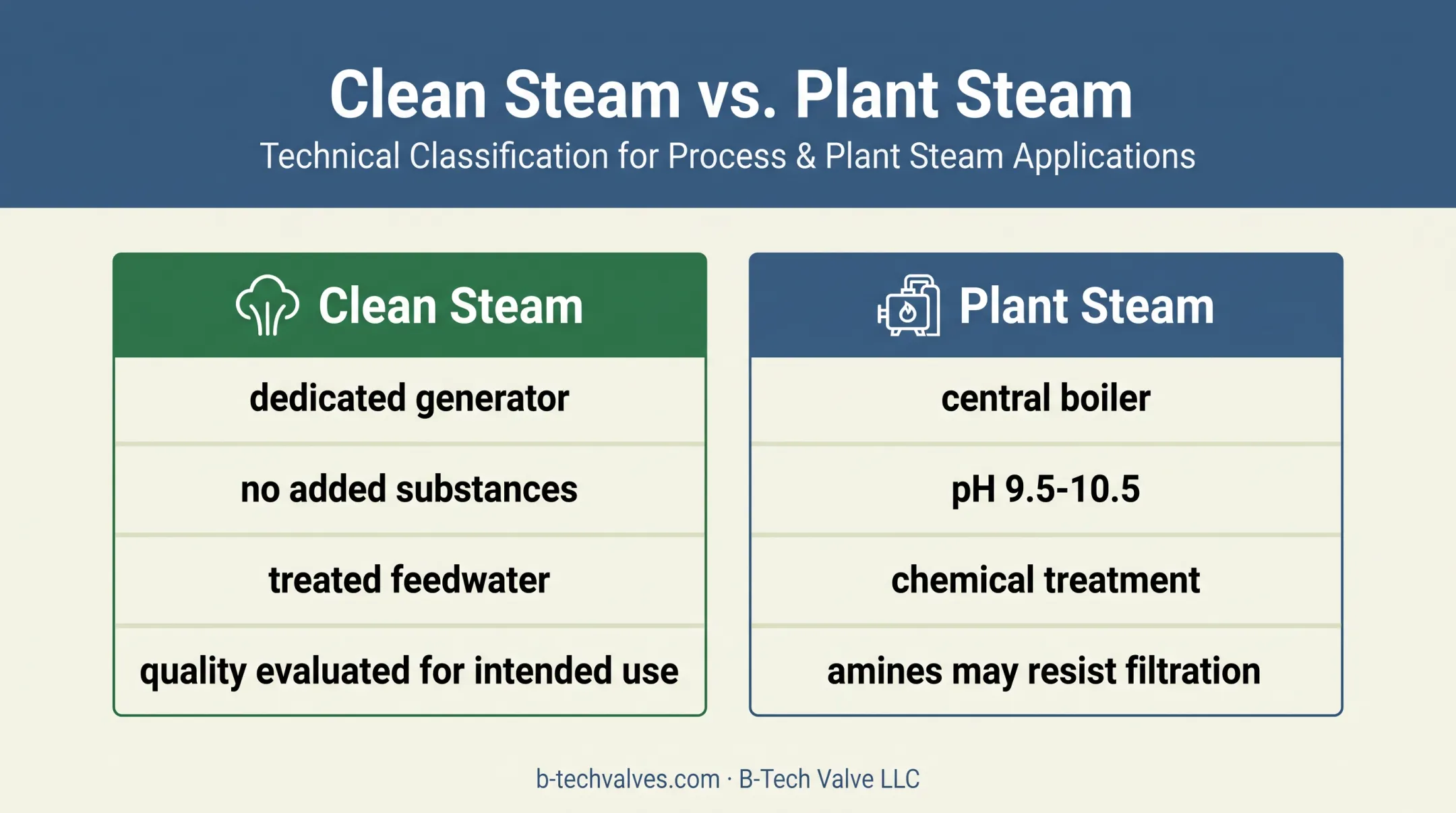

Clean Steam vs. Plant Steam: Quick Comparison
Steam Source and Generation
Clean steam starts as feedwater that meets specific quality requirements, then passes through a dedicated generator built for pharmaceutical duty. USP's Pure Steam monograph defines it as water heated above 100°C and vaporized so source-water entrainment cannot occur.
Feedwater must comply with USP Pure Steam requirements, including EPA National Primary Drinking Water Regulations or equivalent standards.
Plant steam comes from a conventional central boiler using potable water and chemical treatment. It serves the entire facility's general heating and utility loads.
Purity and Contamination Risk
Boiler-water chemistry is the core difference. Plant steam systems commonly dose feedwater to a pH range of 9.5–10.5, and some scale/corrosion inhibitors contain amines that filtration cannot remove, according to ISPE's 2024 steam report.
Those additives can contaminate a process or react with product if the steam reaches anything product-contact.
Clean steam, by contrast, contains no added substances per USP, with condensate quality, non-condensable gases, dryness, and superheat all evaluated against the intended use.
Typical Applications and Compliance
| Attribute | Plant Steam | Clean Steam |
|---|---|---|
| Typical duty | Indirect heating, HVAC coils, non-contact jacket heating | Autoclaves, SIP, sterilization of product-contact equipment |
| System focus | Segregation from critical systems, condensate management | Sanitary materials, drainability, minimized dead legs |
| Validation burden | Lower, unless boundary with critical systems is unclear | Higher: qualification and routine monitoring required |
Cost and Operational Trade-offs
Dedicated clean-steam generation adds capital cost, water-treatment infrastructure, and ongoing validation work. Plant steam is cheaper for general utility duty, but using it where high-purity steam is required creates costlier problems later: failed sterilization cycles, contamination investigations, and equipment replacement.
What Is Clean Steam?
Not every steam generator deserves the "clean steam" label. Boiling water doesn't automatically make it suitable for GMP use. The generation path matters as much as the water source.
The generation path: treated or purified feedwater enters a dedicated generator, converts to steam, and passes through separation equipment designed to limit entrained droplets. This separation step is what keeps dissolved solids and boiler residue out of the final steam.
Why Feedwater Quality Is Foundational
USP ties clean steam quality directly to feedwater quality. The Pure Steam monograph requires feedwater that satisfies US EPA drinking-water regulations or specified EU/Japan/WHO equivalents, with no added substances permitted in the resulting steam.
Purity vs. Performance
Steam purity and steam performance are two different measurements, and both matter for sterilization:
- Dryness fraction: how much liquid water is mixed into the vapor
- Non-condensable gases: air or other gases that insulate surfaces and block heat transfer
- Superheat: excess temperature beyond saturation that can prevent proper condensation on load surfaces
- Pressure and temperature: must reach every surface in the sterilization load consistently

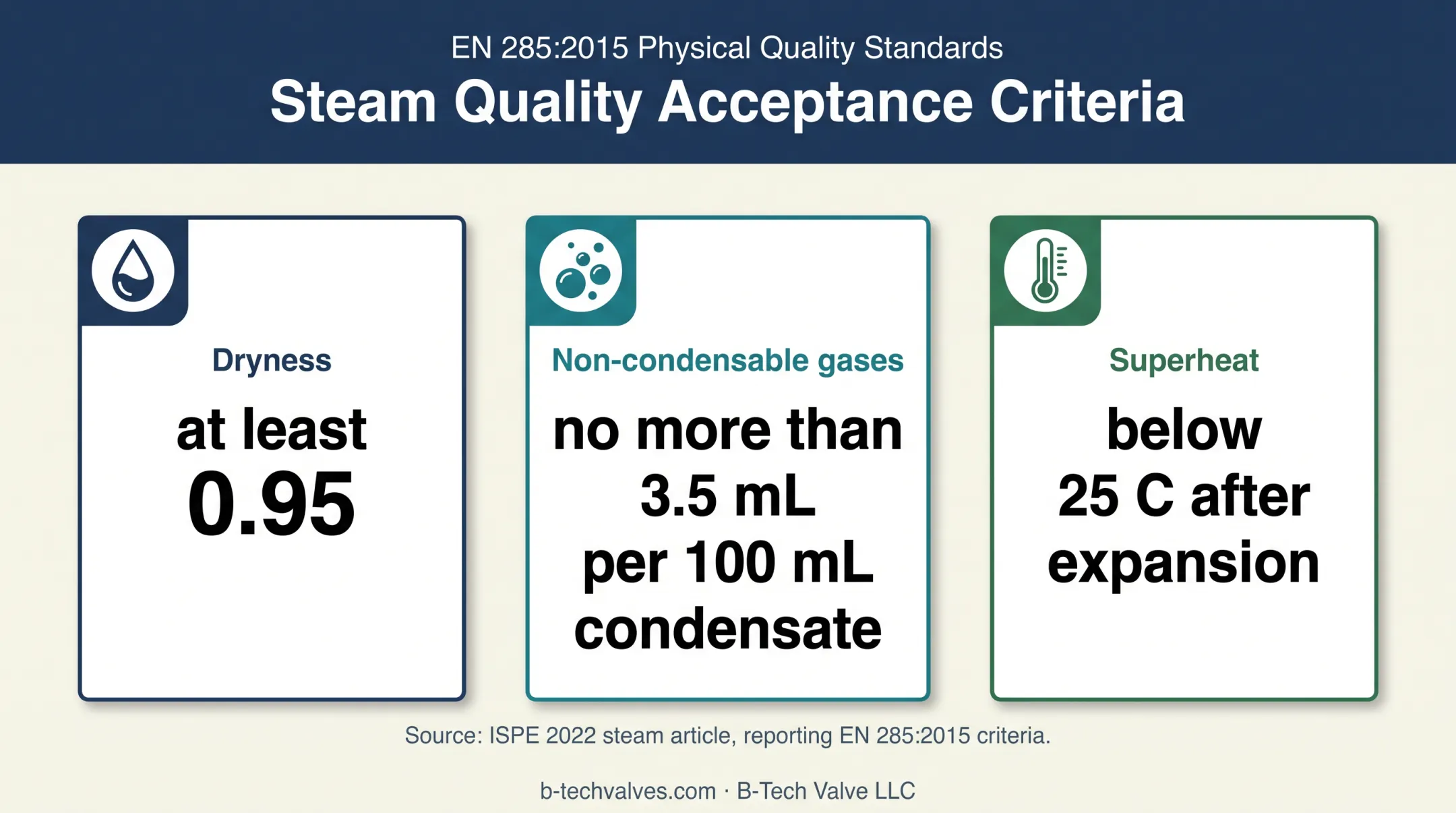

For sterilizer supply, industry commonly references EN 285:2015 test criteria: a dryness value of at least 0.95, no more than 3.5 mL of gas per 100 mL condensate, and superheat below 25°C after expansion to atmospheric pressure, as reported by ISPE's 2022 steam article.
Wet steam produces wet loads. Trapped gas pockets insulate surfaces from the heat needed to kill microorganisms.
Design Features That Support Pharmaceutical Use
- Corrosion-resistant materials and sanitary welding throughout
- Sloped, fully drainable piping with minimized stagnant sections
- Properly selected separators at the generator outlet
- Point-of-use traps at headers and branch connections
- Documented system qualification covering generation and distribution
ASME BPE covers clean-steam system design, point-of-use traps, and system isometrics in detail. Current guidance appears in BPE-2024, with BPE-2026 as the next scheduled revision.
A quick terminology note: USP's compendial term is Pure Steam. Industry commonly calls the same grade "clean steam." The required quality always depends on whether the steam contacts product, product-contact equipment, packaging, or only noncritical loads — so define your terms against the standard you're actually citing.
Use Cases of Clean Steam
Clean steam earns its place wherever steam or condensate could touch something that ends up in or near the patient.
Core applications include:
- Autoclaves and sterilization-in-place (SIP) cycles
- Sterilization of product-contact equipment and pipework
- Sterilization of primary packaging or components
- Freeze dryers and stopper processors
Supporting Aseptic Manufacturing
Clean steam reduces the risk that boiler chemicals, corrosion products, or other contaminants land on critical surfaces during sterilization. This matters most in aseptic processing, where a single contaminated load can trigger a full batch investigation.
Demonstrating Consistent Quality

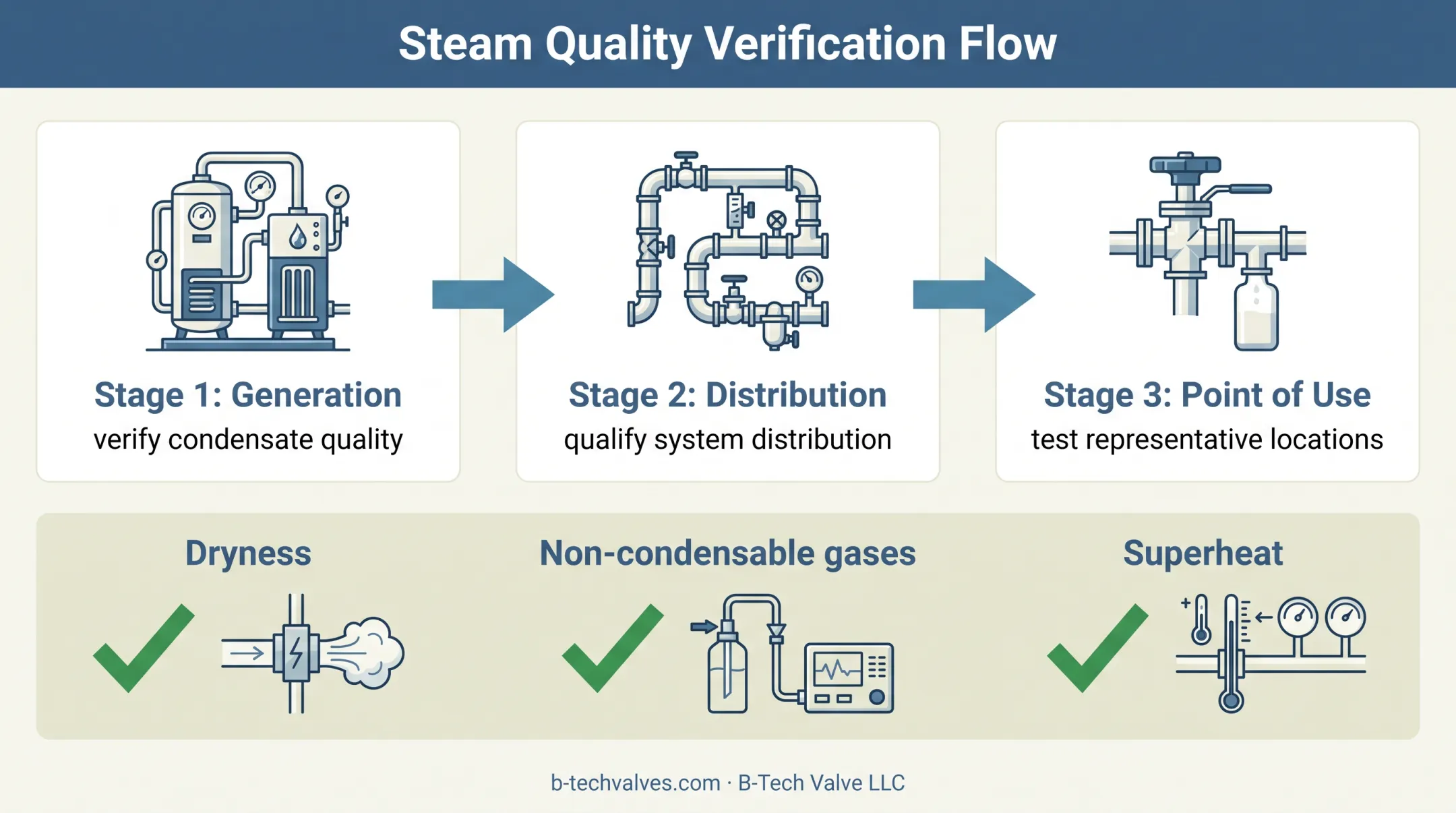

Condensate testing and steam-quality testing prove the system delivers the required quality at representative points of use, not just at the generator outlet. The three core test categories referenced above (dryness, non-condensable gases, superheat) form the backbone of most qualification protocols, with acceptance criteria tied to the specific sterilizer and load.
A real-world utility reliability example: Gedeon Richter faced escalating maintenance costs and frequent fermenter shutdowns at its Budapest facility, tied partly to costly mechanical-seal repairs. A site survey found insufficient steam traps, a faulty pressure-reducing valve, and excess system pressure.
The fix included:
- A new pressure-reducing station
- Separators ahead of mechanical seals
- Upgraded traps and strainers
- A condensate recirculating pump
Those elements were later reused at the company's newer Debrecen biotechnology plant. The case shows the value of diagnosing root-cause steam problems before swapping equipment, even though it addresses utility steam reliability rather than product-contact sterilization directly.
What Is Plant Steam?
Plant steam is the workhorse utility grade: produced by a conventional central boiler and distributed throughout the facility for general heating, process, and building-service duties.
What Determines Its Quality
Plant steam quality depends on:
- Boiler-water treatment and feedwater conditioning
- Chemical dosing for pH and corrosion control
- Condensate return practices
- Distribution materials and maintenance history
Plant Steam Isn't Automatically Banned
Here's the key clarification: plant steam isn't prohibited in a pharmaceutical facility. Its acceptability hinges on one question: can the steam contact product, product-contact surfaces, packaging, or critical sterilization loads? If the answer is no, and the site risk assessment supports that conclusion, plant steam is often the right, cost-effective choice.
Common suitable duties:
- Indirect heating through a heat exchanger
- Jacket heating where no product contact occurs
- Building humidification, where site procedures permit it
- General HVAC and space heating
Always verify each use against site procedures and equipment requirements rather than assuming prior approvals transfer automatically.
The Risks of Misapplication
Using plant steam in a critical application introduces real hazards:
- Chemical carryover from boiler treatment
- Entrained boiler water and corrosion products
- Inconsistent quality between boiler cycles
- Non-condensable gases and inadequate dryness
- Cross-connection with higher-grade steam systems (often the most dangerous)
ISPE calls isolation of stagnant or dead-leg pipework good practice precisely because these failure modes are hard to detect after the fact.
Clean Steam vs. Plant Steam: Which Is Better for a Pharma Plant?
Neither grade wins by default. The decision principle is simple to state and harder to apply: choose the steam quality required by the most sensitive credible risk at the point of use: not the cheapest option, and not the highest-purity option for every duty.
When to Choose Clean Steam
Select clean steam when steam or condensate can contact:
- Product or product-contact equipment
- Primary packaging
- Sterile pathways
- Surfaces that must be sterilized
If the applicable quality requirements can't be reliably demonstrated with plant steam at that point of use, clean steam is the only defensible choice.
When Plant Steam May Be Appropriate
Plant steam can serve indirect, non-product-contact duties provided:
- Heat-transfer surfaces remain intact (no breach between the utility steam side and the process side)
- Cross-contamination is controlled through physical segregation and documented procedures
- Engineering, quality, and validation teams approve the specific application in writing
A Practical Selection Checklist
Before committing to a steam grade, walk through:
- Product-contact status at every point of use
- Sterilization purpose and required cycle outcomes
- Condensate quality requirements
- Pressure, temperature, and dryness targets
- Non-condensable gas limits
- Chemical treatment used in the source system
- Distribution design, including drainability and dead legs
- Monitoring frequency and qualification strategy
- Maintenance history and failure-response procedures

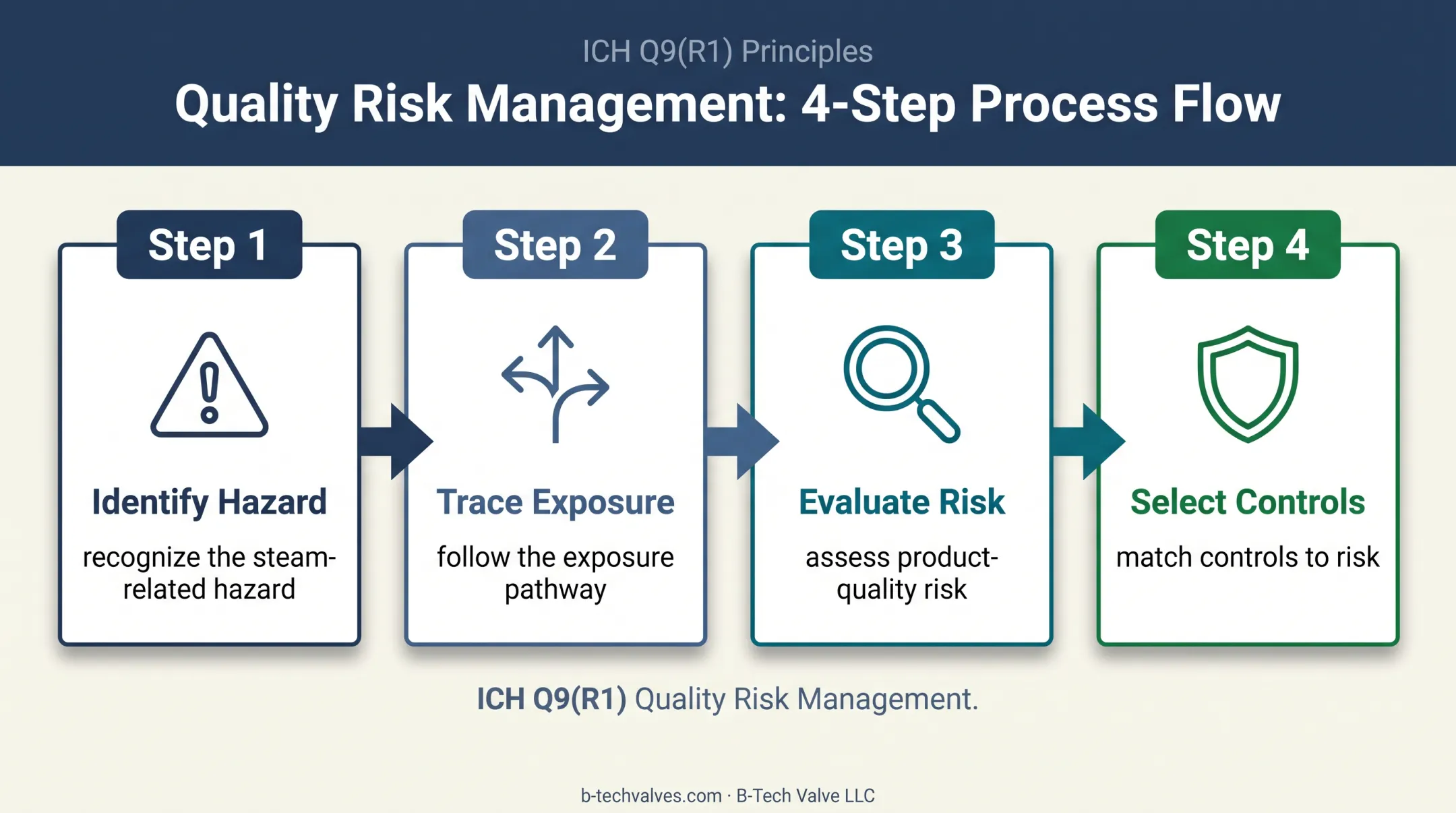

Applying a framework like ICH Q9(R1) Quality Risk Management helps structure this evaluation: identify the hazard, trace the exposure pathway, evaluate the product-quality risk, then select controls that match.
Lifecycle Trade-offs
Dedicated clean-steam generation typically requires more capital investment, more water-treatment infrastructure, and more validation effort up front. Plant steam needs less infrastructure initially, but if the application boundary is unclear, it can demand greater segregation work, more extensive testing, or costly equipment replacement later.
Downstream Temperature Control Still Matters
Even once a steam grade is correctly selected, downstream temperature control often remains necessary, particularly for approved non-product-contact or utility duties where superheated steam needs to be brought down to a target condition before it reaches heat exchangers or process equipment.
This is where desuperheater sizing becomes relevant. B-Tech Valve LLC designs application-sized desuperheater and attemperator assemblies for exactly this kind of utility steam conditioning:
- The LPD (Large Pipe Desuperheater) combines a variable-nozzle, actuated control valve and desuperheater in one assembly, built for steam pipes 6 inches and larger.
- The SPAD (Small Pipe Attemperator Desuperheater) uses a spray-ring design for steam pipes 4 inches and smaller, paired with a separate temperature-control valve.
Both are offered across ASME B16.34 pressure classes 150 through 2700 and temperatures up to 1,200°F. To be clear: a desuperheater conditions steam temperature for approved utility or non-product-contact duties. It does not convert plant steam into clean or pharmaceutical-grade steam.
For plants reviewing utility steam distribution, engineers can match application-sized LPD and SPAD configurations to their specific line size and operating conditions.
Conclusion
Clean steam is generally the right starting point for direct product-contact and critical sterilization applications. Plant steam remains useful (and often more economical) for properly segregated indirect and noncritical utility duties.
The final choice shouldn't rest on habit or convenience. It needs:
- A documented risk assessment
- Alignment with current US pharmaceutical requirements
- Clear equipment specifications
- A qualification strategy
- A testing plan
- A lifecycle review that accounts for maintenance and validation costs over time
Before signing off on a steam source, evaluate the complete path: generation, treatment, distribution, point of use, condensate handling, and ongoing monitoring. Judging suitability from the source label alone is how contamination risks slip through unnoticed.
Frequently Asked Questions
Is steam cleaning really worth it?
Household steam cleaning is unrelated to pharmaceutical clean-steam systems. In a pharma plant, clean steam is justified for critical sterilization or product-contact duties once its required quality and controls are demonstrated through qualification.
What should you not clean with a steam cleaner?
That question concerns household steam cleaners, not plant utilities. Don't generalize household steam-cleaning guidance to pharmaceutical equipment . Follow your equipment manufacturer's specifications and validated cleaning procedures instead.
What liquid do you use in a steam cleaner?
Household steam cleaners typically follow manufacturer water instructions. Pharmaceutical clean-steam generators require specified, treated feedwater controlled through documented water-system procedures . There's no universal substitute specification.
Is plant steam acceptable for pharmaceutical manufacturing?
Yes, for approved indirect or non-product-contact duties. Direct product-contact and critical sterilization uses require a documented assessment of steam and condensate quality against applicable requirements first.
What is the difference between clean steam and pure steam?
The terms are often used interchangeably . USP's compendial name is Pure Steam, while industry commonly says "clean steam." What matters more than the label is the required condensate, endotoxin, gas, and dryness controls for your specific application.
How is clean steam quality verified in a pharmaceutical plant?
Verification covers qualification and routine monitoring of both generation and distribution: condensate quality, non-condensable gases, dryness, superheat, pressure, temperature, and sampling at defined points of use, with documented acceptance criteria and deviation review.
