Introduction
Choosing between a forged or cast valve body sounds like a materials footnote. For high-pressure steam systems, it isn't.
Power plants, HRSGs, refineries, and chemical facilities push valve bodies through repeated thermal cycles, high differential pressures, and years of continuous service. The manufacturing route affects grain structure, defect risk, machining requirements, and how quickly a replacement body can reach your site during an outage.
Forging shapes solid metal under compressive force. Casting pours molten metal into a mold and lets it solidify. Neither process is automatically "better." The right choice depends on pressure class, temperature, alloy, geometry, and how the valve will actually be used.
This article compares both processes against real engineering criteria and gives you a selection framework for high-pressure steam applications, backed by recognized standards and industry sources.
Key Takeaways
- Forging deforms solid metal; casting solidifies molten metal in a mold, so grain structure and geometry options differ
- Forged bodies often suit compact, high-pressure, thermally cycled applications demanding toughness
- Cast bodies often suit large, complex-passage designs where machining a forging would be impractical
- Pressure class, alloy, inspection records, and the full valve specification matter more than "forged" or "cast" alone
Forged vs Cast Valve Bodies: Quick Comparison
Cost
Neither process wins on price across the board. Cost depends on geometry, volume, and quality requirements.
Forging cost drivers:
- Impression-die tooling, which gets cheaper per unit as order volume rises
- Material yield and the amount of secondary machining needed
- Alloy selection and required inspection level
Casting cost drivers:
- Pattern and core complexity, especially designs needing multiple cores
- Production quantity and achievable dimensional tolerance
- Inspection and acceptance criteria specified by the purchaser
The Steel Founders' Society notes that tighter acceptance criteria and more testing raise casting costs, so specify testing based on actual service needs, not a blanket standard.
There's no credible dollar-for-dollar benchmark proving one route is cheaper for steam valve bodies. Treat purchase price as one input, not the deciding factor.

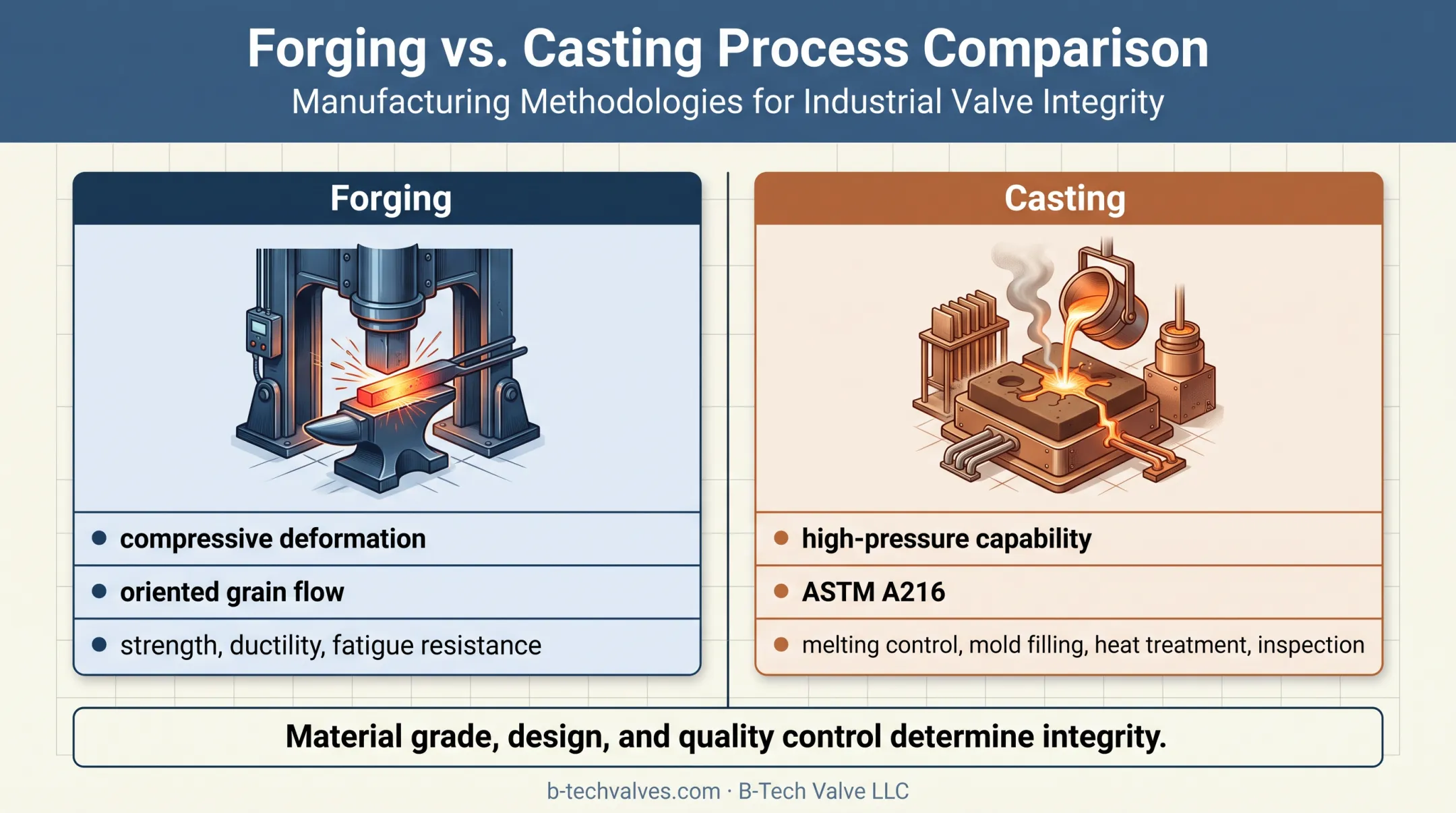

Pressure Integrity and Strength
Forging's compressive deformation can orient grain flow along load-bearing directions, a characteristic the Forging Industry Association links to strength, ductility, and fatigue resistance. That's a process-level observation, not a guarantee for any specific valve body.
Cast steel bodies can meet high-pressure requirements. ASTM A216 covers carbon-steel castings for valves and pressure-containing parts in high-temperature service, provided proper melting control, mold filling, heat treatment, and inspection are followed.
Bottom line: material grade, design, and quality control determine integrity, not the manufacturing label alone.
Geometry and Internal Passages
This is where the two processes diverge most practically.
- Forging handles simpler shapes well. Complex internal cavities typically require drilling or additional machining after the forging step.
- Casting uses cores to create intricate internal passages, multi-port configurations, and larger or irregular geometries directly in the mold.
If your valve needs a complicated flow path, casting often avoids expensive secondary machining. If the shape is relatively simple and compact, forging can be the more direct route.
High-Pressure Steam Operating Conditions
Several ASTM and ASME specifications govern both product forms for high-pressure steam service:
| Standard | Covers |
|---|---|
| ASME B16.34 | Pressure-temperature ratings, materials, NDE, and marking for cast, forged, and fabricated valves |
| ASTM A105/A105M | Carbon-steel forgings for piping, including valves |
| ASTM A182/A182M | Forged alloy and stainless components for high-temperature service |
| ASTM A216/A216M | Carbon-steel castings for valves, high-temperature service |
| ASTM A217/A217M | Martensitic stainless and alloy-steel castings, high-temperature |
| ASTM A351/A351M | Austenitic steel castings for pressure parts |
Note that A351 specifically warns certain austenitic grades (CE20N, CF3A, CF3MA, CF8A) aren't recommended above 800°F (425°C). Grade selection within either process matters more than the process itself.
Inspection, Lead Time, and Lifecycle Risk
Forgings over a certain size are commonly examined with contact pulse-echo ultrasonic testing per ASTM A388. Castings use a similar ultrasonic approach under ASTM A609, when specified.
Casting-specific risks include porosity, inclusions, shrinkage, and hot tears, all addressed under ASTM A216's discontinuity and repair-welding provisions. Forgings carry fewer internal-void risks but may need more machining lead time for complex features.
For outage planning:
- Confirm whether your specific body geometry can be replicated quickly
- Check if repair welding is permitted and documented for cast components
- Verify spare-parts availability before, not during, a shutdown
What Are Forged and Cast Valve Bodies?
Forged Valve Bodies
A forged valve body starts as a solid billet or bar, heated and mechanically shaped with dies rather than poured as liquid metal. The deformation process can refine grain structure and reduce certain internal void risks.
That said, forging doesn't eliminate the need for correct alloy selection, proper heat treatment, thorough machining, and testing. A forged label isn't a substitute for a material test report.
Potential advantages for high-pressure steam:
- Pressure containment in compact body designs
- Resistance to mechanical and thermal stress
- Predictable material properties when alloy and process are matched correctly
Limitations:
- Restricted ability to form complex hollow geometry without added machining
- Tooling costs for impression dies
- Size constraints tied to available stock and press capacity
Cast Valve Bodies
A cast valve body is produced by pouring molten metal into a mold, letting it solidify, then performing heat treatment, machining, and inspection.
This process suits complex contours, internal cavities, large bodies, and unusual flow paths that would be expensive to machine from a forging.
The main quality concerns for high-pressure steam service include:
- Porosity and shrinkage cavities from insufficient feed metal
- Non-metallic inclusions
- Incomplete mold filling
- Hot tears during solidification

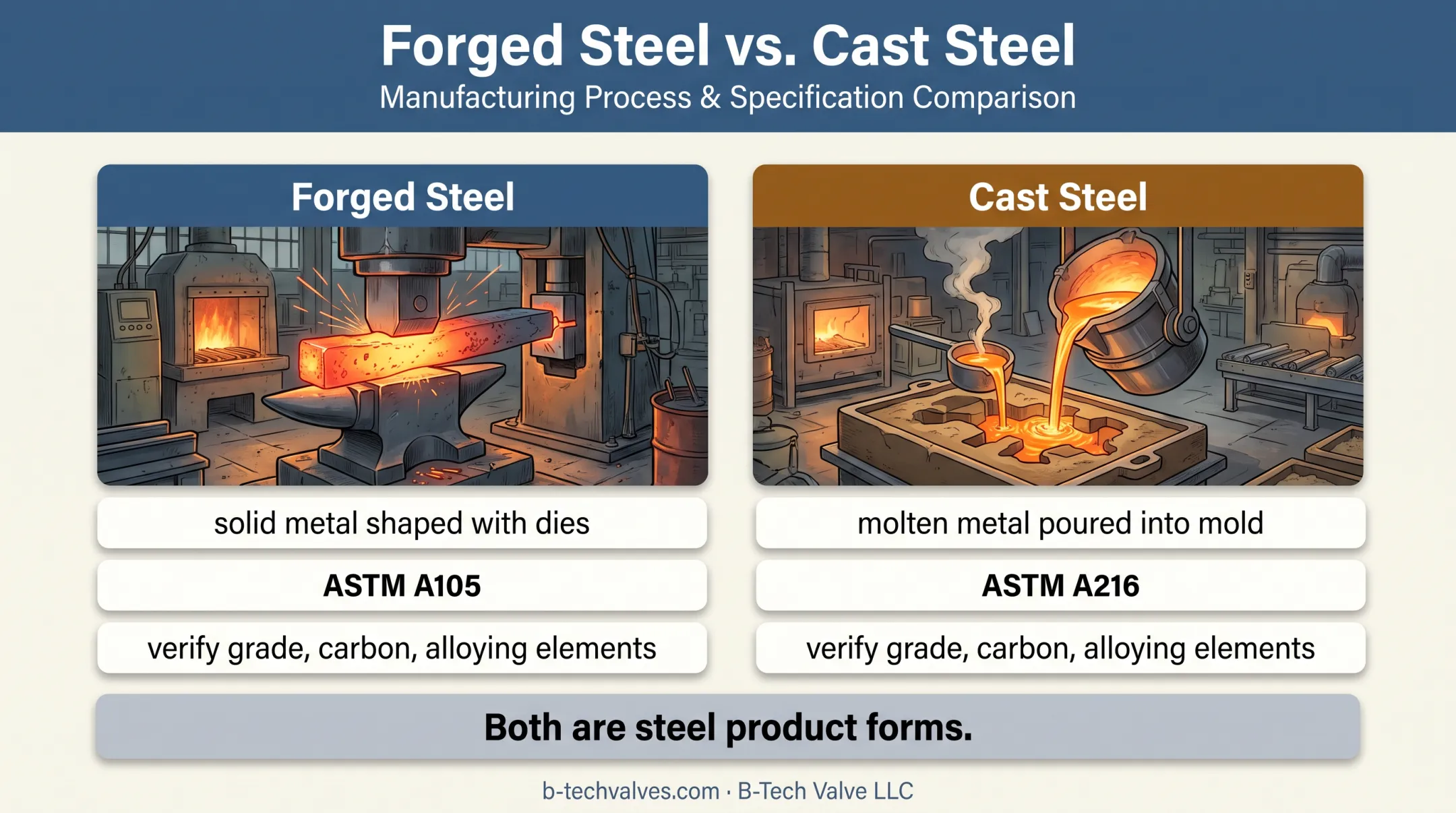

"Cast" does not mean "cast iron." Cast steel and forged steel are both steel — different product forms of the same base material family.
ASTM maintains separate specifications for each (A105 for forgings, A216 for castings), and neither spec substitutes for verifying the actual grade, carbon content, and alloying elements against your pressure class and temperature rating.
Use Cases in High-Pressure Steam Systems
Forged bodies are often specified for:
- Compact, high-pressure isolation or control valves
- Applications with severe thermal cycling
- High mechanical loading where toughness is the priority
Cast bodies are often specified for:
- Large line sizes
- Complex, multi-port flow configurations
- Specialized geometries that would require extensive post-forging machining
A compact, high-pressure feedwater isolation valve on a power-generation line is a typical forged application. A multi-port process-steam valve with an unusual flow path fits the cast approach. Both are illustrative scenarios, not documented case studies.
Forged vs Cast for High-Pressure Steam: What Is Better?

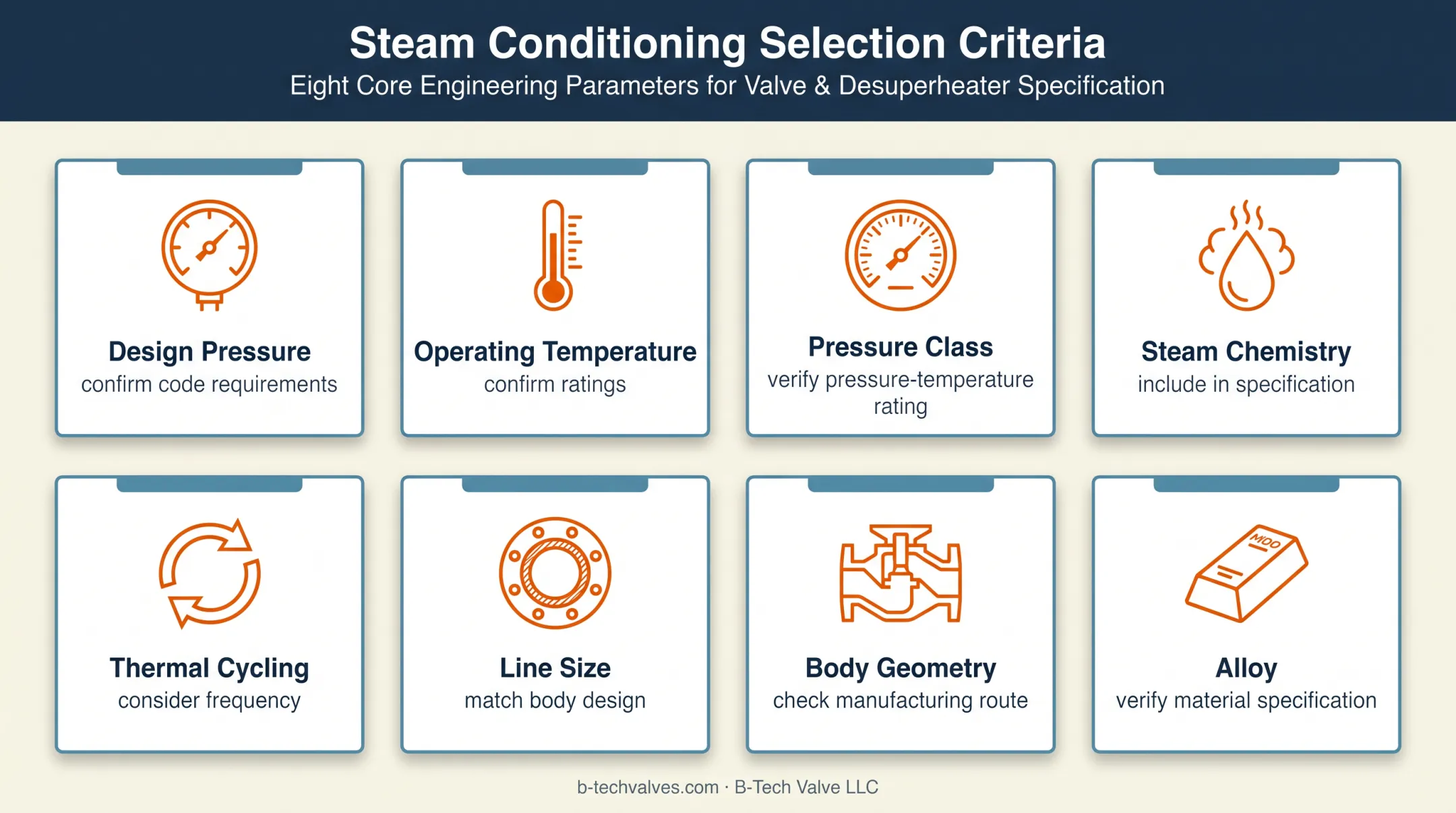

There's no universal winner here. The right answer depends on design pressure, operating temperature, pressure class, steam chemistry, thermal cycling frequency, line size, body geometry, alloy, and your procurement timeline.
Start with the pressure boundary. Confirm the applicable ASME or governing code requirements, pressure-temperature ratings, wall thickness, material specification, and testing with your valve manufacturer or engineer of record. Don't assume a rating based on product form alone.
Compare lifecycle cost, not just purchase price. Factor in:
- Tooling and machining costs
- Inspection requirements
- Spare-parts availability and repairability
- Production losses during an unplanned outage
- Replacement lead time
A practical decision framework:
- Lean toward a forged body when the design is relatively compact and pressure, toughness, or cyclic loading dominate the requirement
- Consider a cast body when complex geometry, large size, or material flexibility dominate, provided the foundry's quality system and inspection program support the application
- Verify qualified manufacturing and traceable documentation either way
High-pressure steam procurement checklist:
- Valve size and end connections
- Pressure and temperature conditions, including steam chemistry
- Required flow coefficient (Cv)
- Body and trim materials
- Actuation type
- ASME pressure class
- NDE requirements and material certificates
- Test records and traceability
- Installation constraints
- Spare-parts strategy and expected replacement timeframe
Valve body selection rarely happens in isolation. It's part of a larger steam-conditioning decision. If temperature control is part of your valve-system application, B-Tech Valve works with US power and process plants to evaluate steam-conditioning requirements and size desuperheater and attemperator equipment to match.
That includes LPD units for larger pipes and SPAD units for smaller pipes. If you're specifying a high-pressure steam system and need application engineering or sizing support, reach out to B-Tech Valve's team.
Real-World Selection Examples and Case Studies
Published, documented comparisons of forged-versus-cast outcomes specifically for high-pressure steam valve bodies are hard to come by in open technical literature. Existing sources are mainly manufacturer product lines and standards that show how the industry applies each process.
Forged-steel valves built to API 602, for example, are positioned for high pressure-temperature service. Some manufacturers seal-weld seats to the body for Class 1500 applications and steam service. This reflects a design choice favoring a compact, pressure-rated body with minimal joints.
On the casting side, manufacturer catalogs commonly list cast-steel valves for refineries, chemical plants, and power-generating facilities, with every unit receiving pressure testing per API 598 before shipment. This illustrates how quality control programs, not the casting process alone, support high-pressure service claims.
Practical takeaway:
- Do not select on manufacturing method alone
- Match service conditions to the manufacturer's qualified process, material certifications, and test records
- When unsure, ask an application engineer or valve supplier rather than relying on process reputation
Conclusion
Forged bodies tend to suit compact, high-pressure steam applications where toughness and cyclic-load resistance matter most. Cast bodies tend to suit complex, large, or passage-intensive designs , as long as the foundry's quality system and inspection program back up the pressure rating.
Either way, specify the complete valve, not just the body. Before you commit:
- Confirm material certification, applicable code compliance, and testing records
- Assess lifecycle and outage risk alongside purchase price
The manufacturing process is one input in a larger engineering decision. Treat it that way.
Frequently Asked Questions
Which is costlier, forging or casting?
Cost depends on geometry, material, tooling, production volume, machining, and inspection requirements , not the process itself. A simple high-volume forging can cost less than a complex low-volume casting, and vice versa.
What is the difference between casting and forging?
Casting solidifies molten metal inside a mold, taking the mold's shape. Forging shapes solid metal using compressive force, often producing a denser, directionally oriented grain structure. These differences affect both achievable geometry and material characteristics.
Is forging stronger than casting?
Forged components can offer better strength and toughness due to grain flow, but actual performance depends on alloy, design, heat treatment, and manufacturing quality. A well-made casting can outperform a poorly specified forging.
How can you tell if a valve body is forged or cast?
Check nameplate or body markings, material test certificates, purchase records, and manufacturer drawings. Appearance alone is unreliable, so confirm the product form with your supplier or the documentation on file.
What are the main types of forging?
Common categories include open-die, impression-die (closed-die), ring rolling, and warm or cold forging. Classification systems vary by source, so clarify which taxonomy your supplier or standard is using.
Why can't you forge cast iron?
Conventional cast iron's high carbon content creates a brittle microstructure that resists plastic deformation without cracking. Steel and other ductile alloys, by contrast, can often be either cast or forged depending on composition and intended application.
