Many people pull a saturation temperature from memory or a quick pressure lookup and assume that's enough. It isn't. Superheated steam doesn't follow the simple one-to-one pressure-temperature relationship that saturated steam does.
Correct sizing takes more than inlet temperature. You need the pressure basis (absolute or gauge), saturation temperature at the operating pressure, steam mass-flow range, target outlet condition, spray-water enthalpy, piping geometry, and the unit's control range.
This article covers what superheated steam actually is, how to read the relevant table properties, how those values feed a preliminary water-injection calculation, and what field data you still need before specifying equipment.
Key Takeaways
- Superheated steam sits above saturation temperature, so pressure alone can't define its condition
- Tables supply enthalpy, specific volume, and entropy at the actual pressure and temperature
- Desuperheater water demand comes from an energy balance between steam, spray water, and target outlet condition
- Pressure basis and unit consistency affect every downstream calculation
- Final sizing still hinges on turndown, evaporation distance, and controls beyond table data alone
What Superheated Steam Represents in Desuperheater Sizing
Superheated steam is steam heated beyond the saturation temperature that corresponds to its pressure. The difference between actual steam temperature and that saturation temperature is called the degree of superheat.
That distinction matters because steam exists in several states, not just "wet" or "dry":
- Saturated water - liquid at the boiling point for its pressure, with no vapor present yet
- Wet steam - a mixture of saturated vapor and entrained liquid droplets
- Dry saturated steam - 100% vapor, sitting exactly at saturation temperature
- Superheated steam - vapor above saturation temperature, with no liquid phase present
A saturated steam table only reports properties at the phase-change point. Once steam temperature exceeds saturation, you need the superheated table for that pressure-temperature pair.
This is exactly what a desuperheater manages. It injects a metered quantity of water into the superheated stream. That water absorbs sensible heat from the steam and evaporates, pulling the temperature toward the target outlet condition without creating excessive liquid carryover.
In the superheated region, pressure and temperature behave as independent variables. At one pressure, steam could sit at 500°F, 600°F, or 700°F, each with its own enthalpy and specific volume. That's different from the saturated region, where pressure fixes temperature exactly.
Before running any sizing calculation, gather these operating conditions:
- Upstream steam pressure and temperature
- Steam mass-flow range (minimum, normal, maximum)
- Downstream pressure
- Desired outlet temperature or degrees of superheat
- Spray-water pressure and temperature
Keep the target outlet temperature above saturation by an appropriate margin, unless the process specifically calls for saturated or near-saturated steam. That margin depends on the desuperheater type, installation geometry, and the manufacturer's published data for that model.
Operating Range, Boundary Conditions, and Key Properties
Every superheated steam table is only valid within the pressure, temperature, and phase region its source actually covers. Step outside that range and you're extrapolating, which most property formulations explicitly warn against.
Nominal Operating Range
Start by locating the pressure and temperature points that bracket your normal, minimum, and maximum operating conditions. Most tables publish discrete pressure blocks (every 50 psia, for example) with temperature columns running across the top.
The IAPWS industrial formulation is the property basis most industrial steam-table software and reference books rely on for power and process applications.
When you build a sample table excerpt for a sizing file, label the pressure basis, temperature units, and property units clearly. Future reviewers shouldn't have to guess.
Allowable Tolerance and Boundary Limits

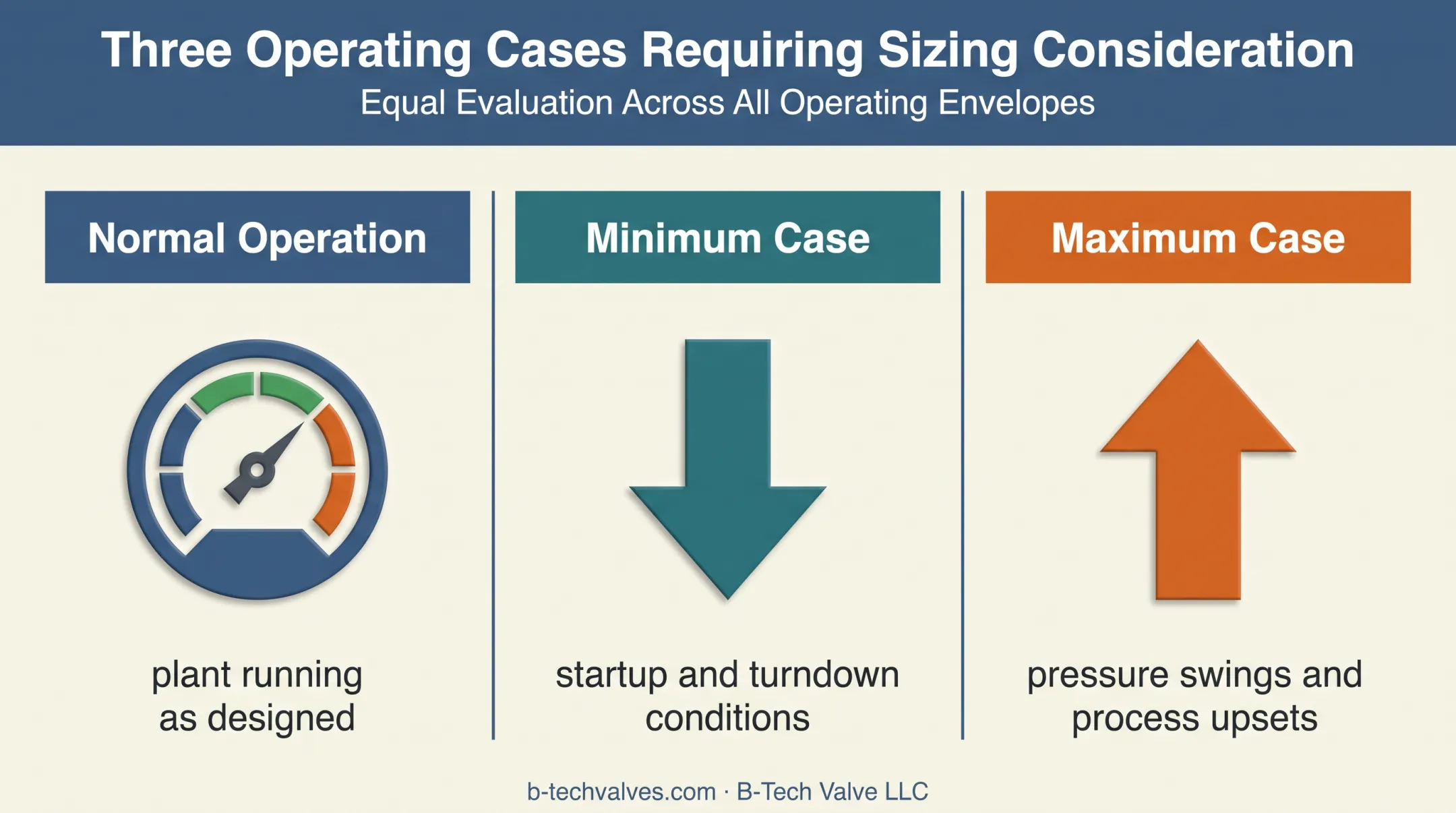

Normal operating values describe the plant running as designed. Minimum and maximum cases cover startup, turndown, pressure-reducing station swings, and process upsets: conditions that happen regularly even if they're not "normal."
Pay close attention to any calculation near the saturation boundary. A small pressure or temperature shift there can flip steam from superheated to wet, which:
- Changes which table applies (saturated versus superheated)
- Affects control stability as the temperature signal shifts near phase change
- Accelerates erosion and shortens downstream equipment life
Safe Operating Margin
Running the outlet temperature too close to saturation creates real risk: moisture formation, erosion, inaccurate temperature sensing, and liquid carryover into downstream piping.
There's no single safe-margin figure that applies to every desuperheater design. The right number depends on installation geometry, control-loop response time, and the manufacturer's performance data for your specific model. Pull that figure from documentation for your actual unit, not a generic rule of thumb.
Reading a Superheated Steam Table for Sizing
Superheated steam tables are typically organized by absolute pressure, with temperature running across the columns and properties (enthalpy, specific volume, entropy) listed beneath each temperature. A saturated table works differently: pressure alone determines a single saturation temperature and matching property set.
Confirm the Pressure Basis First
Before reading a value, check whether the table uses psia, psig, or bara. Mixing these up is one of the most common sizing errors.
TLV's steam table guide notes that absolute pressure references a vacuum while gauge pressure references local atmosphere, roughly 14.7 psi at sea level. If your field instrument reads gauge and your table requires absolute, convert before looking anything up.
The Properties That Matter for Sizing
Three properties do most of the work:
- Enthalpy - compare inlet and target outlet values to quantify heat that must leave the steam; also pull spray-water enthalpy at its own pressure and temperature
- Specific volume - indicates steam density, which drives volumetric flow, line velocity, nozzle sizing, and spray evaporation space
- Entropy and specific heat - useful for cross-checking enthalpy; the spray-water mass balance itself still relies on enthalpy
Interpolating Between Table Entries
Real operating points rarely land exactly on a published row and column. When pressure or temperature falls between entries, use linear interpolation. Start with the two nearest temperatures at fixed pressure, then interpolate between pressures if needed. Document your method, and don't extrapolate beyond the table's published range.
A Mollier chart gives a fast visual check of enthalpy and entropy trends, handy for sanity-checking a result. For anything going into a specification, use a tabulated value from NIST's steam tables or validated property software. That is more precise than reading a chart by eye.
A Simplified Worked Example
Say inlet steam arrives at roughly 145 psia and 572°F, with a downstream saturation temperature near 356°F at the reduced pressure. The target outlet condition is set at 365°F, about 9°F above saturation. You'd pull:
- Inlet steam enthalpy at 145 psia / 572°F
- Outlet steam enthalpy at the downstream pressure / 365°F
- Spray-water enthalpy at its actual pressure and temperature
Those three values, along with steam mass flow, feed directly into the energy balance below.
How Table Data Becomes a Desuperheater Specification

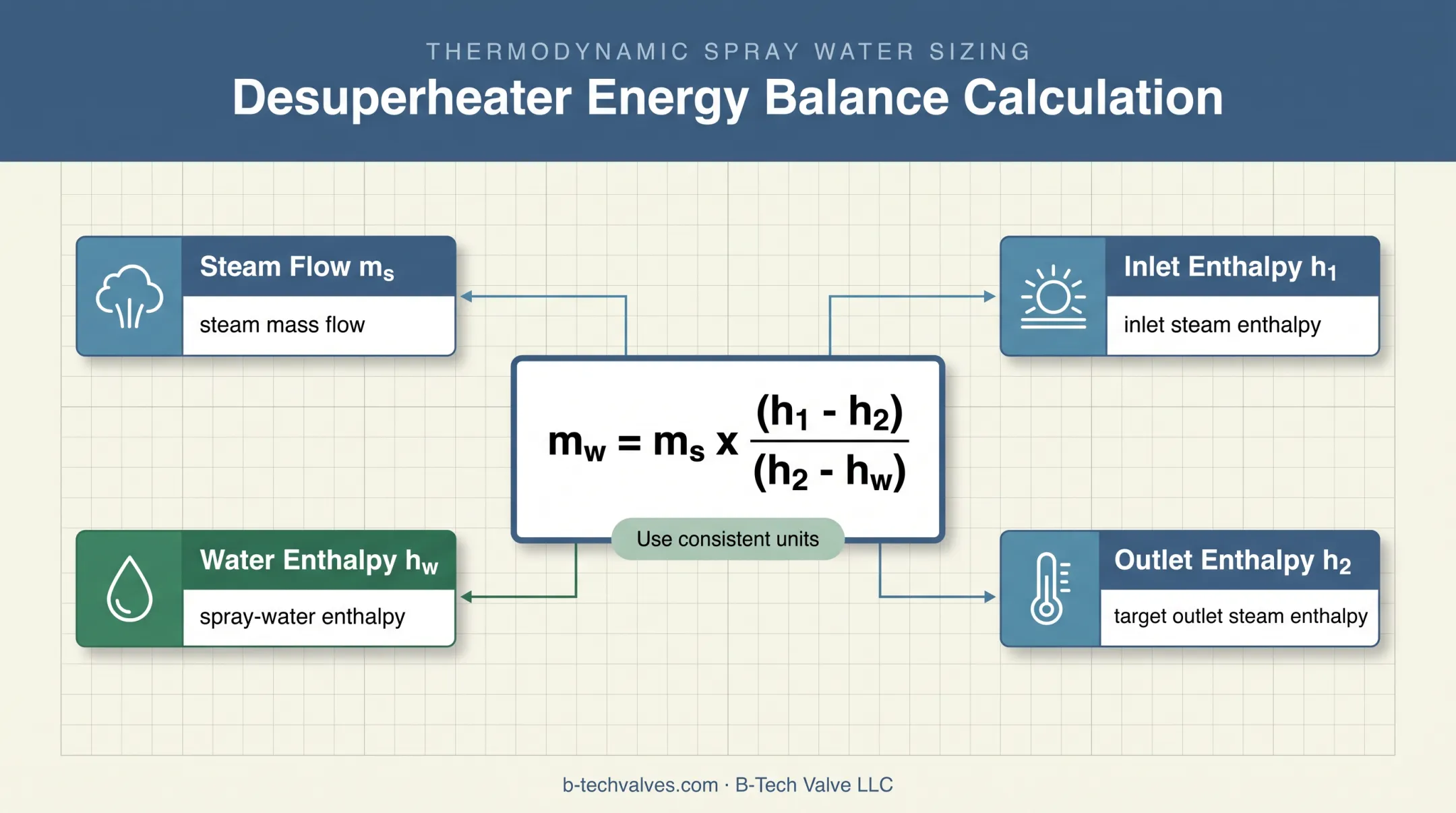

Once you have the enthalpy values, the spray-water calculation is a straightforward energy balance: heat lost by the steam equals heat gained by the water that evaporates into it.
In symbol form:
ṁw = ṁs × (h1 − h2) / (h2 − hw)
Where:
- ṁw = spray-water mass flow
- ṁs = steam mass flow
- h1 = inlet steam enthalpy
- h2 = target outlet steam enthalpy
- hw = spray-water enthalpy
Keep every term in the same unit system, Btu/lb with lb/hr, for instance. Mixing units is a fast way to get a number that looks reasonable and isn't.
Finding the target outlet enthalpy starts with the saturation temperature at your downstream pressure, not the upstream pressure (a common mix-up). Then pick the target outlet temperature, including any margin your application or manufacturer data requires, and read the matching enthalpy from the superheated table.
Required spray-water flow isn't fixed. It shifts with:
- Steam mass flow (higher load generally needs more water)
- Inlet superheat (more superheat to remove means more water)
- Downstream pressure and its saturation temperature
- Spray-water temperature (colder water removes more heat per pound)
- Target outlet temperature (a tighter approach to saturation needs less water)
That's why sizing covers minimum, normal, and maximum load separately, not just the condition that looks worst on paper. A unit sized only for peak flow can struggle to control accurately at low load.
The calculated water flow is a starting point, not a finished design. Before you select equipment, check:
- Available spray-water pressure against steam pressure
- Nozzle or atomizer capacity across the full flow range
- Pressure drop through the injection assembly
- Steam line size and injection arrangement
- Required straight-pipe evaporation distance downstream
- Downstream temperature-sensor location and control-valve authority
This is where a table calculation meets real application engineering. B-Tech Valve's application engineering team reviews actual steam and water conditions, not just enthalpy numbers, when sizing an LPD or SPAD desuperheater for a specific line size and pressure class.
A spreadsheet result tells you roughly how much water you need. It doesn't tell you which nozzle geometry or control valve will deliver that water reliably at your minimum load.
Specifying, Measuring, and Validating Desuperheater Performance
The number calculated from the steam table is a design input. It only becomes useful once documented clearly and checked against reality in the field.
Specification and Documentation
A complete sizing datasheet should capture:
- Steam pressure and temperature at minimum, normal, and maximum load
- Steam mass flow across that same range
- Downstream pressure and target outlet temperature
- Spray-water pressure and temperature
- Pipe size, material, and connection details
- Control signal type and design conditions
Label which numbers are rated, calculated, guaranteed performance, or field-measured. These aren't interchangeable, and mixing them up muddies accountability later. Note the steam-property source and reference units you used.
B-Tech Valve provides a digital sizing datasheet on request to capture this information before quoting an LPD or SPAD unit.
Measurement and Verification Methods
In the field, confirm pressure, temperature, steam flow, and water flow with properly located, calibrated instruments. A thermowell in the wrong spot throws off every downstream comparison.

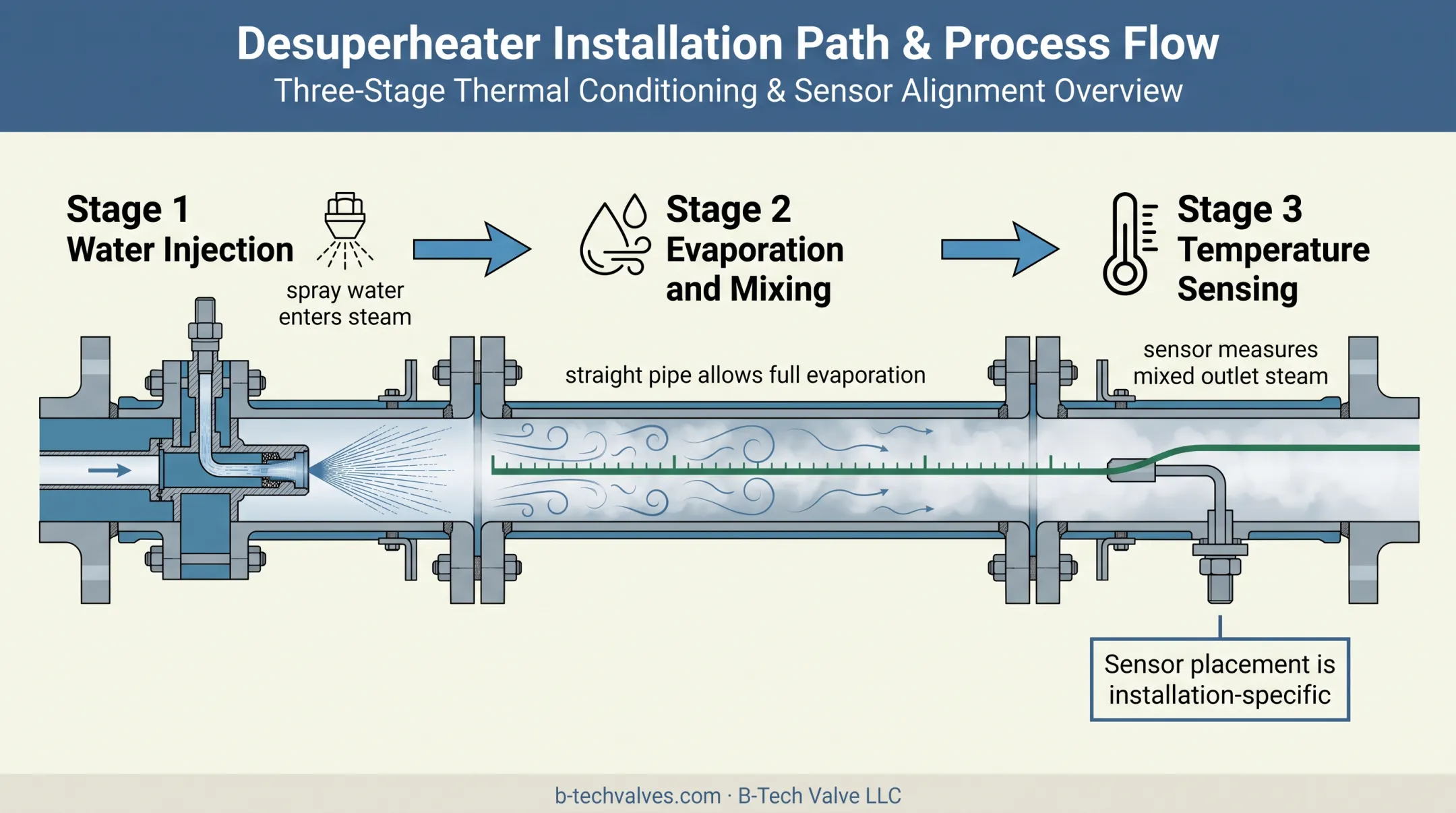

Outlet temperature sensor placement is critical. Leave enough straight pipe downstream of the injection point for spray water to fully evaporate and mix, but not so far that the sensor responds too slowly to load changes. That distance is installation-specific; check the manufacturer's certified drawing for your model.
During commissioning or a planned outage, validate:
- Stable outlet temperature
- No visible liquid carryover
- Controllability at both low and high load
- Reasonable agreement between measured and calculated conditions
Implications of Operating Outside the Recommended Range
Steam tables tell you the thermodynamics. They don't protect you from a desuperheater that's undersized, poorly atomized, or installed without enough evaporation distance. That's where real damage happens.
If spray water doesn't fully evaporate (from insufficient water pressure, excessive steam turndown, worn nozzles, or too short a straight run), unevaporated droplets travel downstream and hit pipe walls and fittings.
A documented case at a Duke Energy combined-cycle plant found temperature differentials up to 400°F at an elbow 21 feet downstream of an attemperator, with a projected risk of crack initiation from the resulting thermal cycling.
Running too hot means:
- The steam no longer suits the downstream heat-transfer or process requirement
- Downstream piping sees unnecessary thermal stress
- Seals and rotating equipment take damage they weren't designed for
Running too close to saturation, on the other hand, risks:
- Wet steam, erosion, and corrosion
- Unstable temperature control
- Damage to downstream piping and components
Common Misinterpretations of Superheated Steam Tables
A few mistakes show up repeatedly in sizing reviews:
- Using a saturated steam table for a superheated condition, or assuming pressure alone sets superheated steam temperature
- Confusing psig with psia, or using upstream pressure where the table requires downstream pressure
- Mixing Btu/lb with kJ/kg, or °F with °C, without converting first
- Treating nominal flow and design maximum flow as interchangeable (a peak-only valve often controls poorly at normal or minimum load)
- Assuming the table covers nozzle geometry, pipe layout, droplet evaporation, material compatibility, or installation safety (it doesn't; those come from application engineering)
Conclusion
A superheated steam table is the foundation of desuperheater sizing. It's where the enthalpy and related properties behind your spray-water estimate come from. But a table lookup only works if you're reading the correct pressure basis, temperature, and phase region for your actual operating condition.
Getting the number right is step one. Validating that number against real plant constraints is what turns a calculation into a working specification:
- Flow range and spray-water conditions
- Piping geometry and evaporation distance
- Controls and downstream equipment requirements
If you're sizing a desuperheater for a power or process plant, a documented, application-engineered review catches details a spreadsheet can't. B-Tech Valve reviews actual steam and water conditions for each LPD and SPAD application rather than treating a table calculation as the final answer. Units are offered in ASME B16.34 pressure classes 150 through 2700 for temperatures up to 1200°F.
Frequently Asked Questions
What is considered superheated steam?
Superheated steam is steam heated above the saturation temperature for its pressure. Because of this, sizing a desuperheater correctly requires superheated-steam property data rather than a saturated steam table.
What is the difference between superheated and saturated steam?
Saturated steam sits exactly at the phase-change temperature for its pressure, where liquid and vapor can coexist. Superheated steam is hotter than that temperature, which is why you need the superheated table, not the saturated one, for desuperheater calculations.
How do I know if my steam table uses psia or psig?
Check the table heading; it should state the pressure basis explicitly. If your field gauge reads psig, add local atmospheric pressure (about 14.7 psi at sea level) to convert to psia before you look up a value.
Can I use a Mollier chart instead of a steam table?
A Mollier chart works well for a quick visual check of enthalpy and entropy trends. For a specification-grade calculation, a tabulated value or validated property software gives more precision.
What margin above saturation should a desuperheater outlet maintain?
There's no universal number. The appropriate margin depends on the desuperheater type, installation geometry, and manufacturer performance data for your specific model, so check the equipment documentation rather than assuming a generic figure.
