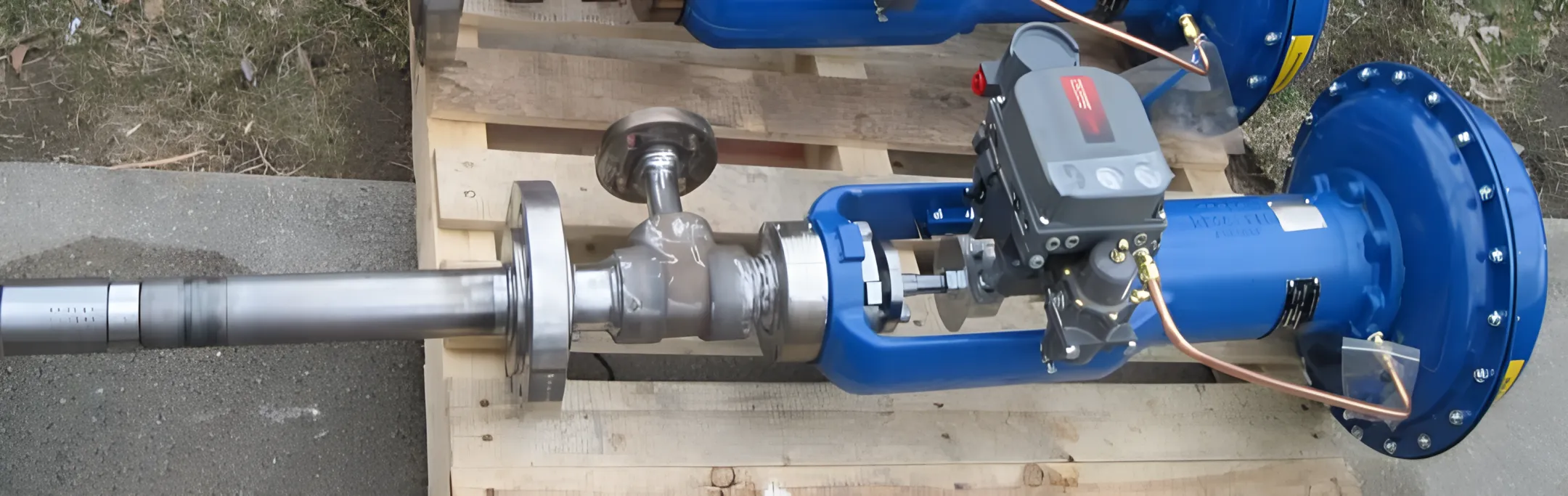

Emergency Desuperheater Replacement

Yes. Replacement Parts for Desuperheater Valves are intended for component-level installation and are described as American-made components stocked in-house for quick turnaround. They support ASME B16.34 pressure classes from 150 through 2700 and temperatures up to 1,200°F. Provide existing valve information and application details so compatibility can be reviewed.

SPAD is a small-pipe attemperator with a fixed-nozzle spray-ring design that clamps between two steam-pipe flanges. LPD is a large-pipe, probe-type design combining a variable-nozzle actuated control valve and desuperheater for pipes 6 inches and larger. The appropriate option depends on pipe size, installation arrangement and control requirements.

The listed products are available across ASME B16.34 pressure classes 150, 300, 600, 900, 1500, 2500 and 2700, with some product descriptions grouping the range as 150 through 2700. Confirm the required class against the existing valve, piping specification and operating conditions before selecting a replacement.

The listed desuperheater products and replacement components are rated for temperatures up to 1,200°F (650°C). The final selection should account for the operating temperature, steam conditions, pressure class, installation arrangement and the requirements of the existing steam system.

Desuperheaters condition steam to improve heat-transfer capability and manage steam flow. The listed applications include protecting piping and steam traps, protecting rotating seals, reducing boiler loads and reducing fuel costs. Emergency replacement selection should consider the equipment being protected, line arrangement and the required steam-conditioning performance.

Useful information includes the existing desuperheater or valve model, pipe size, flange arrangement, pressure class, temperature, steam application and required installation method. Details such as whether the unit is a fixed spray-ring or variable-nozzle design can also help. B-Tech Valve can then review the application and identify a suitable replacement part or assembly.
