Many engineers struggle with a different problem: picking the wrong table, mixing up psig and psia, or applying saturated data to steam that's actually superheated. These aren't minor slips. A misread saturation value can throw off heat-duty calculations, pipe sizing, and desuperheater performance by a wide margin.
This guide covers US-unit saturated steam tables: what the f/g notation means, how to read pressure- and temperature-based tables correctly, which columns matter for which calculations, and where table data falls short of a complete application review. It also flags the errors that show up most often in boiler rooms, process plants, and power systems.
Key Takeaways
- Pressure and saturation temperature are locked together at the liquid-vapor phase boundary.
- US-unit tables list pressure, temperature, specific volume, enthalpy, and entropy for saturated liquid and saturated vapor.
- Confirm psia versus psig before any lookup; the two produce different saturation temperatures.
- Superheated steam and subcooled liquid need different property data than saturation tables provide.
- Equipment sizing requires flow rate, line size, and pressure drop data alongside steam-table values.
What Saturated Steam Values Represent
Saturated steam is water vapor at the exact boiling point for its pressure. Below that temperature at a given pressure, you have liquid water. Above it, you have superheated vapor carrying extra heat beyond what's needed to boil.
Saturation sits in between, where liquid and vapor phases coexist at the same temperature and pressure.
Saturated Liquid, Saturated Vapor, and Quality

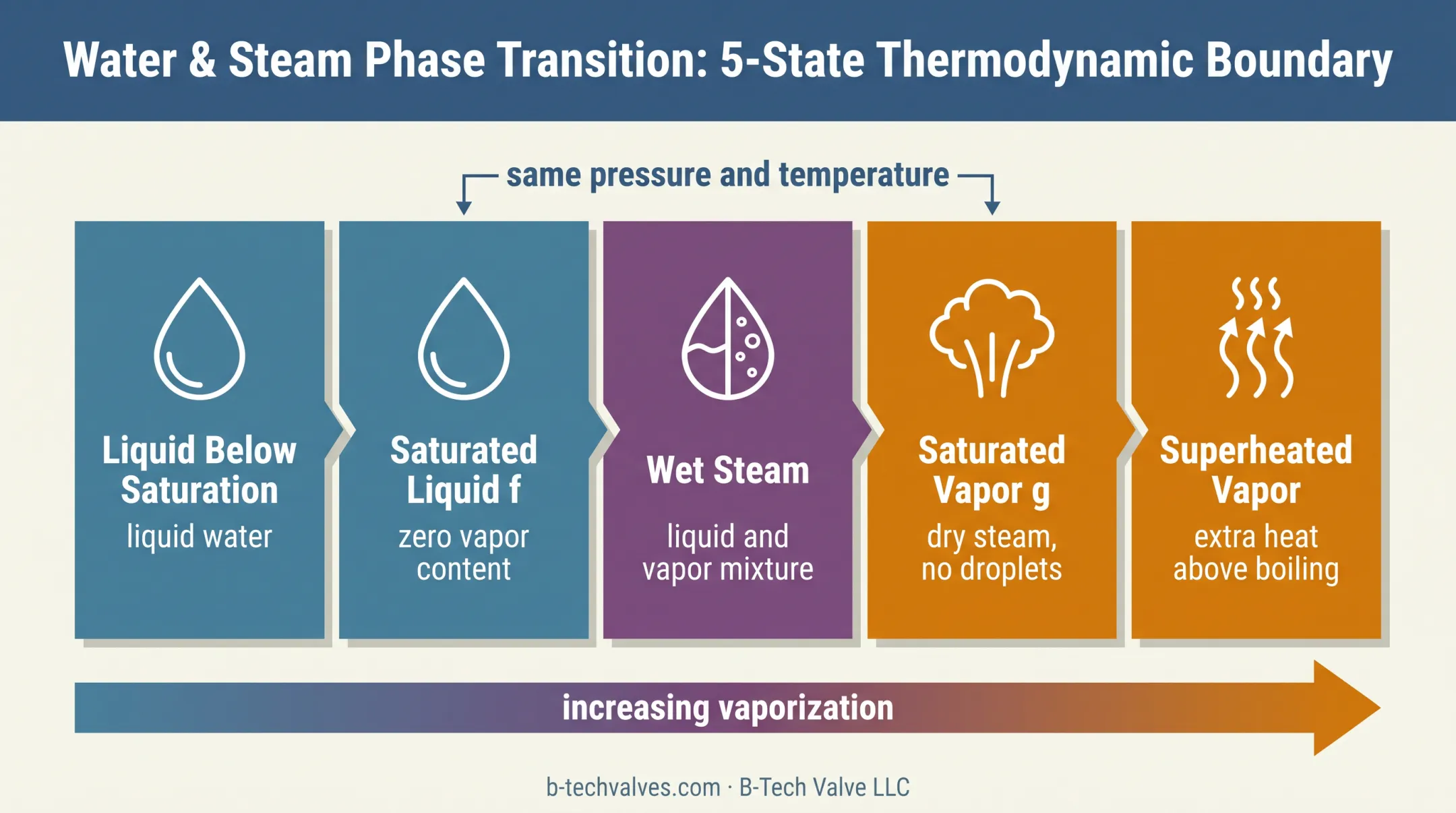

Steam tables mark this boundary with two endpoints:
- Saturated liquid (subscript f): water at its boiling point, about to vaporize, with zero vapor content.
- Saturated vapor (subscript g): dry steam with no liquid droplets, fully vaporized.
Between these two endpoints sits wet steam, a mixture of liquid and vapor. Quality, denoted x, is the mass fraction of vapor in that mixture. Saturated liquid has x = 0; saturated vapor has x = 1.
Anything in between is a two-phase blend, and its bulk properties are a weighted combination of the f and g values.
Specify one of pressure or saturation temperature, and the table gives you the other. You can't pick them independently at saturation. That's the entire point of a saturation table, and it's why engineers often ask "what's the saturation temperature at 150 psig?" rather than measuring temperature directly.
Where This Shows Up on the Plant Floor
Engineers pull saturated values for a range of everyday calculations:
- Estimating latent heat available for a heat exchanger or process heater
- Sizing condensate return lines and flash-tank capacity
- Checking turbine inlet or extraction conditions against design assumptions
- Confirming that a pressure-reducing station's downstream steam is still saturated, or has gone superheated
That last point connects directly to steam conditioning. A desuperheater removes excess heat from superheated steam by injecting water, cooling it toward saturation or to a specific target temperature.
The saturated table alone won't tell you the actual inlet condition. You need the real measured pressure and temperature, not an assumption pulled from a chart.
Steam tables give reference properties. They don't replace a full application review covering flow rate, pressure, temperature range, control requirements, materials, and transient operation.
How to Read and Apply a US-Unit Saturated Steam Table
Pressure-Based vs. Temperature-Based Tables
Saturated steam data comes in two table formats:
- Pressure-based tables: organized by psia, used when you know the operating pressure (common at pressure-reducing stations, boiler drums, and steam headers).
- Temperature-based tables: organized by °F, used when temperature is the known or measured quantity.
Both contain the same information, just sorted differently. Pick whichever matches the value you actually have in hand.

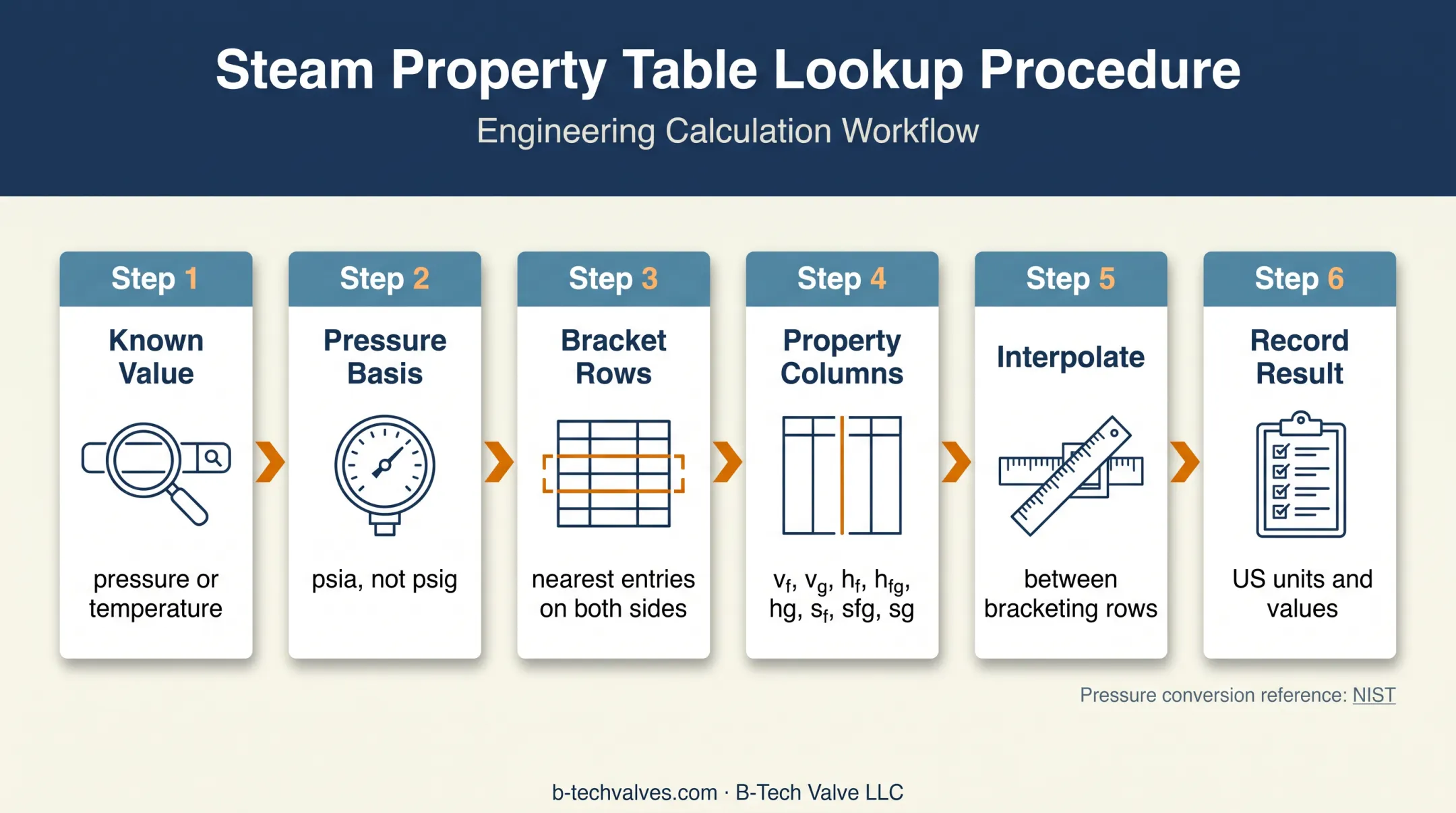

A Six-Step Lookup Workflow
- Identify the known value - pressure or temperature, and confirm which one you're starting from.
- Verify absolute vs. gauge pressure. Saturation calculations require absolute pressure. Under standard conditions, psia = psig + 14.696 psi per NIST. Use local atmospheric pressure when conditions aren't standard.
- Locate the nearest table entries on either side of your known value.
- Select the property columns you need - vf, vg, hf, hfg, hg, sf, sfg, sg.
- Interpolate between the two bracketing rows if your value falls between listed entries.
- Record the result with units - Btu/lb, ft³/lb, psia, °F, Btu/(lb·°R). Mixing unit systems mid-calculation is a common source of error.
A Representative Lookup Example
Say a process line runs at 150 psia. Pulling from ASME's steam tables, the saturated entries at that pressure look roughly like this:
| Property | Saturated Liquid (f) | Vapor Increment (fg) | Saturated Vapor (g) |
|---|---|---|---|
| Temperature (°F) | 358.4 | - | 358.4 |
| Specific volume (ft³/lb) | 0.0181 | - | 3.015 |
| Enthalpy (Btu/lb) | 330.5 | 863.6 | 1,194.1 |
| Entropy (Btu/lb·°R) | 0.5435 | 1.0032 | 1.5467 |
At exactly 150 psia, no interpolation is needed since it's a standard table entry. If your actual pressure were 152 psia, you'd interpolate linearly between the 150 and 155 psia rows for each property.
Engineering interpretation: at 150 psia, steam boils at 358.4°F. Every pound of liquid at that point needs 863.6 Btu to fully vaporize (hfg).
Saturated vapor occupies over 166 times the volume of saturated liquid at the same pressure (3.015 ÷ 0.0181). That volume ratio drives piping and valve sizing decisions.
Linear interpolation works well across most industrial pressure ranges. Near the critical point, property curves bend sharply and linear interpolation introduces meaningful error; use a validated property library instead.
Key Technical Properties and Calculation Considerations
Specific Volume: vf and vg
Specific volume measures how much space a pound of fluid occupies. At any given saturation pressure, vg runs dramatically larger than vf, often by two or three orders of magnitude at lower pressures, a gap that narrows as pressure climbs toward the critical point.
That's why steam piping needs to be sized so differently from condensate piping: the same mass flow of vapor needs far more cross-sectional area to keep velocity in check.
Enthalpy: hf, hfg, and hg
Enthalpy columns describe the heat content of the fluid:
- hf: heat content of saturated liquid at that pressure
- hfg: latent heat of vaporization, the energy needed to convert liquid to vapor with no temperature change
- hg: heat content of saturated vapor, where hg = hf + hfg
This relationship drives boiler heat-duty calculations and heat-exchanger sizing. Know how much latent heat a process needs, and hfg tells you directly how much steam mass has to condense to deliver it.
Entropy and Quality-Weighted Mixtures
Entropy columns follow the same additive logic: sg = sf + sfg. These values matter most in Rankine-cycle analysis, turbine expansion-line calculations, and tracking steam quality as it expands or loses pressure.
For wet steam between the f and g endpoints, bulk properties follow a quality-weighted formula:
- v = vf + x(vg − vf)
- h = hf + x · hfg
- s = sf + x · sfg
Where x is the vapor mass fraction, ranging from 0 to 1. These relationships only apply within the saturation dome. Once steam is superheated or pressure exceeds the critical point, quality has no meaning, and superheated-steam property data is required instead.

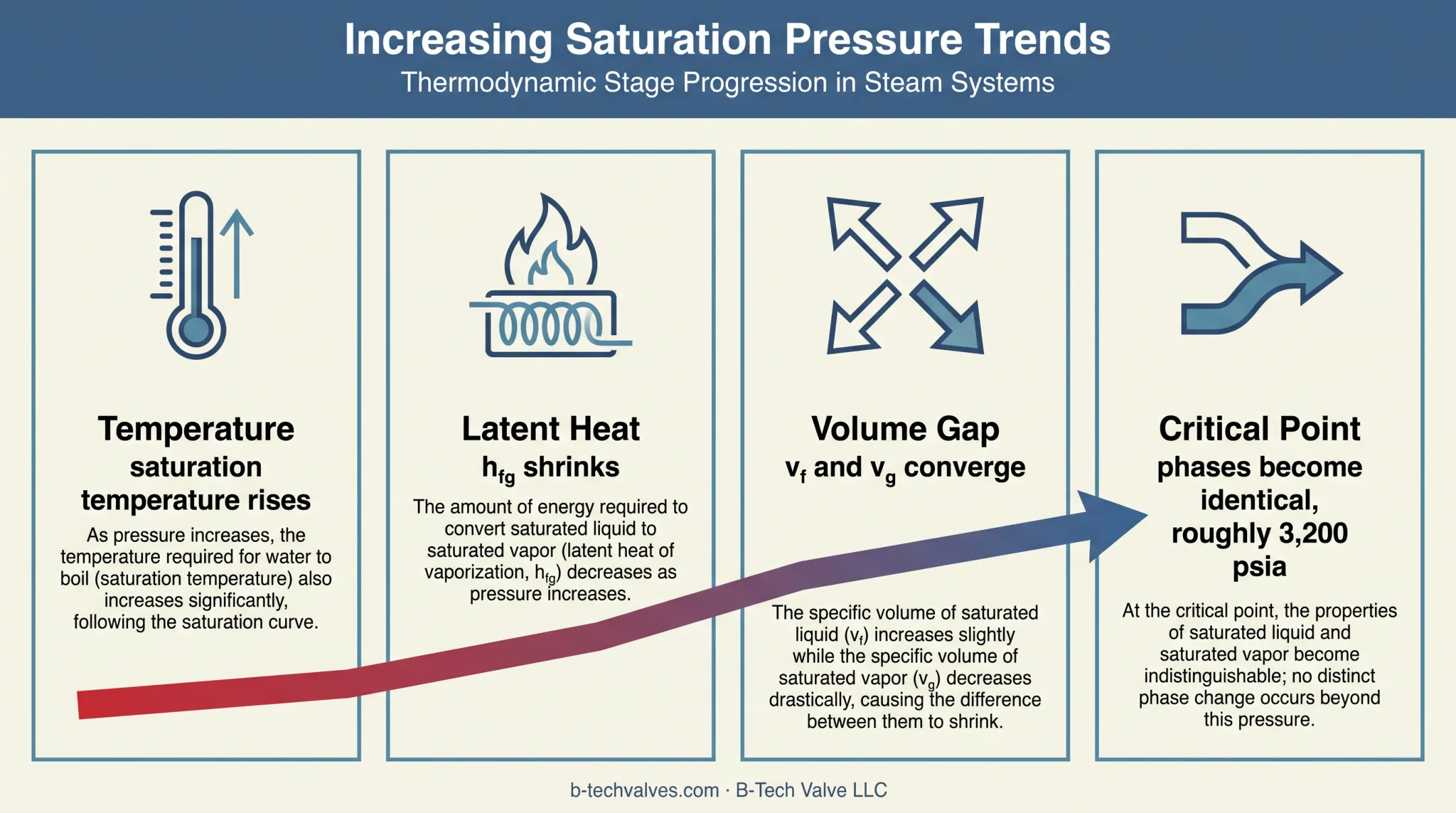

As saturation pressure increases, saturation temperature rises too, while the liquid-vapor gap narrows. hfg shrinks as pressure climbs, meaning less latent heat is needed per pound near the critical point, and vf and vg converge toward each other.
At the critical point, roughly 3,200 psia, the liquid and vapor phases become identical.
When you pull values from a published table, conventions vary by source: reference states, rounding, and column order aren't universal. Note which reference you used, and keep units consistent through every step of a calculation.
Operating Range and Boundary Conditions
A saturated steam table is only valid within the range its source data actually covers.
Nominal Operating Range
The IAPWS-IF97 formulation, the basis for most modern steam property software, covers the saturation curve from the triple point up to the critical point: roughly 32°F to 705.1°F and 0.0887 to 3,200.1 psia in US units. Not every published table or software tool covers the full curve, so check the stated range in whatever reference you're using.
These values assume pure water/steam, equilibrium conditions, and negligible measurement error, which real systems rarely meet all at once.
Allowable Tolerance and Boundary Limits

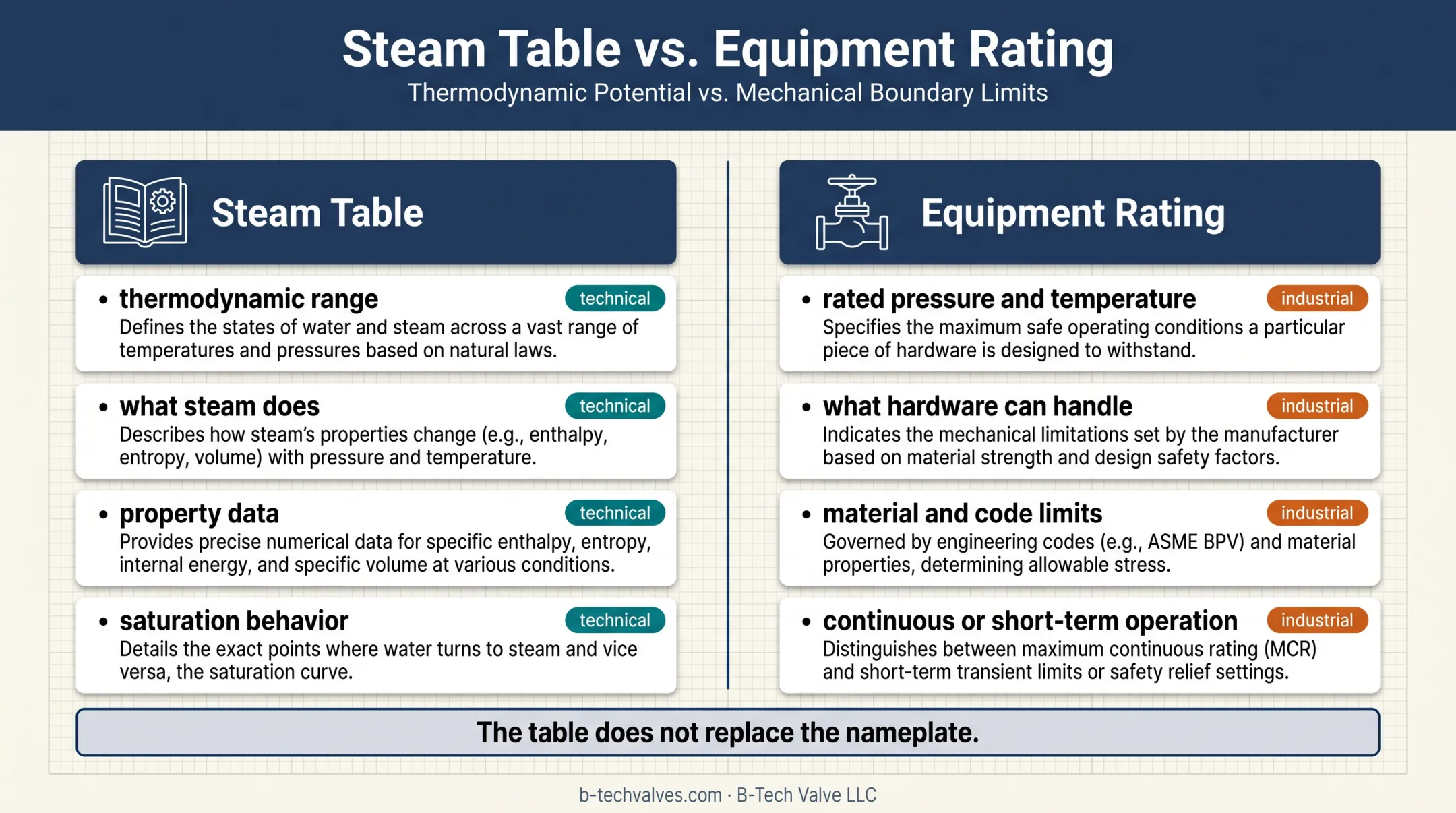

A table's thermodynamic range isn't the same as your equipment's rated range:
- Continuous rating: what the equipment is designed to handle indefinitely
- Short-term excursion: a transient spike the equipment can tolerate briefly without damage
Pressure, temperature, material, and code limits for valves and piping come from equipment documentation and applicable codes such as ASME B16.34, not from a steam-property table. The table tells you what steam does; the nameplate tells you what the hardware can handle.
Safe Operating Margin
Don't select equipment to run right at its rated boundary. Transients, control-valve response lag, startup and shutdown swings, and ordinary measurement uncertainty all eat into the margin between rated and actual conditions. Building in margin here is cheap insurance against nuisance trips and accelerated wear.
Specifying, Measuring, and Validating Steam Conditions
Before comparing a real system against a saturated steam table, gather accurate field data:
- Pressure reading, including its location and whether it's gauge or absolute
- Temperature reading at the same point as the pressure measurement
- Flow rate
- Steam quality or moisture indicators, where instrumentation allows
- Instrument calibration status and date
With a pressure and temperature pair in hand, check it against the saturation relationship. If the measured temperature matches the saturation temperature for that pressure, the steam is plausibly saturated. If it's hotter, you're looking at superheated steam, and saturated-table vapor properties no longer apply.
Also gather supporting documentation: datasheets, P&IDs, equipment nameplates, control-system trend data, and current applicable engineering standards.
A Practical Specification Checklist
When specifying steam-conditioning equipment such as a desuperheater, document:
- Line size
- Minimum and maximum flow
- Inlet pressure and temperature
- Desired outlet condition
- Allowable pressure drop
- Water quality, materials, and control requirements
This is exactly the condition set application-engineering teams need. B-Tech Valve's engineering team, for example, works from these details when evaluating application-sized LPD desuperheaters for 6-inch-and-larger steam lines or SPAD desuperheaters for 4-inch-and-smaller lines. Table data establishes the thermodynamic starting point; it doesn't replace a sizing review that accounts for actual flow, turndown, and control response.
Common Misinterpretations of Saturated Steam Values
A few mistakes show up repeatedly:
- Treating saturation temperature as the measured temperature. Pressure drop, heat loss, and non-equilibrium conditions can cause actual temperature to diverge from the table's saturation value.
- Mistaking nominal table values for exact field readings. Sensor placement, calibration drift, transient loads, and rounding all introduce variance a clean table row doesn't show.
- Assuming saturated vapor means dry steam without checking. Wet steam carrying moisture needs a verified quality value before you apply vg, hg, or sg columns directly.
- Using table data as a final sizing authority. A steam table supports calculations; it can't replace equipment-specific ratings, code requirements, or engineering judgment.

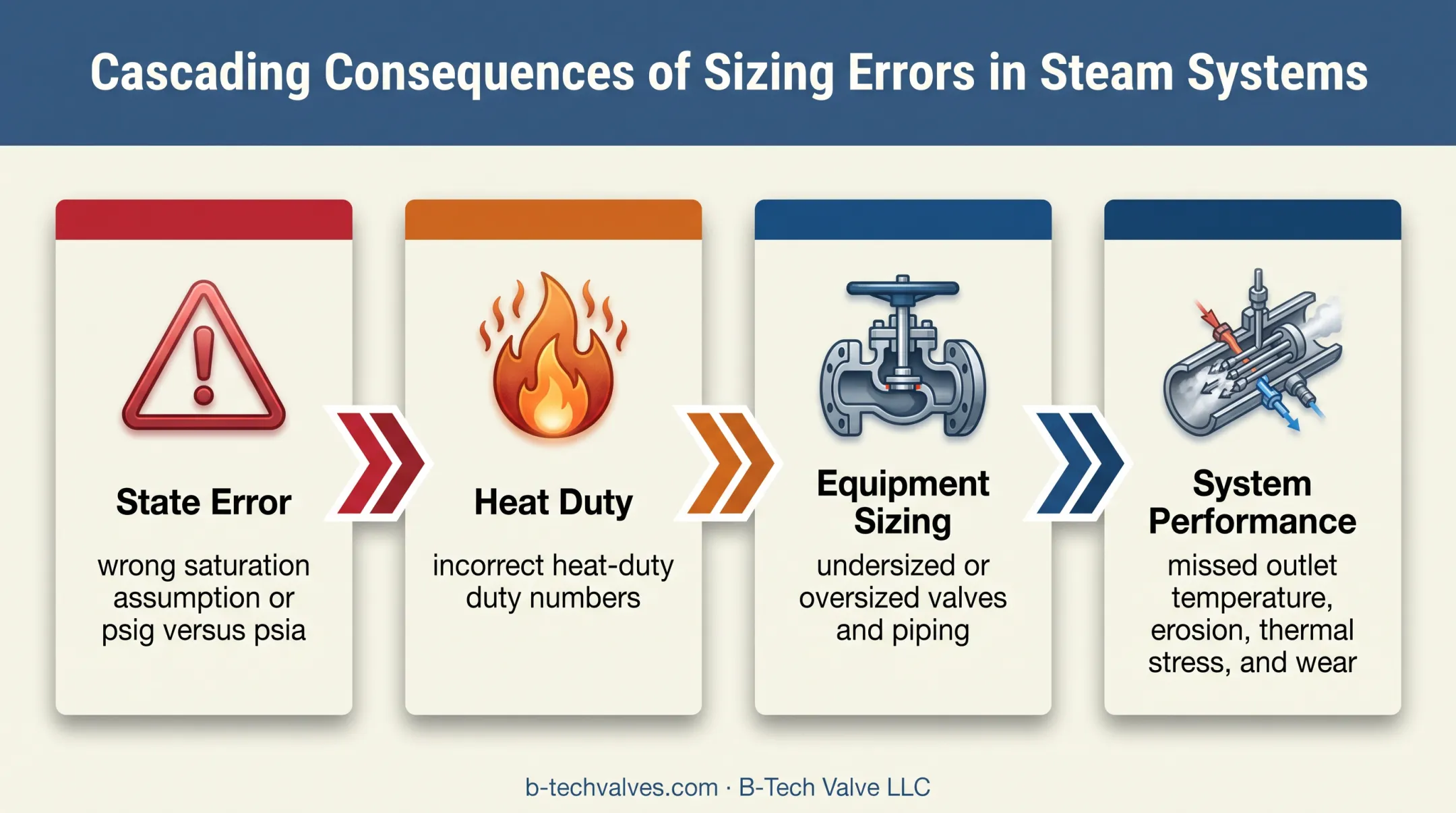

Getting the state wrong (assuming saturation when steam is actually superheated, or confusing psig with psia) cascades into real problems:
- Incorrect heat-duty numbers
- Undersized or oversized valves and piping
- Desuperheaters that can't hit their outlet temperature
Operating near pressure, temperature, or velocity limits compounds the risk, accelerating erosion, thermal stress, and component wear over time.
Conclusion
Saturated steam tables connect pressure and temperature to the enthalpy, entropy, and volume data that steam-system calculations depend on, all in the US customary units engineers actually work in. Reliable results come down to the basics: confirm the steam is actually at saturation, get the pressure basis right, pick the correct property columns, and keep units consistent from lookup to final answer.
Table values are a starting point. Validate them against what your instruments are reading, and loop in application engineering support before finalizing steam-conditioning equipment.
If you're replacing or specifying a desuperheater for a power or process steam line, B-Tech Valve's team can work from your documented operating conditions. With line size, flow, and inlet and target outlet conditions, they can size an LPD or SPAD unit for the application rather than a generic chart entry.
Frequently Asked Questions
What are steam tables used for?
Steam tables provide water and steam property data, such as volume, enthalpy, and entropy, for analyzing heat transfer, boiler performance, turbine cycles, piping design, and steam-conditioning systems like desuperheaters.
How much do steam tables cost?
Options range from free references like the NIST Chemistry WebBook to paid resources such as the ASME International Steam Tables for Industrial Use, priced around $95. Source authority, unit support, and how recent the data is matter more than price.
How long can food stay in a steam table?
That question applies to food-service holding equipment, not industrial saturated steam property data. For food safety, check the FDA Food Code's hot-holding and time/temperature rules rather than thermodynamic steam tables.
What is the difference between saturated steam and superheated steam?
Saturated steam sits exactly at the boiling point for its pressure. Superheated steam is hotter than that saturation temperature at the same pressure and requires separate superheated-steam property data.
What is the difference between psia and psig in a steam table?
Psig measures pressure relative to atmosphere; psia measures it from a true vacuum. Saturation lookups require psia, so confirm which basis your pressure reading uses before pulling any values.
How do you read a saturated steam table?
Identify your known pressure or temperature, then open the matching table. Locate the bracketing rows, select the property columns you need, interpolate if the value falls between entries, and record results with their US units.
