Operators and engineers rely on saturation temperature to judge steam conditions at a glance. Mix up psig and psia, though, and you'll read the wrong temperature off the chart entirely. A gauge reading of 150 psig isn't 150 psia — it's roughly 165 psia once you add atmospheric pressure, and that difference shifts the saturation temperature by several degrees.
This guide walks through a practical psig-based steam temperature chart, the conversion logic behind it, and where the chart's usefulness ends. We'll also cover the operating realities — pressure drop, sensor placement, equipment ratings — that separate a quick reference lookup from an actual engineering decision.
Key Takeaways
- Saturation temperature climbs with absolute pressure, not gauge pressure: convert before you look anything up
- A pressure-temperature chart shows saturation temperature only, not the actual temperature of superheated steam
- Saturated steam is fully defined by pressure and temperature together; superheated steam needs both values plus more
- Treat the chart as a troubleshooting reference, then verify equipment ratings and control needs separately
What Steam Temperature Represents at a Given Pressure
Saturation temperature is the point where water and steam sit in equilibrium at a given absolute pressure: the exact temperature at which boiling or condensing happens. Raise the pressure, and that equilibrium point climbs. Drop it, and the boiling point falls right along with it.
This is why a pressure cooker gets food hotter than 212°F and why steam condenses at lower temperatures in a vacuum.
Steam exists in several distinct states along the way:
- Saturated liquid – water at its boiling point, no vapor yet (quality = 0)
- Wet saturated steam – a liquid-vapor mixture at equilibrium (quality between 0 and 1)
- Dry saturated steam – pure vapor, no liquid droplets remaining (quality = 1)
- Superheated steam – vapor heated beyond its saturation temperature at that pressure
Quality only applies in that middle wet-steam zone. A reading of "95% quality" means 95% of the mass is vapor, the rest still liquid.
Why psig Won't Match a Steam Table
Steam tables are built on absolute pressure, not gauge pressure. Gauge pressure measures relative to the surrounding atmosphere, so you need to add atmospheric pressure back in before the table means anything.
At standard sea-level atmosphere, that conversion is straightforward: psia = psig + 14.696, based on the standard atmosphere value defined by NIST's standard reference.
That 14.696 figure shifts with elevation and weather, though. A plant at altitude or during a low-pressure weather system won't see exactly that number. Field technicians working at non-standard elevations should use local barometric pressure, not the textbook constant.
One more limitation worth stating plainly: pressure alone tells you saturation temperature. It tells you nothing about superheated-steam temperature, enthalpy, or how far above saturation the steam actually sits. You need a separate temperature reading for that.
Factors That Influence the Practical Interpretation
Chart values assume ideal, steady-state conditions. Real steam systems rarely cooperate that cleanly.
A few things that shift field readings away from design values:
- Gauge location: pressure measured upstream of a control valve differs from pressure at the point of use
- Calibration drift: an uncalibrated gauge can be off by several psi without anyone noticing
- Pressure drop: piping friction, elbows, and partially open valves all reduce pressure downstream
- Transient conditions: startup, load swings, and soot-blowing events create short-lived pressure spikes or dips
These shifts matter because downstream equipment is built around expected saturation conditions. Steam traps, rotating seals, turbine blading, and heat-transfer surfaces are all sized assuming a particular steam state at a particular point.
When actual pressure drifts from design pressure, the assumed saturation temperature drifts with it, sometimes enough to matter for seal life or heat-transfer rates.
When steam runs hotter than the process needs, many plants use desuperheating (also called attemperation) to pull the temperature back down by injecting water. Sizing that equipment correctly takes far more than a pressure-temperature chart: flow rate, inlet temperature, target outlet temperature, and piping layout all factor in. We'll get into that later.

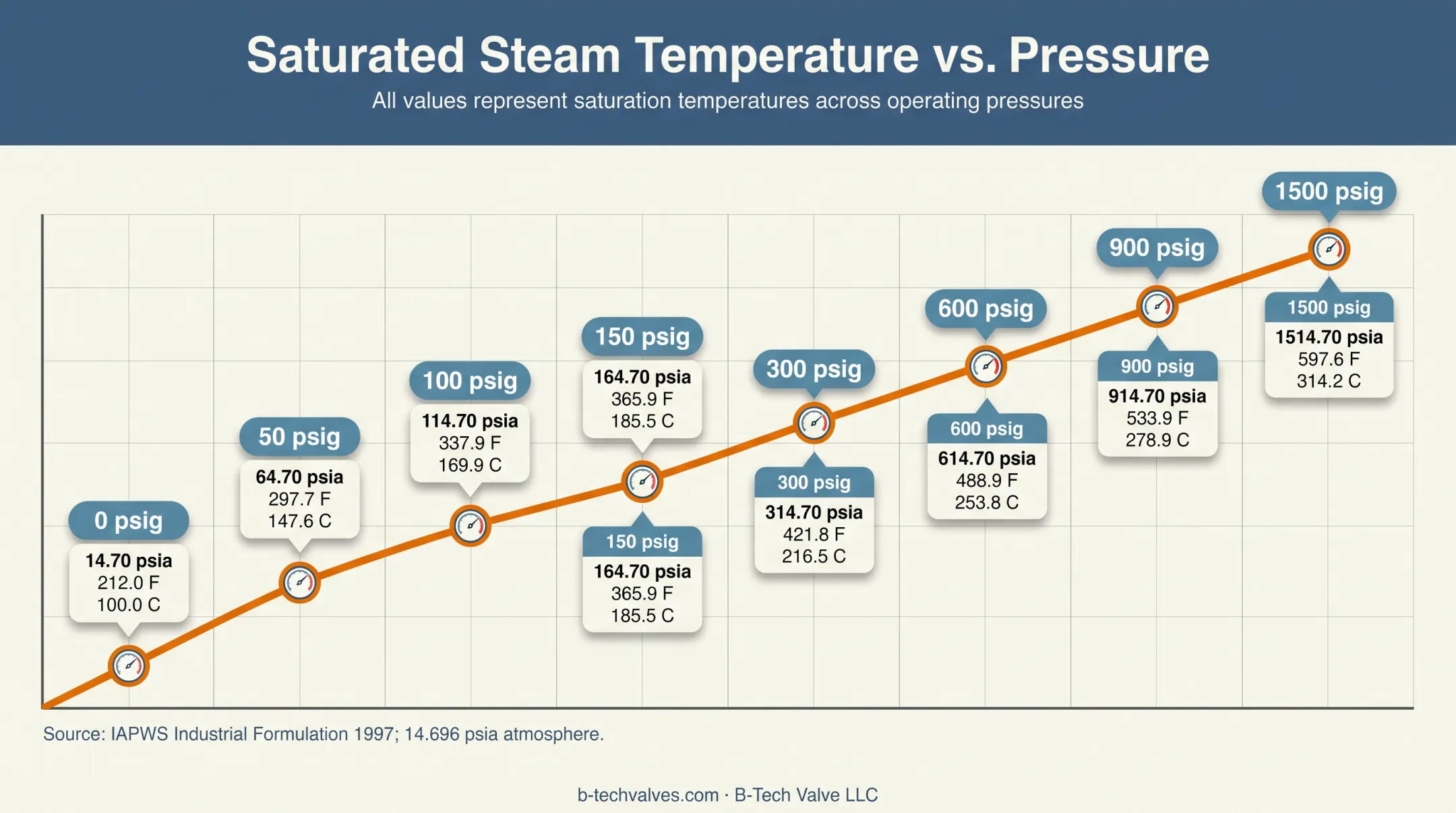

Steam Temperature Chart by Pressure (psig)
The table below lists approximate saturation temperatures for common U.S. industrial pressure points, calculated from the IAPWS Industrial Formulation 1997 steam-property equations at standard atmospheric pressure (14.696 psia). Every value is a saturation temperature (the equilibrium point between liquid and vapor), not a guaranteed operating temperature for your specific line.
| Gauge Pressure (psig) | Absolute Pressure (psia) | Saturation Temp (°F) | Saturation Temp (°C) |
|---|---|---|---|
| 0 | 14.70 | 212.0 | 100.0 |
| 15 | 29.70 | 249.7 | 121.0 |
| 50 | 64.70 | 297.7 | 147.6 |
| 100 | 114.70 | 337.9 | 169.9 |
| 150 | 164.70 | 365.9 | 185.5 |
| 200 | 214.70 | 387.8 | 197.7 |
| 300 | 314.70 | 421.8 | 216.5 |
| 400 | 414.70 | 448.2 | 231.2 |
| 600 | 614.70 | 488.9 | 253.8 |
| 900 | 914.70 | 533.9 | 278.9 |
| 1200 | 1214.70 | 568.8 | 298.2 |
| 1500 | 1514.70 | 597.6 | 314.2 |
Sample reading: Say your gauge shows 125 psig. Convert first: 125 + 14.696 ≈ 139.7 psia. That sits between the 100 psig and 150 psig rows above.
Interpolating between 337.9°F and 365.9°F gives an approximate saturation temperature of 352°F, close enough for field troubleshooting. Pull the exact figure from a full steam table for anything safety-critical.
A couple of guardrails:
- Don't extrapolate past 1500 psig using this table. Near the critical point (about 3,208 psia), the pressure-temperature relationship behaves differently, and approximations break down fast.
- Non-condensable gases in the system throw off these numbers too — the table assumes pure water and steam.
Pressure Range and Boundary Conditions
"Low-pressure," "medium-pressure," and "high-pressure" steam mean different things depending on who you ask. There's no single industry-wide cutoff. One university utility specification, for example, defines its own system with low-pressure steam around 20 psig, medium-pressure around 155 psig, and high-pressure around 500 psig — but that's a facility-specific convention, not a universal code.
A few terms get used loosely and need clear separation:
- Nominal operating pressure: the pressure the system normally runs at
- Design pressure: the maximum pressure the system is built to handle safely
- Set pressure: the pressure at which a relief valve is calibrated to open
- Saturation pressure: the pressure that corresponds to a given saturation temperature
None of these are interchangeable, even though they often land in the same ballpark on a well-designed system.
A few conditions push you past simple chart lookups entirely: superheated steam, flashing flow, rapid pressure reduction, wet-steam quality calculations, and two-phase flow. Any of these call for a full property calculation or steam-table software, not a quick psig lookup.
Technical Properties, Measurement, and Application
A pressure-temperature lookup is really a shorthand for a handful of properties engineers care about: saturation temperature, pressure, steam quality, enthalpy, specific volume (or density), and degree of superheat. The chart only gives you the first two directly.

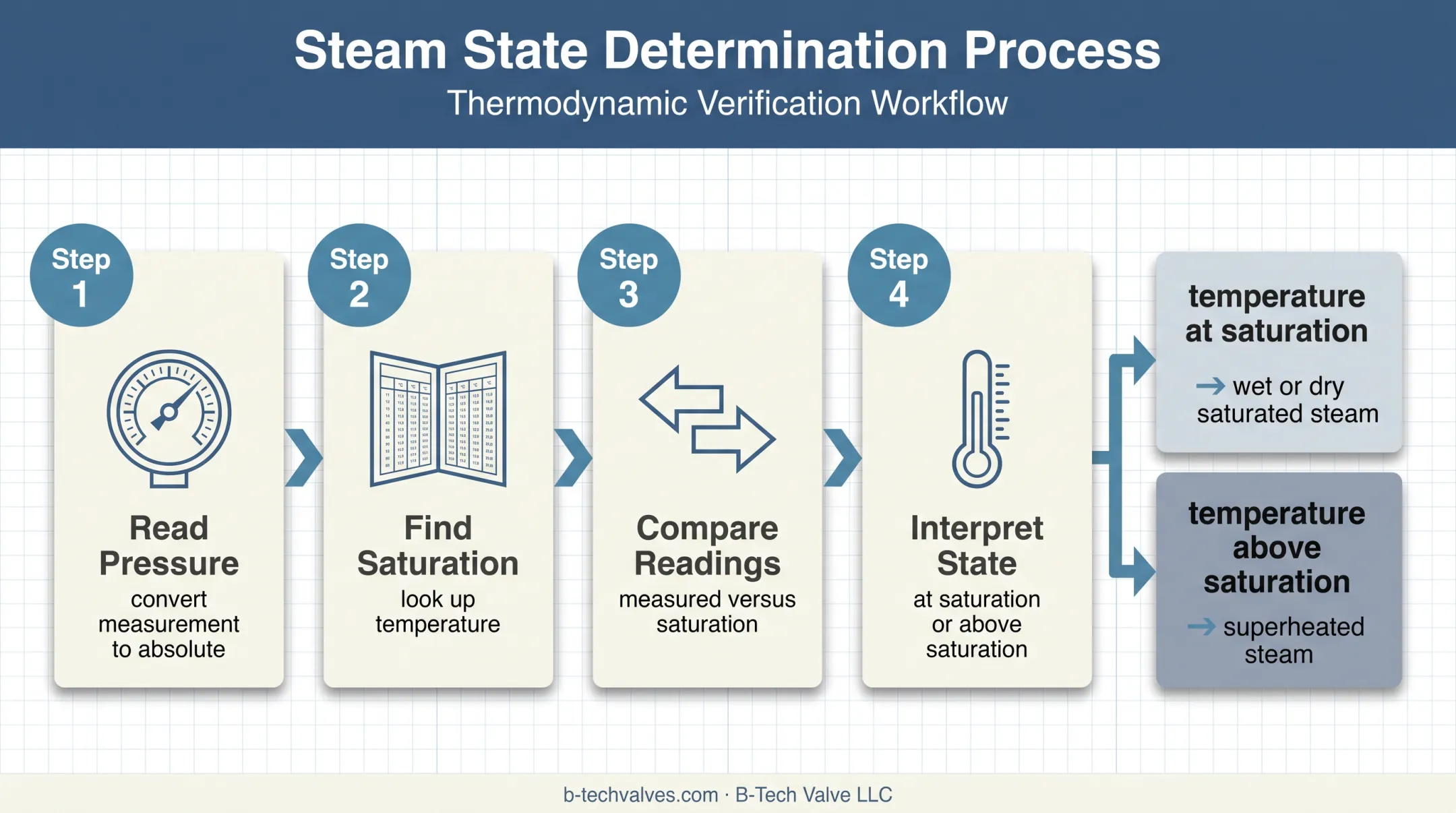

Determining which state you're actually in takes both a pressure gauge and a temperature sensor working together:
- Read pressure at the measurement point and convert to absolute
- Look up saturation temperature for that pressure
- Compare against the actual measured temperature
- Interpret: measured temp at saturation suggests wet or dry saturated steam; measured temp above saturation confirms superheat
Sensor placement matters more than most people expect. Thermowells need adequate immersion depth and correct orientation to avoid flow-induced stress, per guidance in ASME's thermowell standard.
Response time, calibration drift, and heat loss through the sensor housing all introduce error too. A sensor reading that's "close enough" for trending can be off by enough degrees to matter for a tight control loop.
Chart Data Isn't Equipment Rating Data
Here's a distinction that trips people up constantly: saturation temperature from a chart is not the same thing as a pressure class rating or a material temperature limit.
ASME B16.34 pressure classes, gasket temperature limits, and control-valve specifications are rated independently of whatever your process happens to be running at. Check them separately. Don't assume chart values and equipment limits line up just because they're both expressed in psi and degrees.
If you're publishing or relying on a chart like this, document where it came from: the steam-table source, the pressure basis (psig vs. psia), the units, and the reference atmospheric pressure assumed. That paper trail matters when someone questions a number six months later.
Where Desuperheaters Fit In
This is the point where a lot of plants realize a chart alone won't finish the job. If superheated steam needs to come down to a controlled outlet temperature, you're sizing a desuperheater or attemperator. That calculation needs:
- Pressure and flow rate
- Inlet temperature and target outlet temperature
- Line size
- Spray-water quality
- Control response requirements
B-Tech Valve's application-engineering process reflects that reality. The company's LPD Large Pipe Desuperheater handles steam lines 6 inches and larger using a probe-type, variable-nozzle actuated assembly. The SPAD Small Pipe Attemperator Desuperheater serves 4-inch and smaller lines with a fixed-nozzle spray-ring design paired with a separate temperature-control valve.
Both are rated up to 1200°F and offered across ASME B16.34 pressure classes 150 through 2700. Selecting the right one starts with full operating data, not a pressure-temperature lookup.

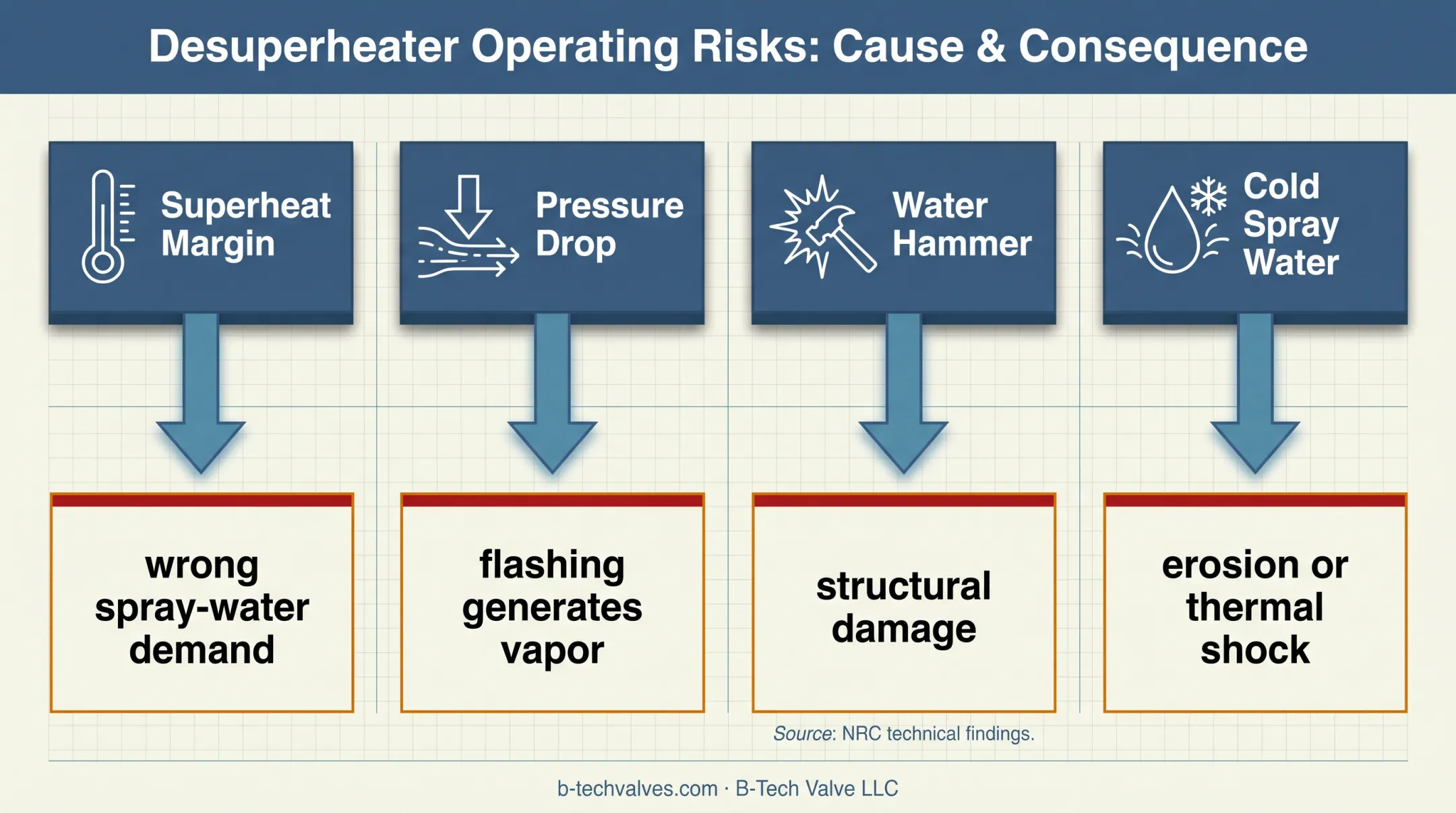

Implications of Using the Chart Incorrectly
Treating saturation temperature as if it's the actual temperature everywhere in a system causes real problems, not just theoretical ones.
Common misreadings include:
- Confusing psig with psia and pulling the wrong saturation temperature
- Reading a saturated-steam chart for a line that's actually running superheated
- Treating a nominal operating pressure as if it were an equipment rating limit
- Assuming there's one "correct" temperature that applies to every steam process
Each of these creates a concrete process risk. Misjudging superheat margin can mean spray-water demand gets calculated wrong in an attemperator loop, throwing off the actual outlet temperature. Ignoring pressure drop through piping can mask flashing, where liquid dropping below its saturation pressure suddenly generates vapor, a condition that erodes piping and destabilizes control.
Water hammer deserves particular attention here. NRC technical findings document cases where condensate slugs formed in unwarmed lines and struck closed valves hard enough to cause structural damage. A pressure-temperature chart won't flag that risk: it doesn't account for drainage, line warm-up sequence, or valve-opening rate.
Poor atomization in desuperheater applications creates a related hazard: unevaporated water droplets can erode downstream piping or cause thermal shock where cold spray water contacts hot metal unevenly.
None of this is a reason to avoid the chart. It's a reason to treat it as a starting point. Safety systems, relief-valve sizing, and equipment selection all require the applicable design codes and a qualified engineering review, not a lookup table, no matter how accurate the table is.
Conclusion
A steam temperature chart by psig does one job well: it tells you the saturation temperature for a given absolute pressure, assuming you've converted correctly and you're actually looking at saturated steam. That's genuinely useful for quick field checks and troubleshooting.
The chart is only one input. Real steam-system decisions need pressure, temperature, quality, flow rate, equipment ratings, and operating transients considered together, not in isolation.
If your plant needs superheated steam conditioned before it reaches sensitive equipment, that is a sizing conversation rather than a chart-reading exercise.
B-Tech Valve's application engineering team works through those specifics for power and process plants needing LPD or SPAD desuperheater solutions. Reach out at Sales@B-TechValves.com or 609-321-2205 to talk through your operating conditions.
Frequently Asked Questions
What is the saturation temperature of steam at a given pressure (psig)?
It's the temperature at which steam and water sit in equilibrium at that pressure, but you have to convert psig to psia first. The chart value represents saturation only: it won't tell you the temperature of superheated steam at that same pressure.
What is the relationship between steam pressure and temperature?
Saturation temperature rises as absolute pressure rises, and falls as pressure drops. This relationship applies specifically to phase-equilibrium conditions. Superheated steam breaks that direct link since temperature can climb independently of pressure.
What pressure ranges define low-, medium-, and high-pressure steam?
There's no single industry standard. Classifications vary by facility and application. One university power plant specification uses roughly 20, 155, and 500 psig as rough boundaries, but other plants define these differently.
How hot can steam get under pressure?
Saturation temperature sets the boiling point at a given pressure, but superheated steam can run well above that once additional heat is added. The upper limit depends on your boiler design and heat input, not pressure alone.
What is the correct temperature for a steam table?
There isn't one universal "correct" temperature. The value you need depends on the pressure, whether the steam is saturated or superheated, and which property you're trying to calculate.
