Variable Nozzle Desuperheaters

Nozzle classifications vary by design and application, so the appropriate answer depends on the desuperheater arrangement being discussed. B-Tech Valve’s LPD product uses a probe-type variable nozzle with a fully actuated control valve. The company also offers a spray-ring design in its broader desuperheater range, with selection based on pipe size and steam-system requirements.

The terms are often used for closely related steam-conditioning equipment. Both an attemperator and a desuperheater introduce water into steam to reduce temperature. In practice, “attemperator” commonly describes the temperature-control function, while “desuperheater” describes equipment that removes superheat. B-Tech Valve supplies application-engineered steam and gas desuperheater and attemperator valves.

A variable nozzle desuperheater regulates spray-water injection through a nozzle arrangement that changes with operating demand. This allows controlled steam-temperature reduction across changing system conditions. B-Tech Valve’s LPD is a probe-type variable nozzle design that combines a fully actuated control valve and desuperheater assembly for large steam piping.

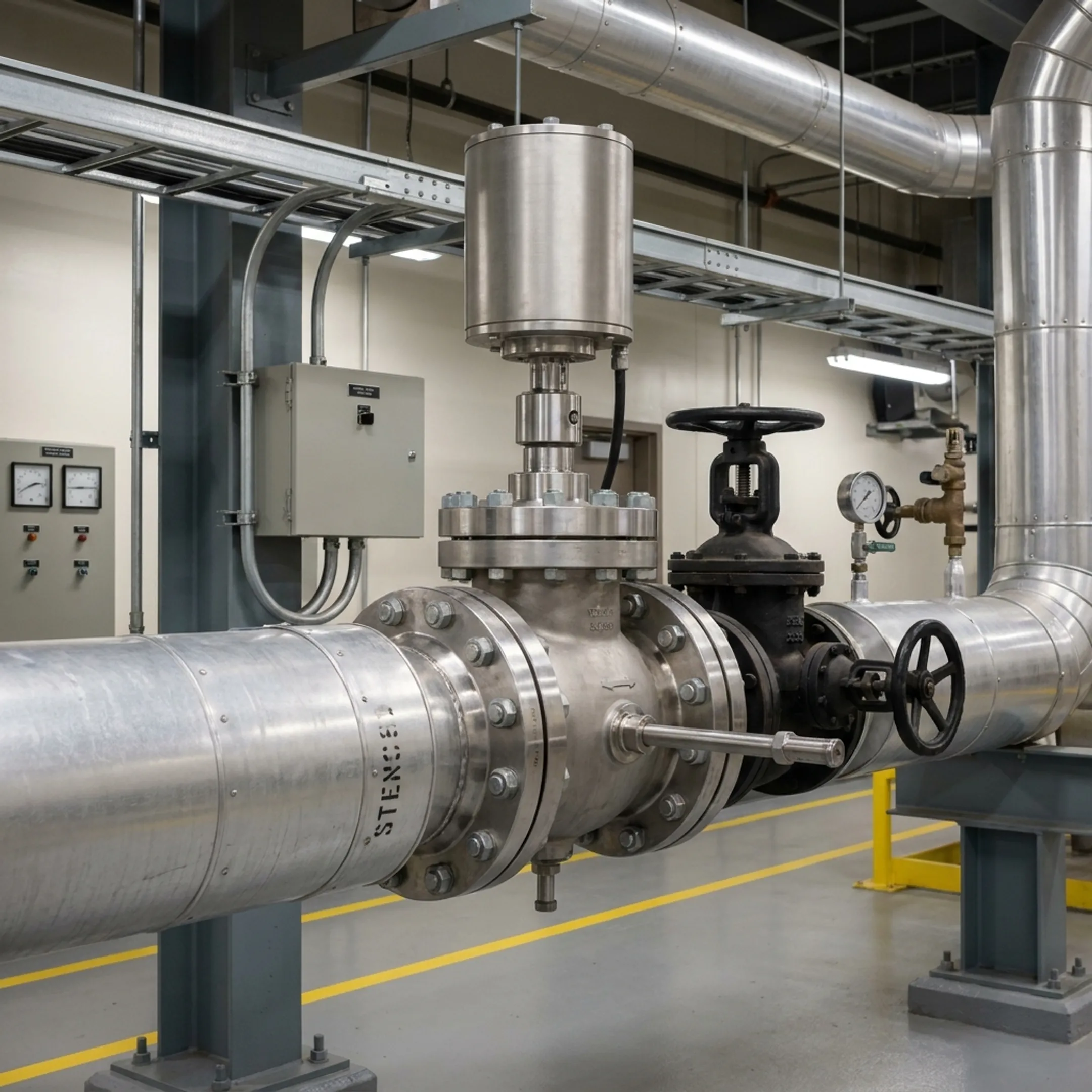

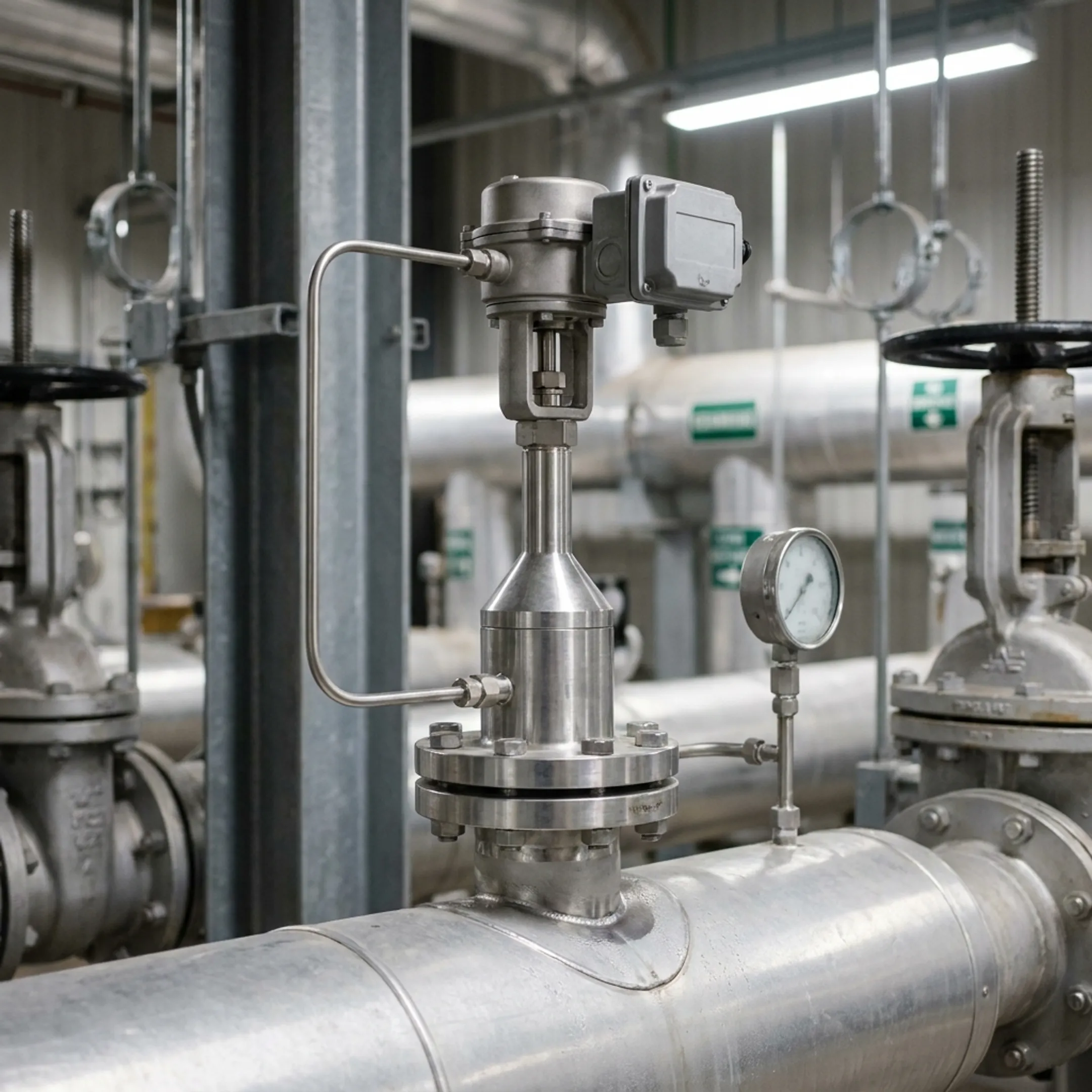

Variable nozzle desuperheaters are used in power plants and process plants where superheated steam must be conditioned for heat transfer, equipment protection, or process use. Applications can include increasing steam heat-transfer capability, protecting piping and steam traps, protecting rotating seals, increasing steam flow, decreasing boiler loads, and reducing fuel costs.

The LPD Large Pipe Desuperheater is designed for flanged insertion at 90 degrees on the steam pipe. It is intended for pipe sizing of 6 inches and larger and uses a probe-type variable nozzle control valve and desuperheater arrangement. Final selection should consider the steam system, operating conditions, pressure class, temperature, and installation requirements.

Selection typically requires the steam-pipe size, operating pressure and temperature, steam-flow requirements, desired outlet condition, spray-water information, connection details, and the intended application. B-Tech Valve can use these system details to guide selection of an application-sized unit and identify the appropriate design, pressure class, and temperature rating.
