A 2012 survey of combined-cycle plants found attemperator control instability in 47% of units reporting issues, alongside startup temperature excursions in 29%, according to CCJ's outage handbook. Those aren't rare edge cases. They're common enough that every plant engineer should have a repair-versus-replace framework ready before the next failure happens.
The right call depends on more than the first quote you get. Valve condition, steam service severity, parts availability, repair scope, installation effort, lead time, and the cost of downtime all factor in. This article walks through the comparison, the warning signs, and what to gather before you request a recommendation either way.
Key Takeaways
- Repair makes sense when the pressure boundary is sound, the failure is isolated, and parts are available within your outage window
- Replacement wins out with severe erosion, recurring failures, obsolete parts, incorrect sizing, or an unsuitable design
- Compare total lifecycle cost and operational risk, not just repair price versus replacement price
- Gather steam conditions, spray-water data, line size, and control objectives before requesting a replacement quote
- Bring in an application-engineered desuperheater specialist when sizing, atomization, or temperature control is in question
Steam Control Valve Repair vs Replacement: Quick Comparison
Neither path is automatically cheaper or faster. Here's how the two options stack up across the factors that actually matter.
| Factor | Repair | Replacement |
|---|---|---|
| Cost | Lower initial quote, but teardown often reveals extra damage, parts, and labor | Higher upfront price, with more predictable scope and warranty coverage |
| Downtime | Removal, shipping, inspection, parts wait, repair, reinstall, and retest | A stocked unit can shorten the outage, but engineering review still takes time |
| Condition | Works when the body and pressure boundary remain structurally sound | Needed when erosion, cracking, distortion, or repeat leakage compromise integrity |
| Parts/support | Depends on whether trim, seats, nozzles, and spray components are still obtainable | Resolves obsolete-parts risk with a currently supported design |
| Application fit | Only solves the problem if it addresses the actual root cause | Lets you re-size pressure class, materials, and control range for real conditions |
The cost column deserves a closer look. A repair quote generated before disassembly is a starting point, not a final number. Valve Magazine's industry coverage notes that late or incorrect parts, expedited shipping, and additional findings after teardown are routine schedule risks, on both the repair and replacement sides.
Downtime works the same way. A valve shipped out for repair means waiting on a facility's queue, inspection, a parts order, and then transit back before reinstallation. A stocked replacement can skip most of that, provided it matches your line size, pressure class, and connection type without field modification.
What Are Repair and Replacement Options for Steam Control Valves?
What Does Steam Control Valve Repair Involve?
Repair means inspecting, cleaning, machining, and replacing damaged or worn components while keeping the existing valve body, or at least a significant portion of the assembly. Common repair candidates in steam service include:
- Seats, plugs, and stems
- Packing and gaskets
- Actuators and positioners
- Spray nozzles and spray rings
- Instrumentation and calibration components
Repair quality shows up directly in operational results: restored shutoff, stable modulation, accurate steam temperature control, and protection of downstream piping, steam traps, and rotating seals. A rushed or incomplete repair tends to reappear as the same failure a few months later.

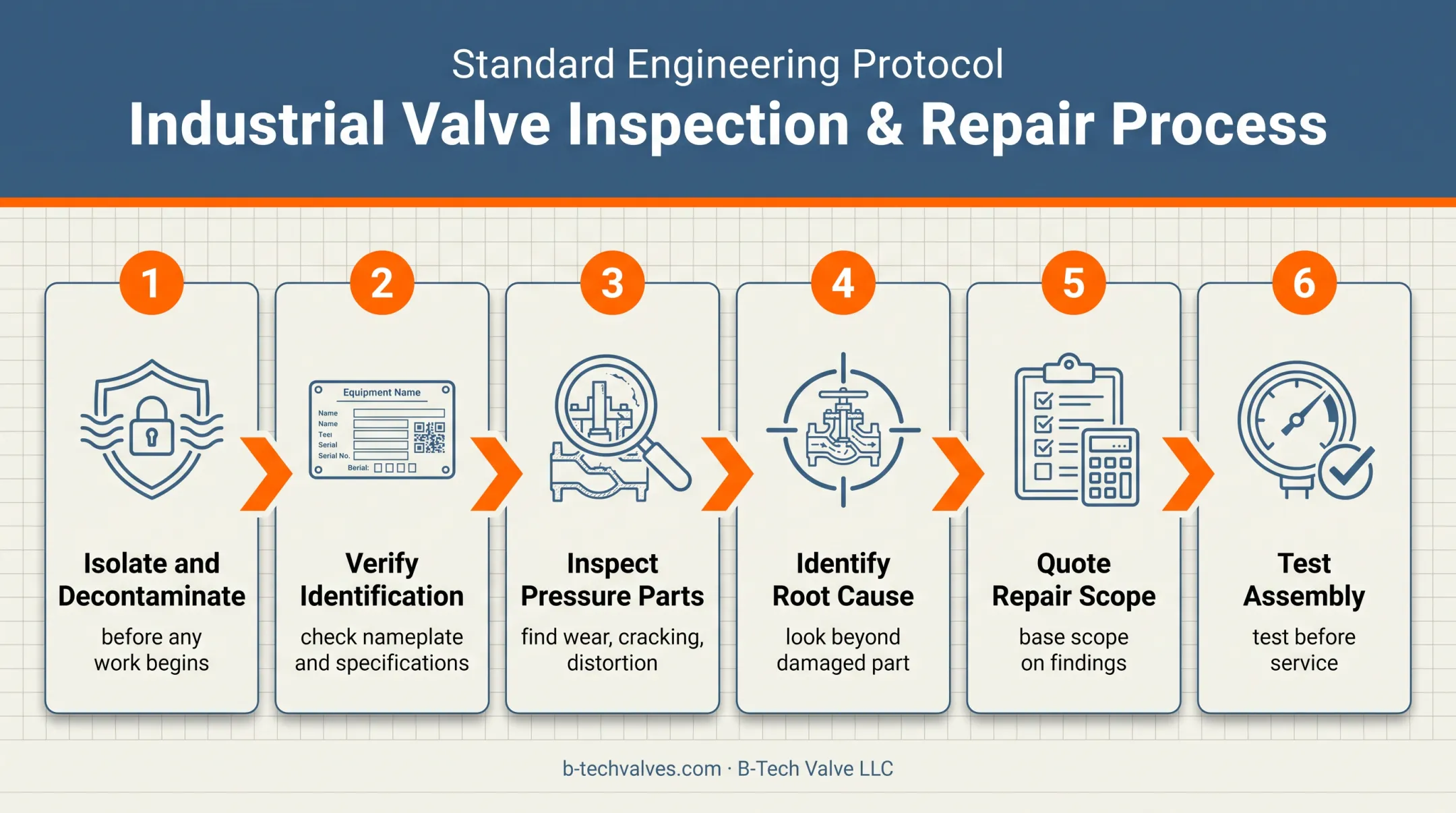

A sound repair sequence follows a set order:
- Isolate and decontaminate the valve before any work begins
- Verify identification against nameplate data and original specifications
- Inspect pressure-retaining parts and internals for wear, cracking, or distortion
- Identify the root cause, not just the damaged part
- Quote the repair scope based on inspection findings
- Test the completed assembly before returning it to service
Common Steam Control Valve Repair Scenarios
These issues are typically repairable once you've confirmed steam and water conditions haven't changed:
- Localized erosion and worn trim
- Packing leakage and actuator problems
- Debris-related sticking and calibration drift
Industry guidance on desuperheater nozzles points to wear, corrosion, erosion, and particulate blockage as the usual culprits behind degraded spray performance.
But repeated failure often signals something bigger than a worn part. Incorrect sizing, poor water quality, inadequate atomization, excessive velocity, or faulty installation can keep producing the same damage no matter how many times you swap components. In those cases, a system-level correction, not another repair cycle, is what actually fixes things.
What Does Steam Control Valve Replacement Involve?
Replacement means removing the existing assembly and installing a new valve, desuperheater, attemperator, actuator, or complete control package sized for current operating conditions. It tends to be the better path when you're facing:
- Damaged pressure boundaries
- Obsolete or unavailable components
- A repair history that keeps repeating itself
- Unacceptable leakage or poor controllability
- Repair lead times that blow past your outage window
- A fundamental mismatch between the valve and the process
A replacement specification needs to cover:
- Steam flow range, plus inlet and outlet pressure and temperature
- Required outlet temperature and spray-water pressure and quality
- Pipe size, connection type, materials, pressure class, and temperature rating
- Actuator requirements, control signal, and fail position
Skip any of these and you risk ordering a unit that fits the flange but doesn't solve the problem.
Application-engineered options close that gap. B-Tech Valve's U.S.-made desuperheater line includes:
- LPD for steam pipes 6 inches and larger: a probe-type, variable-nozzle, fully actuated control valve and desuperheater installed through a 3-inch flanged insertion
- SPAD for steam pipes 4 inches and smaller: a spray-ring-type, fixed-nozzle desuperheater that works with a separate temperature-control valve
Both are built around ASME B16.34 pressure classes 150 through 2700, with service up to 1,200°F.
Steam Control Valve Repair vs Replacement: What Is Better?
There's no universal winner here. The decision balances safety, process performance, lifecycle cost, outage duration, parts availability, and the consequence of another failure.
Repair is usually the stronger candidate when:
- The pressure boundary is sound and damage is localized
- The valve was correctly sized to begin with
- Replacement parts are available on a reasonable timeline
- The repair scope is well defined after inspection
- Testing can realistically finish within the planned outage
Replacement is usually the stronger candidate when:
- Inspection reveals major body or pressure-boundary damage
- Repairs have been tried before without lasting results
- Parts are obsolete or supplier support is uncertain
- Controllability or leakage issues are chronic, not occasional
- The repair estimate approaches the cost and risk of a new, supported unit
A common industry rule of thumb says repair makes sense below roughly 50% of a new valve's cost. Valve Magazine's repair coverage treats that figure as a starting point, not a fixed formula. The threshold also leaves out operational risk, which matters as much as the dollar amount.

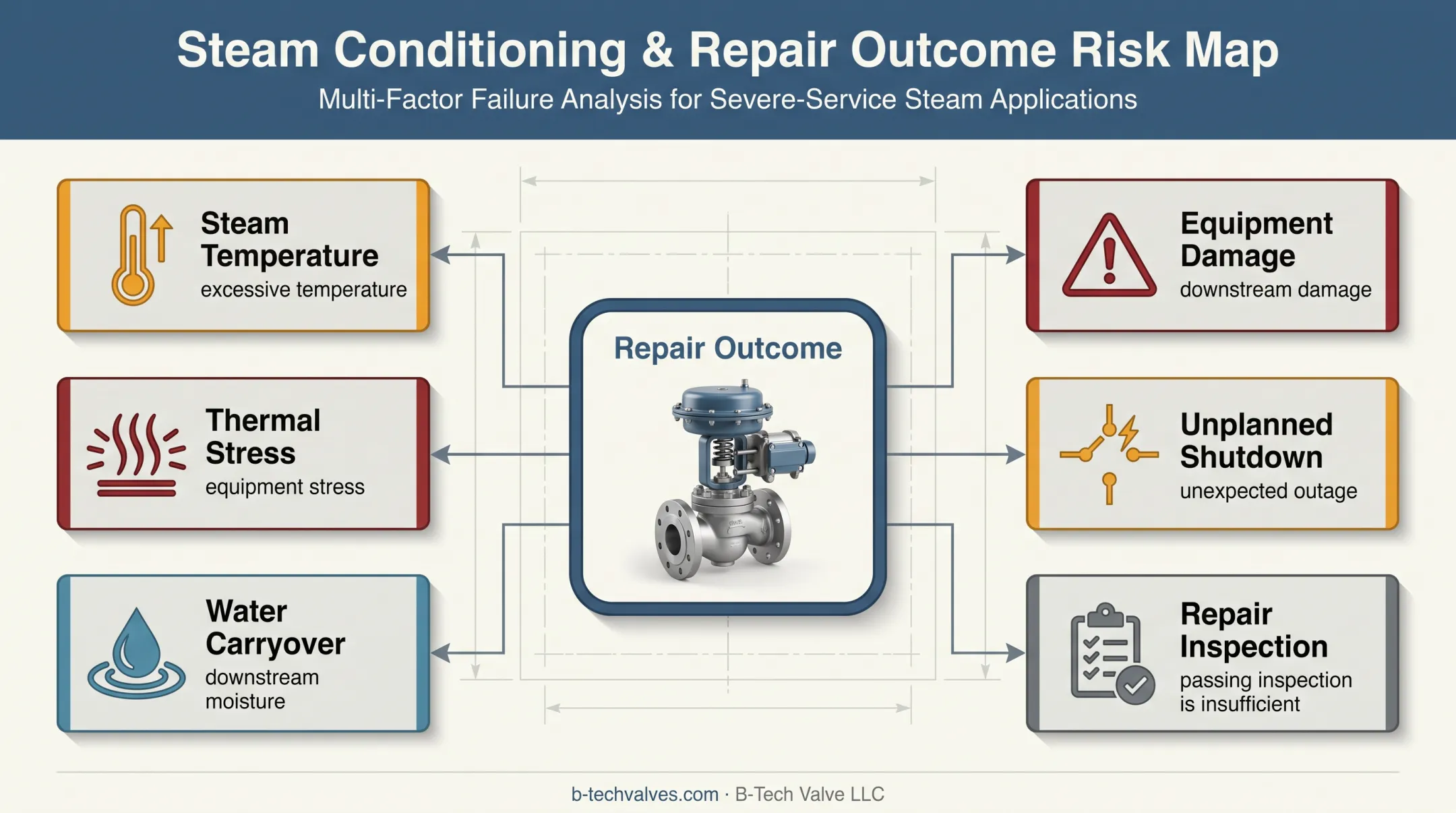

That risk includes excessive steam temperature, thermal stress, water carryover, downstream equipment damage, and the possibility of an unplanned shutdown. A valve that "passes" a repair inspection but can't hold tight control under real load conditions hasn't actually solved anything.
Before deciding, work through this checklist:
- Identify the valve and the service it's in
- Document the failure symptoms in detail
- Review the maintenance history for repeat patterns
- Get an inspection-based repair scope, not a desktop estimate
- Verify replacement availability and delivery dates
- Require functional testing before startup, regardless of which path you choose
If you're not sure whether you're looking at component wear or an application mismatch, share the valve nameplate, line size, operating conditions, and failure history with B-Tech Valve for an application-focused review.

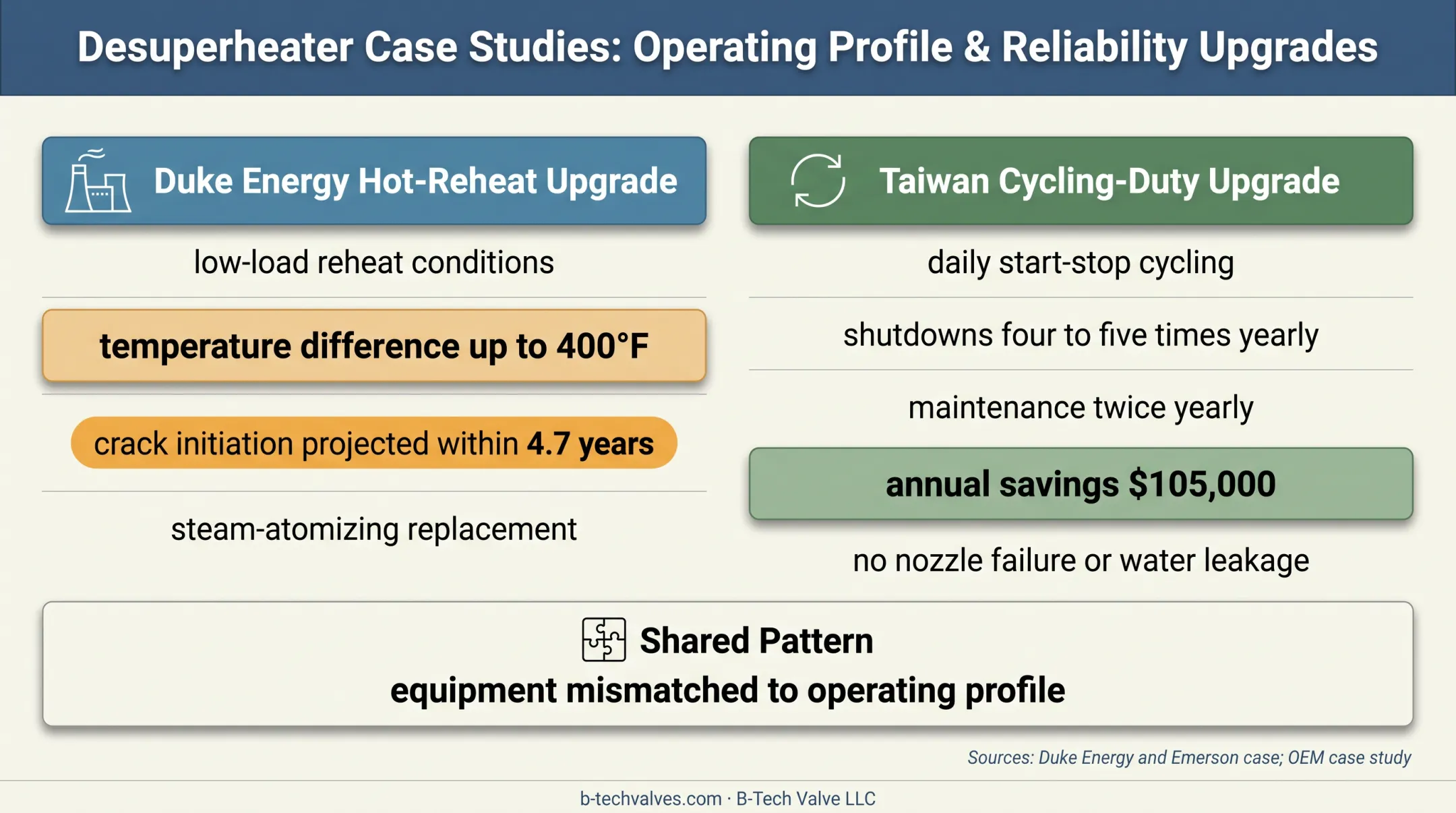

Real-World Examples and Case Studies
The replacement case: Duke Energy's hot-reheat upgrade. At a North Carolina combined-cycle plant, low-load operation produced reduced reheat steam flow and pressure while spray-water demand stayed high. Downstream thermocouples recorded a temperature difference of up to 400°F at an elbow 21 feet from the attemperator, and analysis projected crack initiation within 4.7 years if nothing changed.
Duke and Emerson developed a steam-atomizing design to replace the existing ring-style spray nozzles, reusing the same nozzle housing but correcting atomization at low load. A second unit at the plant later received a complete attemperator replacement.
Another replacement case: a Taiwan gas-fired plant's cycling problem. An OEM case study describes a desuperheater subjected to extreme thermal cycling from daily start-stop operation, with spray water dripping into the downstream pipeline and shutdowns occurring four to five times a year. After reviewing site conditions, the plant installed a custom low-flow, cycling-duty unit. Reported results:
- Maintenance dropped to twice a year
- Annual savings of $105,000
- No further nozzle failure or water leakage
The pattern across both cases: the original equipment wasn't necessarily defective. It was mismatched to the actual operating profile: low-load reheat conditions in one case, constant cycling in the other. Repair would have replaced worn parts without touching the underlying cause. Replacement with application-matched equipment is what broke the failure cycle.
Repeated failures usually point to a design mismatch, and no amount of re-machining fixes that. Replacement is not automatic, but it is the right move when the duty no longer matches the original design. If your valve's failure history looks like either of these cases, call B-Tech Valve at 609-321-2205 or email Sales@B-TechValves.com with your steam conditions and failure record before you commit to another repair cycle.
Conclusion
Repair a steam control valve when inspection confirms a sound, correctly sized assembly with a repair scope you can actually define and support. Prioritize replacement when condition, performance, parts availability, or lifecycle risk makes that repair outcome uncertain.
Either way, the decision affects more than this one valve. It touches temperature control, downstream equipment protection, outage execution, and your total operating cost over the next several years. Base the call on documented inspection findings and real application data, not just the number on the first quote you receive.
Frequently Asked Questions
What is the first step in servicing a valve?
Make the system safe first. Isolate and depressurize the line, decontaminate the valve, verify nameplate data against specifications, and document failure symptoms before any disassembly.
Can a valve body be rebuilt?
Some valve bodies can be rebuilt or machined if the pressure boundary is still in acceptable condition. A qualified inspection must first verify damage, wall loss, distortion, and material condition against code requirements.
What is the purpose of a control valve?
A control valve modulates flow, pressure, temperature, or another process variable based on a control signal. In steam service, it helps maintain required conditions and protects downstream equipment.
How do I know whether my steam control valve needs repair or replacement?
Weigh failure severity, pressure-boundary condition, repair history, parts availability, sizing accuracy, and controllability together. Then compare the total cost and risk of each path, not just the sticker price.
Is repairing a steam control valve always cheaper than replacing it?
Not necessarily. Repair often starts cheaper but can climb once inspection reveals extra damage, shipping and labor add up, or the same failure recurs. Compare the full lifecycle and outage cost, not the initial quote alone.
What information is needed to size a replacement steam control valve?
Provide steam flow range, inlet and outlet pressure and temperature, required outlet temperature, and spray-water conditions. Also include pipe size, connection type, materials, pressure class, actuator and control requirements, and operating history.
