Temperature alone doesn't decide whether packing holds. Pressure, steam chemistry, thermal cycling, valve design, stem condition, emissions rules, and installation quality all factor into whether a gland seals for years or fails in months.
This guide covers what packing does inside a steam valve, how graphite and PTFE compare for high-temperature service, other material and construction options, a practical selection process, and maintenance practices relevant to U.S. power and process facilities.
Key Takeaways
- Steam-valve packing must seal through heat, pressure, and thermal cycling, not temperature resistance alone
- Graphite often rates higher for steam temperature; PTFE offers chemical resistance and lower friction with tighter limits
- Braid type, gland loading, and installation technique affect leakage as much as base packing material
- Confirm operating limits against manufacturer datasheets, plant procedures, and standards before specifying
- Live-loaded glands can maintain seal force through thermal cycling, subject to valve manufacturer confirmation
What Valve Packing Does in a Steam Valve
Valve stem packing is a set of rings, or a continuous formed length of material, compressed into the stuffing box around the moving stem. Its job: keep process steam from escaping along the stem while letting the stem move freely.
How Compression Creates the Seal
A gland follower, gland nuts, or bolting squeeze the packing axially inside the stuffing box. That compression forces the material to expand radially, pressing inward against the stem and outward against the stuffing-box wall.
Garlock's packing manual describes this axial-to-radial conversion as the basic mechanism behind every compression-packed stem seal. It calls for centered, even gland loading rather than tightening one side more than another.
Packing vs. the Valve's Closure Element
Packing and the valve's internal closure element do two different jobs:
- Packing controls leakage along the stem, between the stem and stuffing box
- The disc, plug, gate, or ball controls flow through the valve body
A valve can seat perfectly and still leak steam at the gland. Tight packing, in turn, says nothing about whether the seat is holding. Treat the two as separate inspection points.
What Packing Needs to Deliver in Steam Service
High-temperature steam packing has to perform on four fronts:
- Resilience – it springs back after compression instead of staying flat once loaded
- Resistance to the medium – it tolerates the steam, condensate, and boiler-treatment chemistry it contacts
- Mechanical strength – it holds together under gland pressure and stem friction without crumbling or extruding
- Correct installation – even the right material fails if rings are cut wrong or loaded unevenly
Packing loosens, hardens, wears, or extrudes as a valve cycles through temperature swings and repeated strokes. That's the expected result of thermal expansion and friction acting on a compressible material over thousands of cycles, not necessarily a defect.
Packing is also only one piece of the sealing system. A scored stem, pitted stuffing box, corroded gland hardware, or misaligned gland can cause leakage even when the packing itself is correct for the job.
Why High-Temperature Steam Service Is Challenging
High temperature physically changes packing under load. Heat drives thermal expansion, relaxation, lubricant loss, oxidation, and hardening. Each of those shifts alters friction between the stem and the packing rings.
Thermal Cycling and Load Loss
Startup, shutdown, load swings, and intermittent operation all put packing through repeated expansion and contraction. Valve Magazine's live-loading article explains that this cycle, combined with creep and vibration, gradually reduces the compressive force holding packing against the stem. Once force drops below the sealing threshold, steam finds a path out.

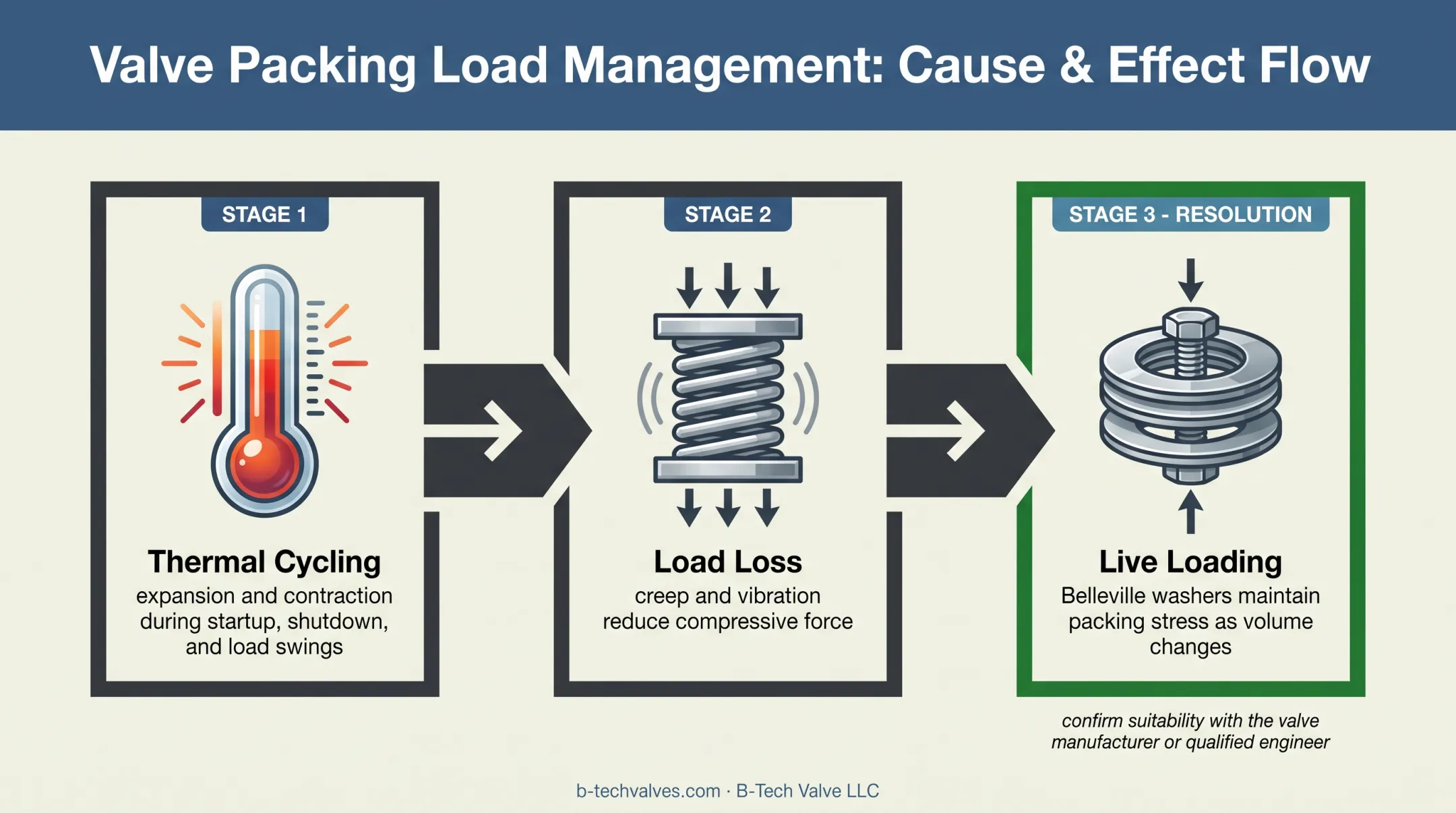

This is the engineering case for live-loaded glands in cyclic service: spring elements, commonly Belleville washers, keep pushing on the packing as it loses volume instead of relying on a fixed bolt torque that was only correct on day one.
Beyond Temperature: Pressure, Movement, and Chemistry
A temperature rating alone tells you almost nothing about how packing will perform in your valve. Also assess:
- Steam pressure and fluctuations – higher, more variable pressure increases extrusion risk at the stem interface
- Valve movement and stem speed – frequent cycling or fast strokes wears packing differently than mostly static service
- Vibration – nearby rotating equipment loosens gland hardware over time
Steam Chemistry Factors That Need Engineering Review
Several steam-system conditions deserve a closer look before packing is specified:
- Wet steam or entrained condensate
- Boiler-treatment chemicals and other contaminants
- Oxygen exposure, since some graphite grades carry chemical-compatibility exceptions for strong oxidizers
- The possibility of flashing or rapid phase change near the valve
None of these should be judged from a generic temperature chart. Pull current manufacturer documentation for the specific graphite grade, or any low-emissions or live-loading system under consideration, and check it against applicable standards.
Packing performance also depends on the rest of the steam system. Keeping steam at the right temperature and quality before it reaches downstream valves helps protect piping, traps, and rotating seals. B-Tech Valve's application engineering team addresses that system-level issue when desuperheating or attemperation is part of the design.
Graphite, PTFE, and Other Valve-Packing Materials
Flexible Graphite for High-Temperature Service
Flexible graphite shows up often in high-temperature steam valve specs: it conforms to stem and bore irregularities, runs with low friction, tolerates heat well, and maintains contact through thermal movement.

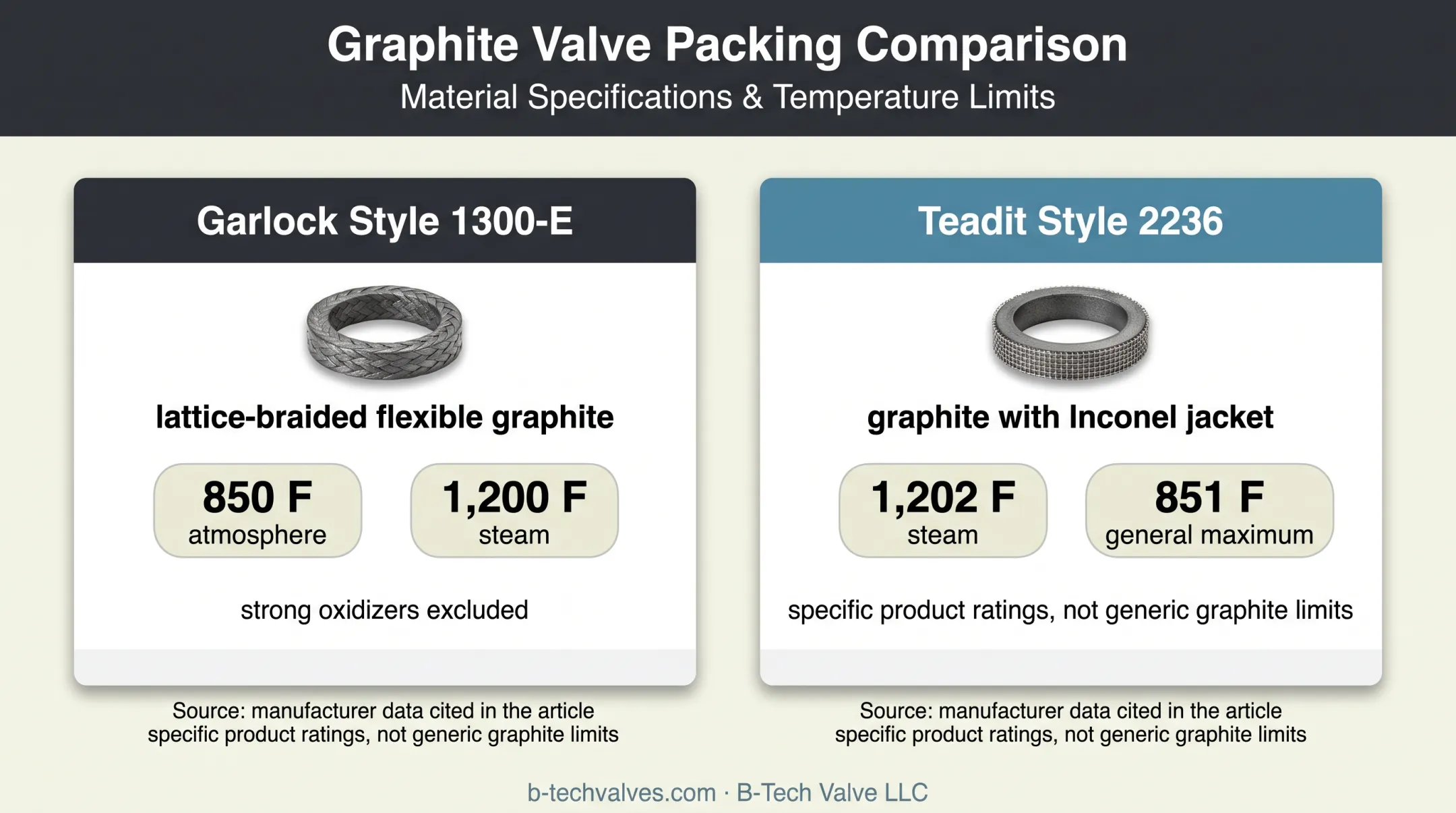

Manufacturer data illustrates the range. Garlock's Style 1300-E, a lattice-braided flexible graphite, is listed for 850°F in atmosphere and 1,200°F in steam, with strong oxidizers excluded from its stated pH range. Teadit's Style 2236, graphite reinforced with an Inconel wire jacket, carries a catalog rating up to 1,202°F in steam alongside a lower general maximum of 851°F.
Those figures describe specific products, not generic graphite limits. Verify exact service limits, oxidation restrictions, and compatibility data from the current datasheet for whatever grade you're buying.
PTFE: Where It Fits and Where It Doesn't
PTFE, commonly sold under the Teflon brand, earns its place through chemical resistance, low friction, and clean operation with minimal stem wear. Its temperature ceiling is the tradeoff.
Teadit's Style 24A, an expanded PTFE packing, lists a short-term maximum of 600°F, a minimum of -450°F, and a full 0-14 pH range, wider chemical coverage than most graphite grades offer.
That 600°F figure is explicitly short-term, not continuous. Don't treat it as a drop-in match for sustained high-temperature steam duty. PTFE also tends toward more thermal expansion and creep near the top of its range than graphite does.
Construction Matters As Much As Material
The same base material behaves differently depending on how it's built into the ring:
- Braided filament (square braid, interlocking braid, braid-over-braid)
- Die-formed rings
- Ribbon packing
- Graphite combined with a carrier, such as Inconel wire reinforcement
Construction affects handling during installation, compression evenness, stem friction, and how well the seal holds in reciprocating, rotating, or emissions-controlled service. A braid that works in a slow-cycling gate valve isn't automatically right for a fast-stroking control valve.
Other Packing Materials Worth Knowing
Aramid, carbon, ceramic, mica, metal-reinforced, and composite packings round out the options, each suited to particular combinations of temperature, pressure, abrasion, or chemical exposure. Garlock's Style 108, for example, combines carbon fiber with graphite and is rated for 850°F in atmosphere and 1,200°F in steam, a different product from pure graphite packing despite overlapping numbers.
| Factor | Flexible graphite (example product) | PTFE (example product) |
|---|---|---|
| Steam temperature | Up to 1,200°F (Garlock 1300-E) | 600°F, short-term (Teadit 24A) |
| Chemical range | pH limited, oxidizer exceptions apply | Full 0-14 pH range |
| Friction | Low, varies by product line | Very low |
| Thermal cycling | Generally stable, subject to relaxation | More prone to creep near upper limit |
Treat this table as a starting comparison framework. Pull exact values for temperature capability, chemical compatibility, resilience, and emissions performance from current manufacturer technical data before finalizing a choice.

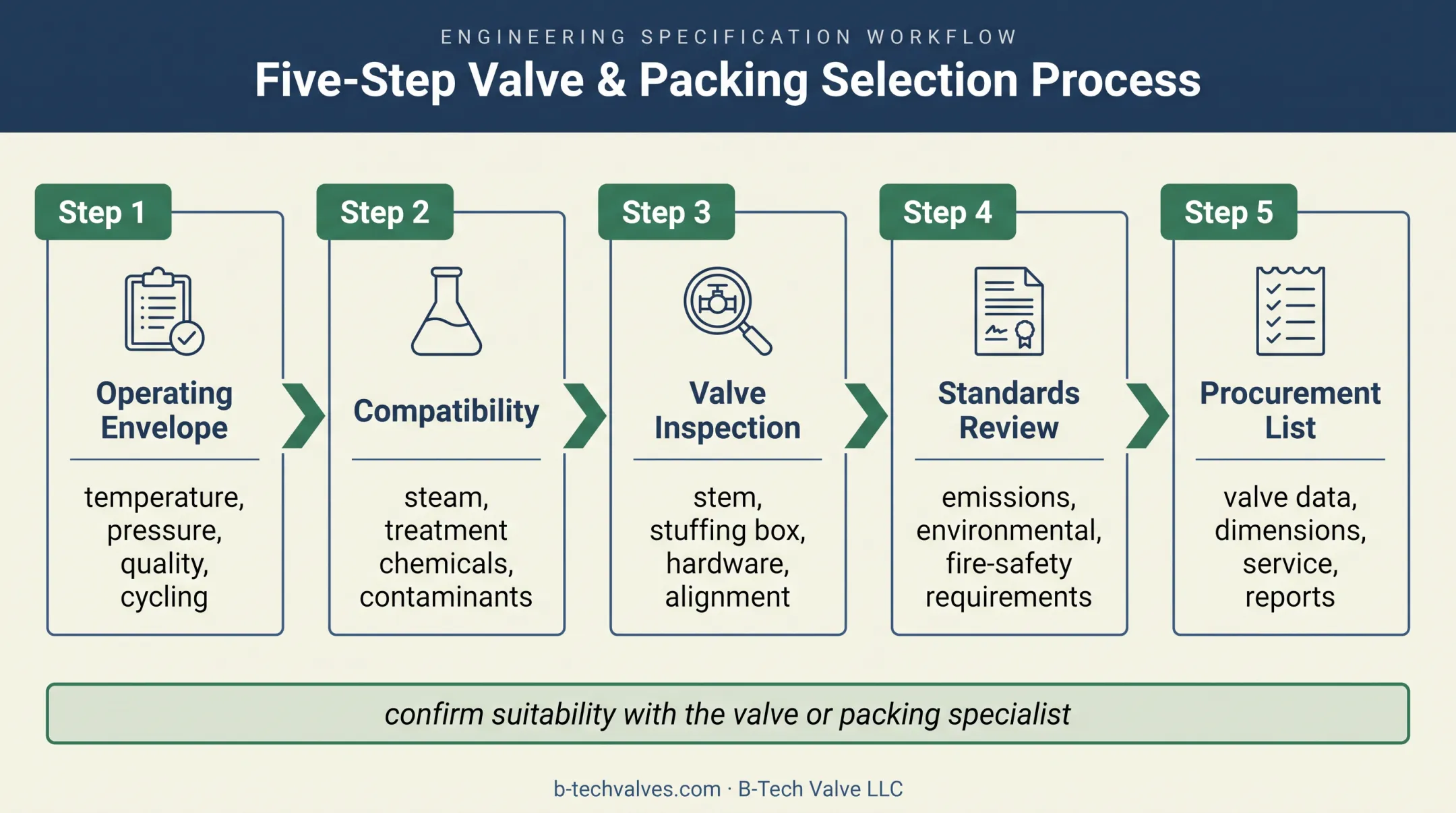

How to Select Packing for a High-Temperature Steam Valve
Document the Operating Envelope
Start with facts, not assumptions. Record:
- Normal and maximum temperature and pressure
- Steam quality
- Startup and shutdown conditions
- Valve travel frequency
- Isolating vs. throttling service
- Stem size
This full envelope, not a single temperature number, is what the packing manufacturer needs to recommend a grade.
Check Chemical Compatibility and Inspect the Valve
Confirm compatibility with the actual steam and anything traveling with it, including boiler-treatment chemicals or contaminants. For unusual chemistry or oxygen-rich conditions, get written confirmation from the packing manufacturer.
Before selecting or installing, inspect:
- Stem straightness and surface finish
- Pitting or corrosion on the stem
- Stuffing-box dimensions and condition
- Gland hardware and alignment
A scored or pitted stem can tear up fresh packing within days, regardless of how good the material is.
Emissions and Standards Requirements
If the application has fugitive-emission, environmental, or fire-safety requirements, confirm which standards apply rather than assuming one packing type satisfies them all.
The EPA's LDAR rule sets valve monitoring and repair requirements, including repair timelines, but only for specific facilities and process streams within its scope. Check applicability against your facility before writing any standard into the packing specification.
Consider Live Loading, Then Build Your Procurement List
If thermal cycling is frequent, a live-loaded gland may help maintain packing stress. Confirm suitability with the valve manufacturer or a qualified engineer first.
When ready to order, gather:
- Valve tag and type
- Line size and pressure class
- Stem dimensions and packing cross-section
- Service temperature, pressure, and medium
- Cycling profile and existing packing construction
- Required documentation and test reports
If replacing or redesigning steam-conditioning equipment is part of the project, B-Tech Valve's application engineering team can help size desuperheater and attemperator equipment for the line. Packing selection itself should still be confirmed with the valve or packing specialist.

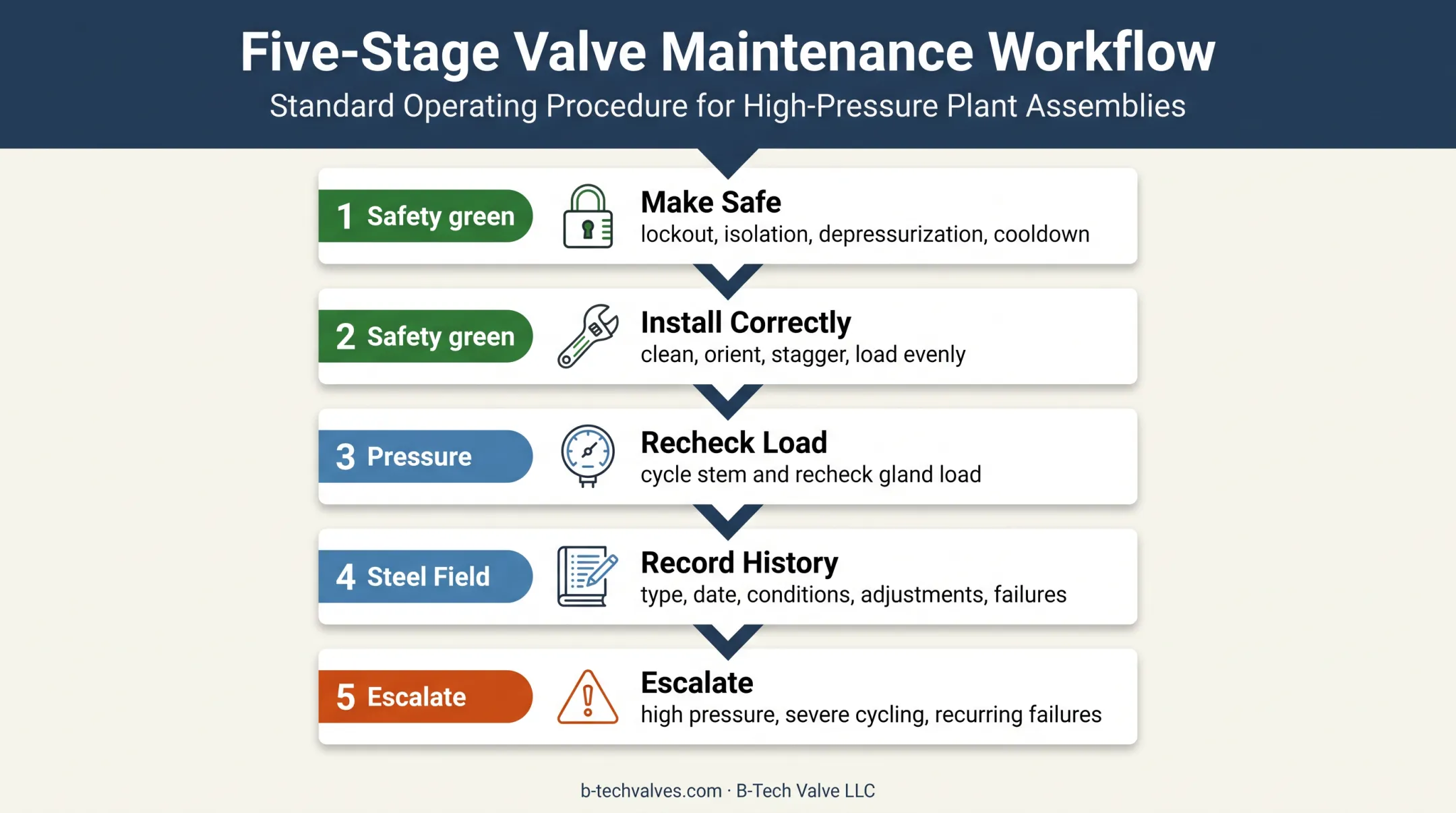

Installing, Inspecting, and Maintaining Steam-Valve Packing
Safety Before Anything Else
Repacking a hot steam valve isn't a job done on the fly. Follow site lockout/tagout, isolation, depressurization, cooldown, and confined-space procedures, and assign the work to qualified personnel only.
Emerson's installation and maintenance guidance for its cast steel valves warns against repacking under hazardous temperature, pressure, or chemical conditions. Remove or flush hazardous fluid first.
Installation Essentials
- Clean the stuffing box and inspect the stem and bore
- Use the specified ring orientation and cuts, staggering joints where required
- Apply even, centered gland loading rather than tightening unevenly
- Follow the packing manufacturer's compression and recheck instructions
Garlock's low-emission packing guidance recommends cycling the stem, rechecking the gland load, and repeating until there's no significant loss. Follow up with a torque recheck within two weeks of installation.
When Tightening Isn't the Answer
Under-tightening lets steam escape. Over-tightening increases stem friction, restricts actuator movement, generates heat, and can damage packing or distort components. Neither extreme fixes anything.
For early leakage, work through this sequence:
- Verify the leak source
- Inspect under safe conditions
- Make only the manufacturer-approved adjustment
- Tighten evenly
- Confirm the valve still operates correctly
- Document what was done
Some signs mean adjustment is no longer the right remedy:
- Persistent leakage after adjustment
- Exhausted gland travel
- High operating torque
- Damaged stems or packing extrusion
- Overheating or unusual emissions at the gland
Recordkeeping and When to Escalate
Record packing type, installation date, operating conditions, adjustments made, and any leakage or failure observations. That history supports reliability planning and the next packing selection.
Escalate to the valve manufacturer, packing supplier, or a qualified engineer when you face:
- High-pressure steam
- Severe cycling
- Emissions-controlled service
- Recurring failures
- Any valve that can't be safely isolated
Frequently Asked Questions
What is the purpose of valve packing?
Valve packing forms a pressure seal around the valve stem, limiting process-fluid leakage from the stuffing box. It doesn't replace the valve's internal closure element, which controls flow through the valve itself.
What are the different types of valve packing?
Common constructions include braided, interlocking braid, braid-over-braid, die-formed, ribbon, and metal-reinforced packing. Construction is separate from material. The same material can be built in several different ways depending on the valve.
Is Teflon or graphite valve packing better?
Neither wins outright. PTFE often suits chemically aggressive, lower-temperature, low-friction service, while graphite is more commonly evaluated for higher-temperature steam. Match your full operating envelope against current manufacturer data.
What is the temperature range of graphite valve packing?
The range varies by graphite grade, braid or reinforcement type, oxidation conditions, pressure, and manufacturer design. Check the current technical datasheet for the specific product rather than relying on a universal rating.
How do I know it's time to replace packing instead of adjusting it?
Persistent leakage after adjustment, exhausted gland travel, high operating torque, or visible packing extrusion all signal it's time for full repacking rather than another turn of the gland nuts.
