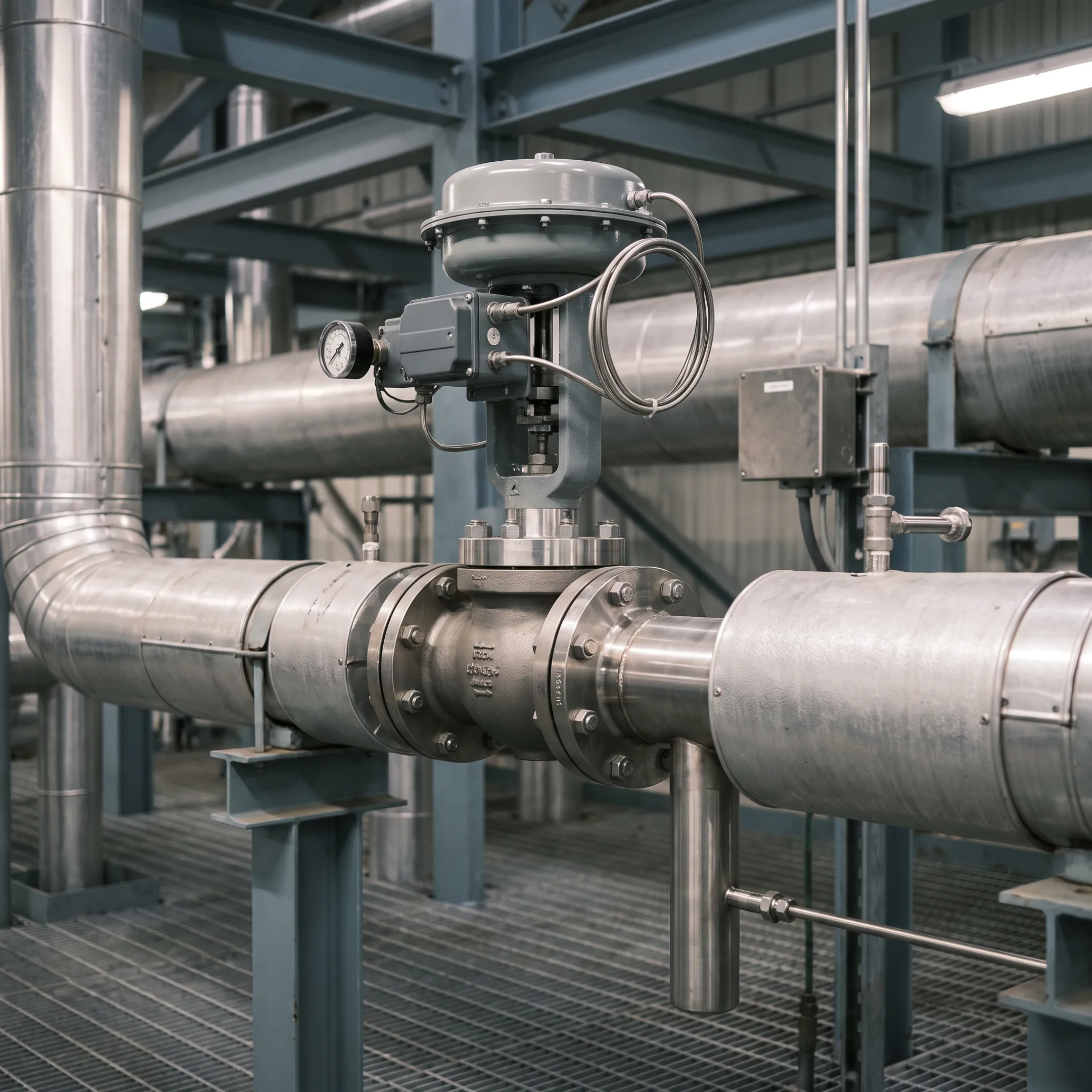

Desuperheaters for Pharmaceutical Plant Steam

A desuperheater injects water into a steam line, where the water absorbs heat and evaporates. B-Tech Valve’s products use either a fixed-nozzle spray-ring design or a probe-type variable-nozzle control valve and desuperheater. Water is fed from a separate temperature control valve, allowing the assembly to condition steam for the application.

B-Tech Valve offers the SPAD Small Pipe Attemperator Desuperheater, Steam Attemperator and LPD Large Pipe Desuperheater. The SPAD and Steam Attemperator use fixed-nozzle spray-ring designs that clamp between steam pipe flanges. The LPD uses a variable-nozzle, fully actuated control valve and is intended for steam pipes 6 inches and larger.

Selection depends on the steam pipe size, operating conditions, control requirements and installation arrangement. Fixed-nozzle spray-ring designs clamp between two steam pipe flanges, while the LPD uses a 90-degree flanged probe insertion with variable-nozzle control for larger pipe systems. B-Tech Valve sizes products for each customer’s application.

The listed products are available in ASME B16.34 pressure classes 150, 300, 600, 900, 1500, 2500 and 2700. The appropriate class should be selected against the steam system’s design and operating requirements. B-Tech Valve can review the application details and help identify a suitable product configuration.

The listed B-Tech Valve desuperheaters are temperature rated up to 1,200°F (650°C). Actual suitability depends on the complete steam application, including pressure, flow, line size, water injection conditions and required outlet temperature. Application review is recommended before selecting a final configuration.

Yes. B-Tech Valve provides application-sized steam desuperheater and attemperator solutions. Selection can consider pipe size, steam conditions, water supply, installation method and control requirements. The company’s application engineering contact has experience designing and applying desuperheaters and valves for power-plant and refinery applications, supporting technical review for process steam systems.
