Many plant engineers struggle to pin down "the" correct operating temperature, mostly because there isn't one. The real answer depends on comparing actual steam temperature against saturation conditions, pressure, equipment materials, control system capability, and whatever process sits downstream.
This article breaks down how to distinguish normal operating temperature from design limits, short-term excursions, alarm points, and the conditions that call for desuperheating or corrective action. We'll also cover where these limits come from and why a single catalog maximum should never double as your operating target.
Key Takeaways
- Degree of superheat is always measured against saturation temperature at the same pressure, never in isolation
- No universal maximum temperature exists; limits come from codes, materials, equipment ratings, and process duty
- Continuous limits, transient allowances, startup conditions, and trip points require separate documentation
- Accurate control depends on sensor placement, calibration, mixing distance, and properly sized conditioning equipment
What Superheated Steam Temperature Represents in a Plant
Superheated steam is steam heated above its saturation temperature at a given pressure. That distinction matters because the terms get used loosely on plant floors.
Three states show up on plant floors:
- Dry saturated steam sits exactly at the saturation point, with zero moisture content
- Wet steam contains liquid droplets
- Superheated steam has been heated beyond saturation
According to Spirax Sarco's steam guide, superheated steam needs a larger heat-transfer area than saturated steam. It must first cool to saturation before condensation and useful latent heat transfer can begin.
Here's the relationship that trips people up: pressure and temperature move together in a fixed, one-to-one relationship for saturated steam. Raise the pressure, and saturation temperature rises with it, period.
That relationship breaks down entirely once steam is superheated. At a given pressure, superheated steam can sit at any temperature above saturation, depending on how much additional heat it has absorbed.
Why Superheat Matters for Turbines vs. Process Heat Transfer
In turbine service, superheat keeps steam dry as it expands and cools through turbine stages. Without it, moisture forms early and erodes blades. That said, higher temperature isn't automatically better everywhere:
- Turbine and power-generation duty: More superheat generally means drier steam through expansion and more available work
- Heat-transfer duty: Excess superheat delays condensation, reducing effective heat transfer and requiring larger exchanger surfaces
- Process users: Many applications need steam close to saturation, not far above it
Temperature limits matter at multiple points in the steam path:
- Boiler outlets and superheater sections
- Main steam lines and reheaters
- Turbine inlets
- Pressure-reducing stations and process users
- Valves, seals, steam traps, and heat exchangers
Each location can have a different governing limit.
Factors That Influence Superheated Steam Temperature in Real-World Operation
Actual steam temperature rarely sits perfectly on target. Several variables push it around continuously:
- Boiler firing rate and superheater heat absorption
- Steam flow rate changes
- Attemperator (spray water) response speed
- Pressure fluctuations
- Load swings, especially rapid ones
Emerson's 2017 analysis notes that cycling plants face wider control ranges and increased thermal stress. Over-spraying attemperator water can locally quench pipe metal or cause water fallout. Under-spraying leaves hot and cold spots that produce misleading temperature readings at the measurement point.
Those swings matter because they push equipment toward hard design and material limits.
Material and Code Constraints
Design and material limits come from applicable codes rather than a single rule of thumb. ASME Section I governs power boiler construction; ASME B31.1 covers power piping design, materials, and operation. These documents, along with manufacturer data for valves, turbines, and instrumentation, define the actual ceiling for a given component.
Several damage mechanisms set where that ceiling sits:
- Creep and thermal fatigue
- Oxidation, corrosion, and erosion
- Gasket limits and valve-trim compatibility
Transients, Aging, and the Downstream Trap
A brief temperature spike during startup is not the same as sustained exposure at the same value. Repeated thermal cycling still damages components through fatigue accumulation, even when peaks never exceed a published maximum.
Aging compounds the problem:
- Insulation degradation increasing ambient heat loss
- Deposits and fouling altering heat transfer
- Moisture carryover affecting steam quality
- Sensor drift producing inaccurate readings
One point engineers often miss: the final governing limit may belong to a downstream valve, heat exchanger, or process unit, not the boiler or superheater itself. A complete system review, not just a boiler-centric check, is necessary to find the true constraint.
Determining the Operating Range and Temperature Limits
A workable temperature range is a set of documented boundaries, not a single number:
- Normal operating target
- Minimum useful superheat
- Continuous design limit
- Allowable excursion limit
- Startup/shutdown limits
- Alarm setpoint and trip point
Nominal Operating Range
The normal target comes from design pressure, expected flow range, turbine or process requirements, steam quality objectives, and the temperature tolerance of whatever sits downstream.
Build in a documented margin below the applicable equipment or material limit. But don't overcorrect. Excessive superheat impairs heat transfer in process applications and adds unnecessary thermal stress to piping and components.
Allowable Tolerance and Boundary Limits
Compare actual temperature against saturation temperature at the measured pressure, not a design-basis pressure. Document both continuous and short-term allowable conditions, citing boiler, turbine, valve, piping, instrumentation, and material specifications for each.
A simplified limit hierarchy (framework only, not universal values) looks like this:
| Range | Description | Typical Response |
|---|---|---|
| Normal operating range | Target temperature band for routine running | Routine monitoring |
| Warning range | Approaching a documented boundary | Verify instruments, check trends |
| Corrective-action range | Outside tolerance, within safe recovery | Operator intervention, adjust spray/firing |
| Shutdown/trip range | Exceeds protective threshold | Automatic protective action |
Pressure excursions deserve special attention. When a pressure-reducing valve drops line pressure, the saturation reference changes too. A temperature reading that looks stable can actually represent a much larger or smaller degree of superheat than before, simply because the saturation point shifted underneath it.
Safe Operating Margin
Margins exist for real reasons:
- Measurement uncertainty
- Sensor response lag
- Control overshoot
- Uneven temperature distribution across a duct or pipe cross-section
- Equipment aging

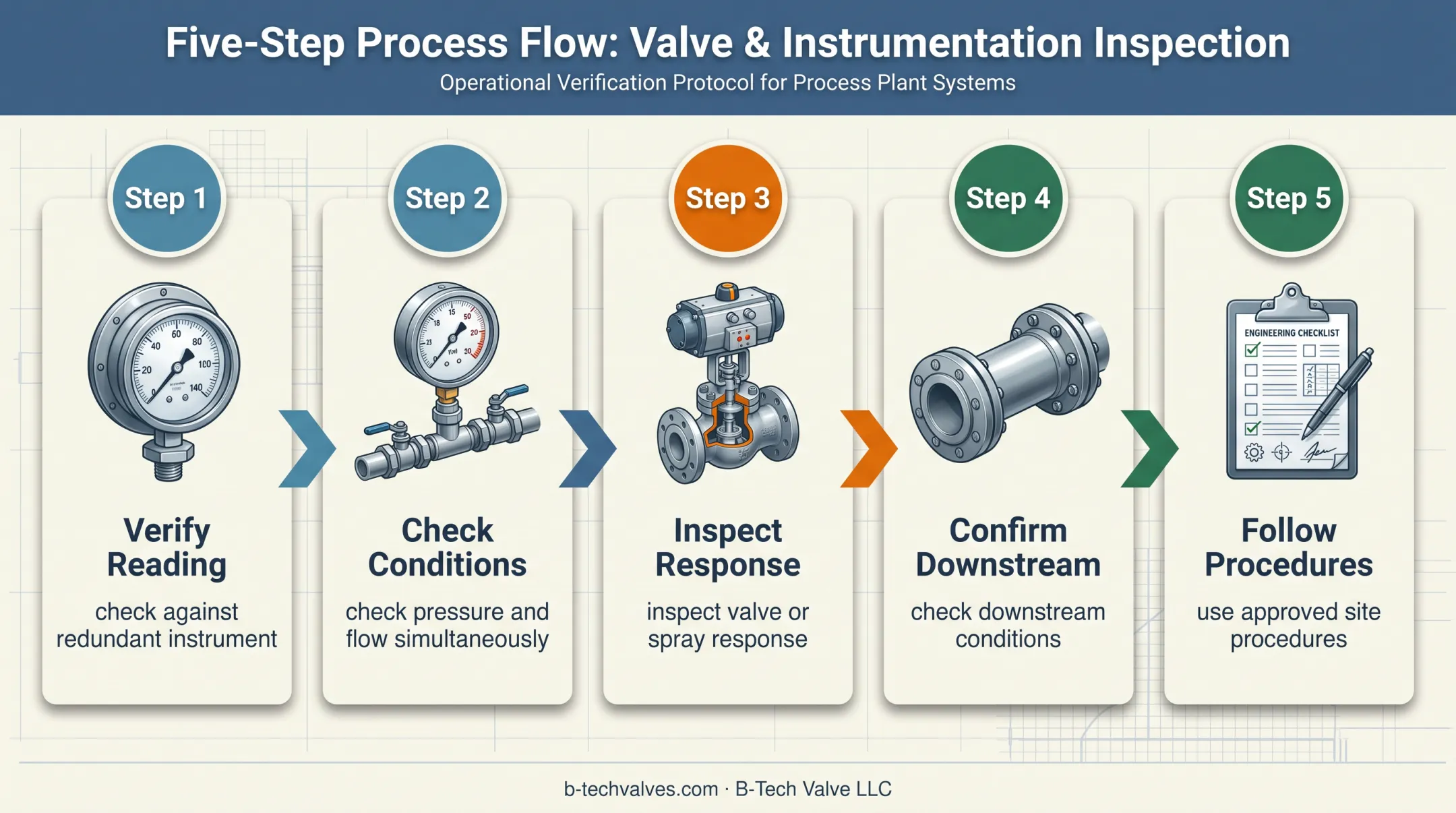

When a reading approaches a boundary:
- Verify the reading against a redundant instrument
- Check pressure and flow simultaneously
- Inspect control-valve or attemperator spray response
- Confirm downstream conditions haven't shifted
- Follow approved site procedures, not improvisation
A useful data-gathering checklist covers:
- Steam pressure and temperature
- Flow rate and design conditions
- Material and component ratings
- Process requirements
- Control logic and alarm settings
- Operational consequence of losing temperature control
Technical Properties, Specification, and Validation
A steam-table result tells you the thermodynamics. It doesn't tell you what's safe for your specific equipment. Temperature limits are both thermodynamic values and equipment-management decisions.
Stability, Variability, and Measurement
Temperature shifts with load, firing conditions, flow, pressure, and spray-water position, so a single instantaneous reading rarely tells the full story. Review trends instead.
Watch for sensor drift, response lag, and stratification. The measured temperature at a thermowell may not represent the hottest metal temperature or the worst local flow condition in the line.
Degree of superheat is calculated as:
Measured steam temperature − saturation temperature at the same pressure
Use a current, authoritative steam table or property database (such as the NIST/ASME steam properties reference) for the saturation value. Validate readings against redundant instruments, operating trends, and mass/energy balances whenever temperatures approach a limit.
Coupling With Adjacent Variables
Temperature doesn't move independently. It interacts with pressure, flow, steam quality, heat-transfer duty, and control response. Low flow or poor spray-water evaporation can create local hot spots even when the average outlet reading looks fine.

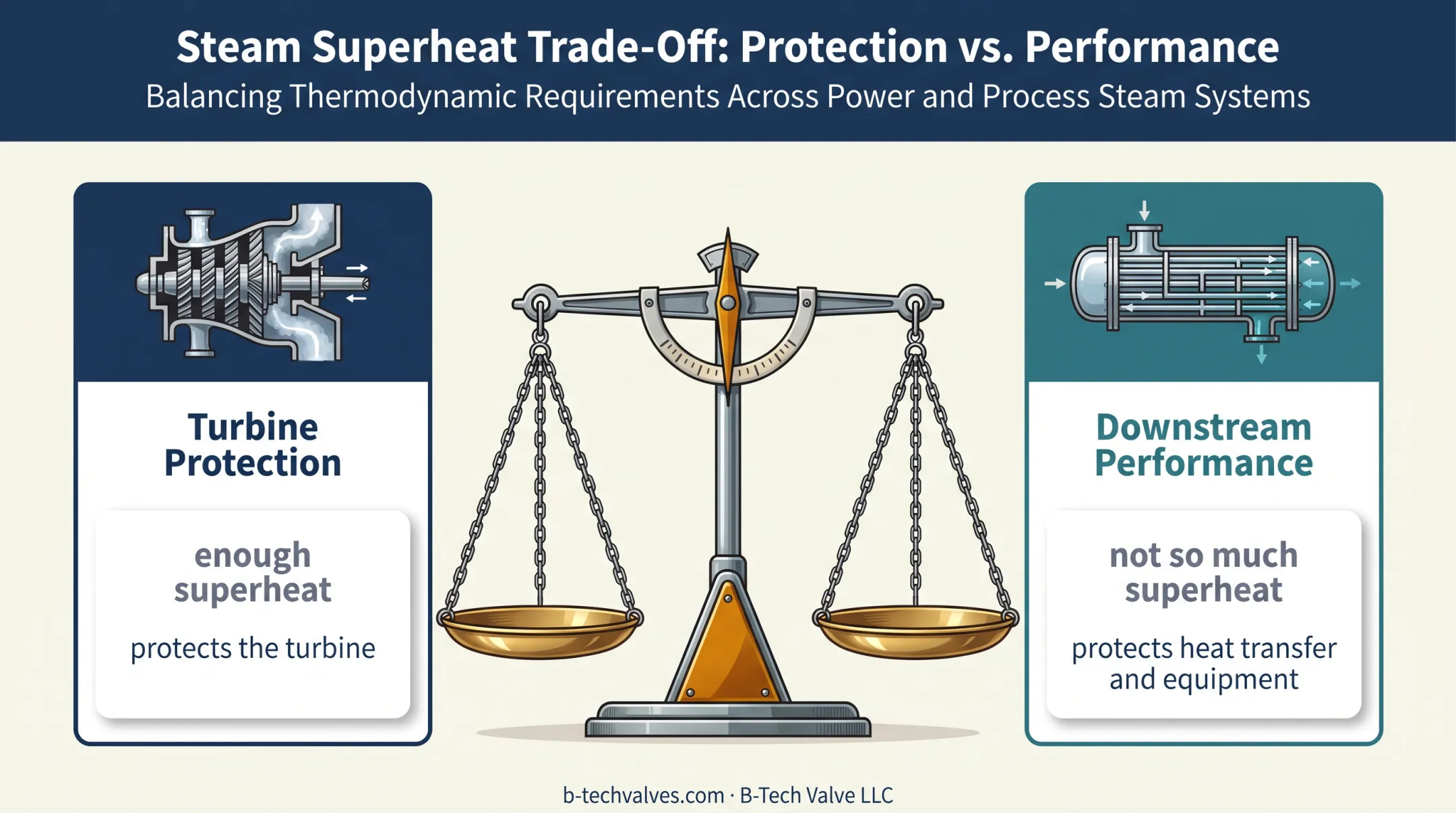

There's a real trade-off here: enough superheat to protect the turbine, but not so much that downstream heat transfer or equipment protection suffers.
Specification and Desuperheater Application
Engineering specs should state:
- Design and operating pressure
- Temperature target and allowable excursions
- Flow turndown and steam quality
- Materials, control range, and instrumentation
- Spray-water requirements
- Inspection or testing requirements
Properly selected desuperheater or attemperator valves can bring superheated steam toward a controlled downstream temperature. That only works when the system has adequate pressure differential, spray-water quality, mixing distance, and control instrumentation.
B-Tech Valve's LPD and SPAD units are sized to the plant's actual line size and duty, with products rated up to 1200°F (650°C) across ASME B16.34 pressure classes 150 through 2700. That published rating is a product capability, not a recommendation to run any given plant at that ceiling.
What Happens When Temperature Limits Are Exceeded
Exceeding a temperature limit rarely causes immediate catastrophic failure. It's usually a slower erosion of performance and reliability.
Performance losses show up first:
- Reduced downstream heat-transfer effectiveness
- Loss of steam-conditioning accuracy
- Turbine or process upset
- Control instability from compounding feedback
Wear and failure modes follow with continued exposure:
- Creep and fatigue in high-temperature components
- Steam-side oxidation and scale exfoliation
- Gasket, seal, and valve-trim degradation
- Thermal shock from poorly controlled spray water

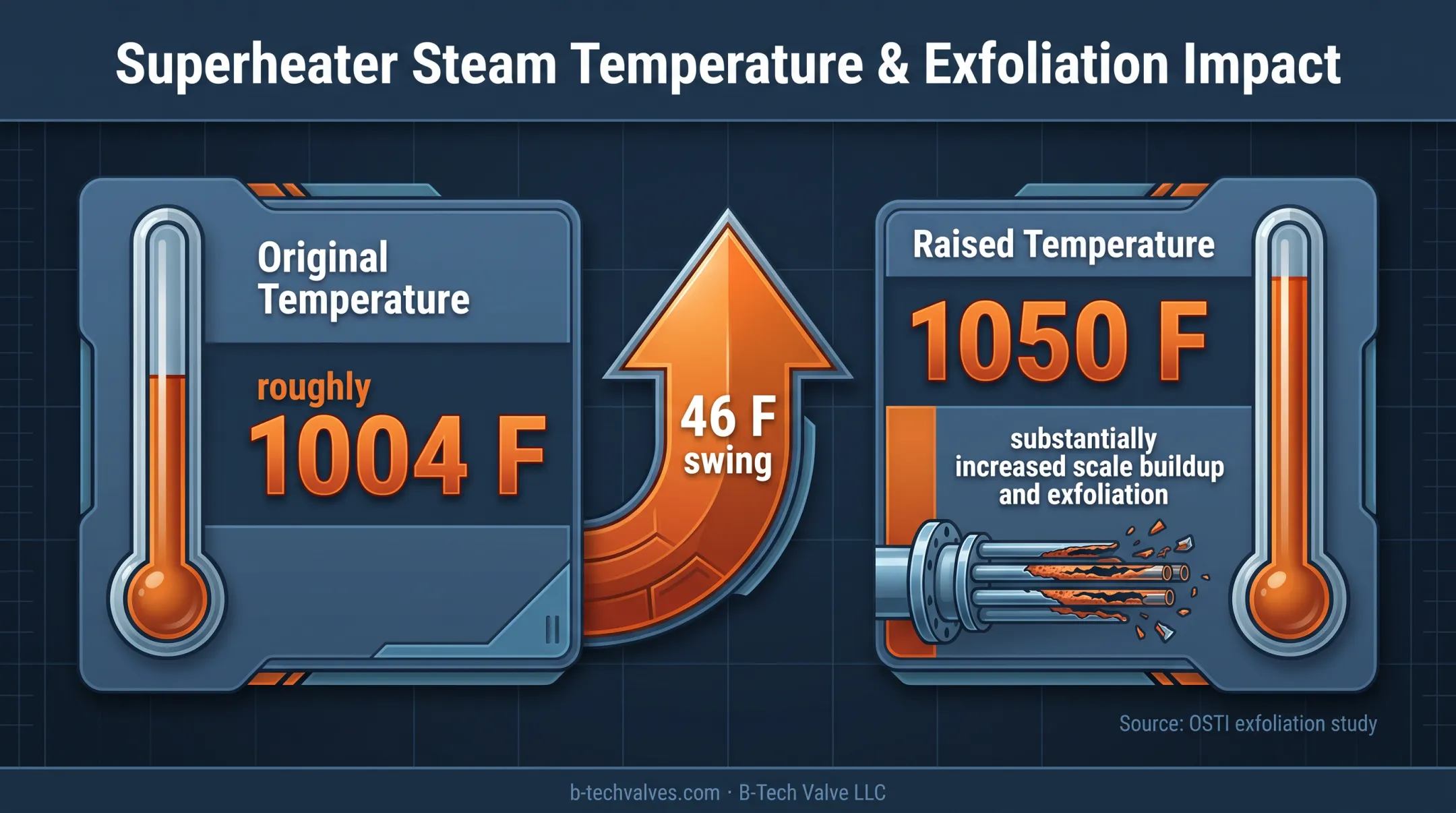

A 1981 technical report found that raising final steam temperature from roughly 1004°F to 1050°F substantially increased scale buildup and exfoliation on superheater and main-steam-line surfaces, according to the OSTI exfoliation study.
That 46°F swing had outsized consequences. It is not a universal threshold, but it shows how small temperature increases can have nonlinear effects on component life.
**Common misinterpretations:
- Treating a catalog maximum as a recommended continuous operating point
- Assuming temperature alone determines steam quality
- Applying boiler outlet limits to downstream equipment without adjustment
- Ignoring the difference between short-term and continuous exposure
- Trusting an unverified sensor reading near a control boundary
Safety and compliance stakes include:
- Pressure-boundary damage
- Personnel exposure risk
- Unplanned shutdowns
- Warranty concerns
Site procedures and applicable code requirements are written to keep plants clear of these outcomes.
Conclusion
Superheated steam temperature is a governing operating parameter, not a fixed number you can look up once and forget. Its acceptable limit depends on pressure, materials, equipment ratings, process duty, control performance, and how the entire steam system is configured together.
Reliable limits separate normal targets, operating margins, transient allowances, alarms, and protective trips, each supported by current engineering documents and verified field measurements.
If you're replacing equipment, modifying a steam line, or chasing a recurring temperature excursion, review desuperheater and temperature-control requirements with an application engineer before the next outage window closes.
Frequently Asked Questions
What is the temperature of superheated steam at a given pressure (psi)?
There's no single fixed temperature. At any given pressure, superheated steam can sit at multiple temperatures above saturation. Use a steam table for the saturation temperature, then add the specified degrees of superheat.
How do you calculate degrees of superheat?
Degree of superheat equals measured steam temperature minus the saturation temperature at that same pressure. Use consistent pressure units and accurate, calibrated instrumentation for both values.
What is the difference between saturated steam and superheated steam?
Saturated steam sits exactly at the saturation temperature for its pressure, with no additional sensible heat. Superheated steam is hotter than that saturation point and carries extra sensible energy above it.
What is the specific heat of superheated steam?
Specific heat varies with both temperature and pressure rather than holding one constant value. Engineers should pull the figure from a steam-property source (like NIST/ASME STEAM) for the specific operating state in question.
What is another name for superheated steam?
Superheated steam is sometimes informally called "dry steam." That term gets used loosely, though, and shouldn't be confused with "dry saturated" steam, which sits exactly at saturation with zero moisture rather than above it.
