That number only applies at roughly atmospheric pressure. Most industrial steam systems operate well above atmospheric pressure, which means actual steam temperatures routinely run into the hundreds or even low thousands of degrees Fahrenheit. Get the pressure-temperature relationship wrong, and you risk undersized heat exchangers, thermal shock on piping, or a turbine running outside its design envelope.
This article breaks down industrial steam temperature ranges, how pressure and phase condition dictate temperature, how to measure it correctly, and what happens when steam runs too hot, too cold, or too wet. We'll also cover how steam conditioning equipment keeps temperature within safe bounds.
Key Takeaways
- Saturated steam temperature tracks with absolute pressure; superheated steam exceeds saturation at the same pressure.
- 212°F (100°C) is water's boiling point near atmospheric pressure only, not an industrial ceiling.
- Match steam temperature to the job: turbine, heat exchanger, or process heating loop.
- Review steam tables, calibrated instruments, and full operating data before specifying equipment.
What Steam Temperature Represents in an Industrial System
Steam temperature is the measurable thermal condition of water vapor at a given pressure. It is tightly linked to sensible heat, latent heat, and total enthalpy. Sensible heat raises liquid water to its boiling point. Latent heat converts that liquid into vapor without a further temperature rise. Total enthalpy is the sum of both, and it continues to climb once the vapor is superheated.
Steam shows up in four distinct forms, and conflating them causes real problems:
- Saturated steam sits exactly at the boiling point for its pressure.
- Wet steam is a saturated mixture with entrained liquid droplets, measured by dryness fraction (vapor mass ÷ total mass).
- Dry saturated steam has zero entrained liquid: pure vapor at the saturation point.
- Superheated steam has been heated above saturation temperature at that same pressure.
How Pressure Sets Saturation Temperature
At any given absolute pressure, there's exactly one saturation temperature where liquid and vapor coexist. Raise the pressure, and that saturation temperature rises with it. This relationship, documented in detail by NIST's steam tables, underpins nearly every steam-system calculation, from boiler sizing to control valve selection.
This is also why industrial steam behaves so differently from the boiling pot on your stove or the steam room at the gym. Both of those operate close to atmospheric pressure. Industrial boilers routinely run at 150, 600, even 2,000 psig, pushing saturation temperatures hundreds of degrees past 212°F.
Field conditions rarely match theoretical values exactly. Several factors push actual steam temperature away from a textbook number:
- Boiler operation and firing rate fluctuations
- Pressure drop across piping, valves, and fittings
- Steam quality (wetness) leaving the boiler drum
- Insulation gaps and radiant heat loss along distribution lines
- Sudden load changes on the steam header
- Feedwater quality and chemistry
- Control-valve wear or sticking
Range of Industrial Steam Temperature
There's no single "normal" industrial steam temperature. It's governed by pressure, whether the steam is saturated or superheated, equipment design, and the specific duty the steam is performing.
Nominal Temperature by Steam Condition

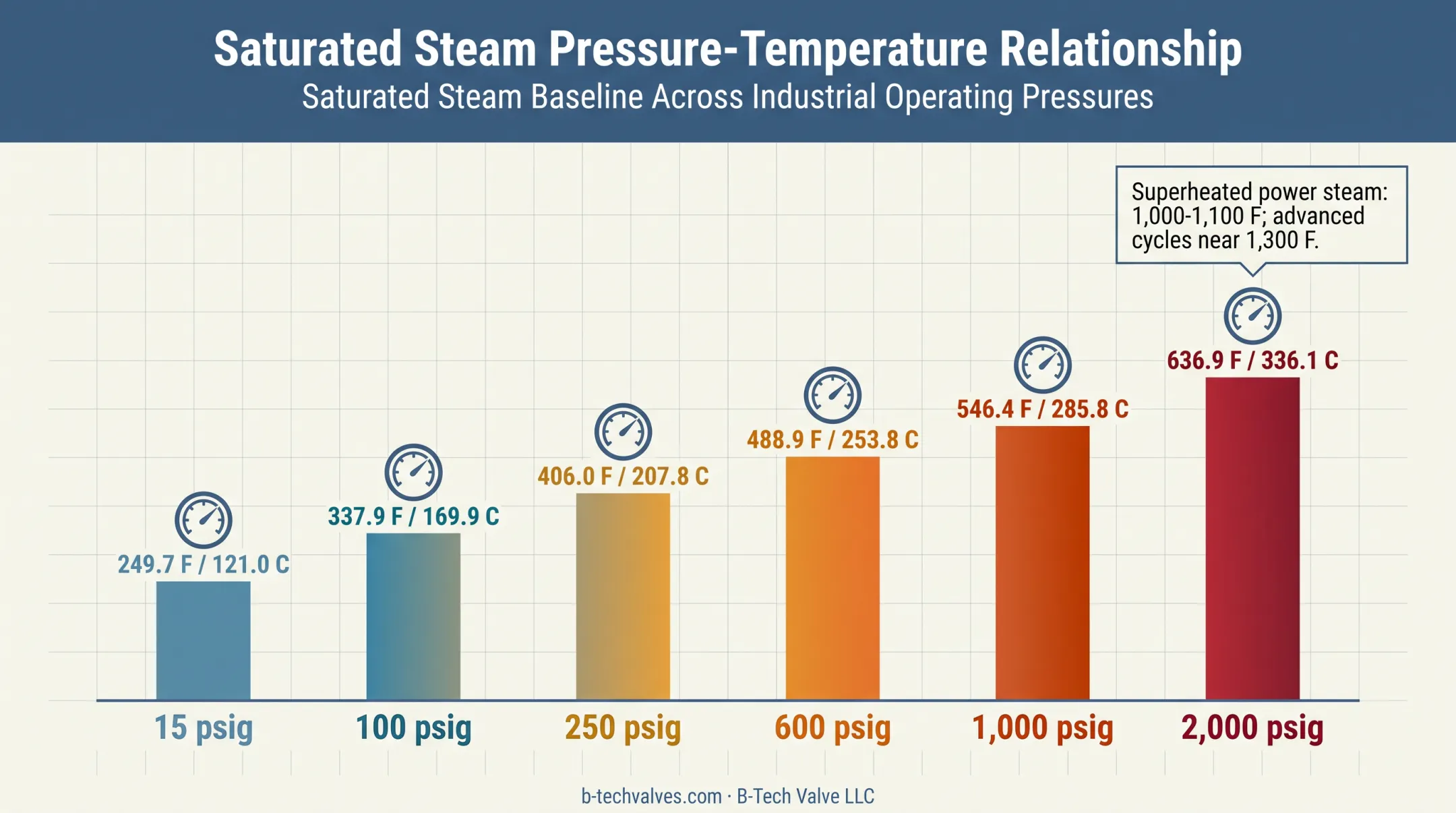

Here's a snapshot of saturated steam temperatures at common industrial gauge pressures, using absolute pressure (psig + 14.7) for the underlying calculation:
| Pressure (psig) | Saturation Temp (°F) | Saturation Temp (°C) |
|---|---|---|
| 15 | 249.7 | 121.0 |
| 100 | 337.9 | 169.9 |
| 250 | 406.0 | 207.8 |
| 600 | 488.9 | 253.8 |
| 1,000 | 546.4 | 285.8 |
| 2,000 | 636.9 | 336.1 |
Superheated steam runs hotter still. In power generation, main steam conditions commonly target 1,000°F to 1,100°F, and advanced ultra-supercritical cycles push toward 1,300°F at pressures above 4,500 psia, according to an EPA power cycle study. These aren't universal targets. They're specific cycle designs chosen for particular efficiency goals.
Allowable Tolerance and Boundary Limits
Four distinct limits apply to any steam system, and they're not interchangeable:
- Normal operating temperature – where the system runs day to day
- Equipment design temperature – the value engineers sized the hardware around
- Maximum continuous temperature – the ceiling for sustained operation
- Short-term excursion limit – a brief, bounded allowance during upsets
Pressure ratings and temperature ratings must be reviewed together, not separately. ASME B16.34 governs valve pressure-temperature ratings by material class, and the applicable rating shifts with metallurgy, gasket selection, and valve trim. Piping class and thermal expansion allowances matter just as much. None of these limits should be assumed; always pull them from manufacturer datasheets and the governing project specification.
Safe Operating Margin
Plants don't run right up against a rated limit. They build in margin because operating too close to a boundary invites:
- Poor process control and hunting setpoints
- Accelerated material degradation and creep
- Thermal shock during transients
- Unplanned shutdowns when a brief excursion trips a protective limit
A verified steam table, cross-checked against equipment ratings, should guide where that margin sits.
Key Technical Properties of Steam Temperature and How It Is Verified
Temperature doesn't operate alone. It has to be interpreted alongside pressure, flow, steam quality, and downstream equipment requirements.
Pressure and Temperature Relationship
Gauge pressure and absolute pressure are not interchangeable, and this trips up more calculations than almost anything else in steam work. Steam-property calculations require absolute pressure (psia), so a 150 psig reading needs 14.7 psi added before you touch a steam table.
Pressure-reducing stations and control valves change saturation temperature on the downstream side. Drop the pressure without accounting for the new saturation point, and you risk condensation forming where you expected dry vapor, or flashing where you expected stable liquid condensate.
Heat Transfer and Energy Content
Sensible heat, latent heat, enthalpy, and dryness fraction together determine how much usable energy steam delivers to a heat exchanger or turbine. Higher temperature doesn't automatically mean better performance.

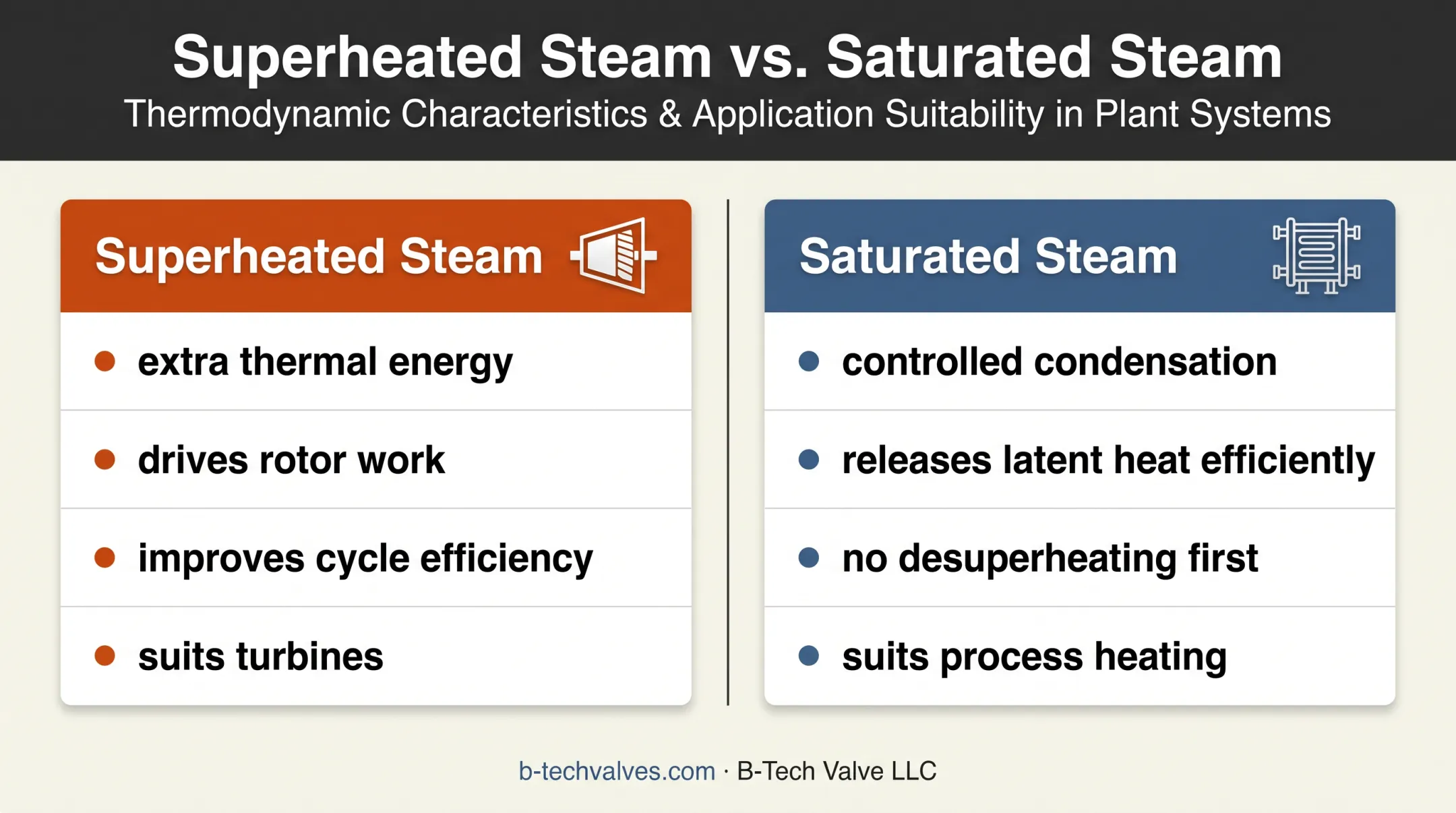

Superheated steam suits turbines, where that extra thermal energy drives rotor work and improves cycle efficiency. Saturated steam often works better for controlled condensation and process heating, since it releases latent heat efficiently without needing to desuperheat first.
Stability, Variability, and Measurement
Accurate temperature readings depend on the right instrumentation, placed correctly:
- Calibrated thermocouples or RTDs for direct temperature readings
- Pressure transmitters paired with temperature data, never used alone
- Steam-quality or moisture assessments where wetness matters
Compare design values against instrument readings and tested values regularly. Calibration drift, impulse-line configuration, and insulation gaps all cause field readings to diverge from design assumptions.
Before specifying any steam-conditioning equipment, gather this data:
- Inlet and outlet pressure and temperature
- Minimum and maximum flow
- Steam condition (saturated, superheated, wet)
- Pipe size and required downstream temperature
- Allowable pressure drop
- Water quality and materials of construction
- Control philosophy
Implications of Operating Outside the Recommended Range
Steam that's too cool or too wet loses heat-transfer effectiveness fast. Condensate accumulates, process temperatures drift, and water hammer becomes a real risk when slugs of condensate slam into fittings at velocity. Turbine and process performance both suffer.
Steam that's too hot creates a different set of problems:
- Excessive thermal stress on thick-walled components
- Damage to seals and rotating equipment from thermal fatigue
- Material degradation over repeated thermal cycles
- Overheating of downstream process equipment not rated for the excursion
How Desuperheaters Protect the System

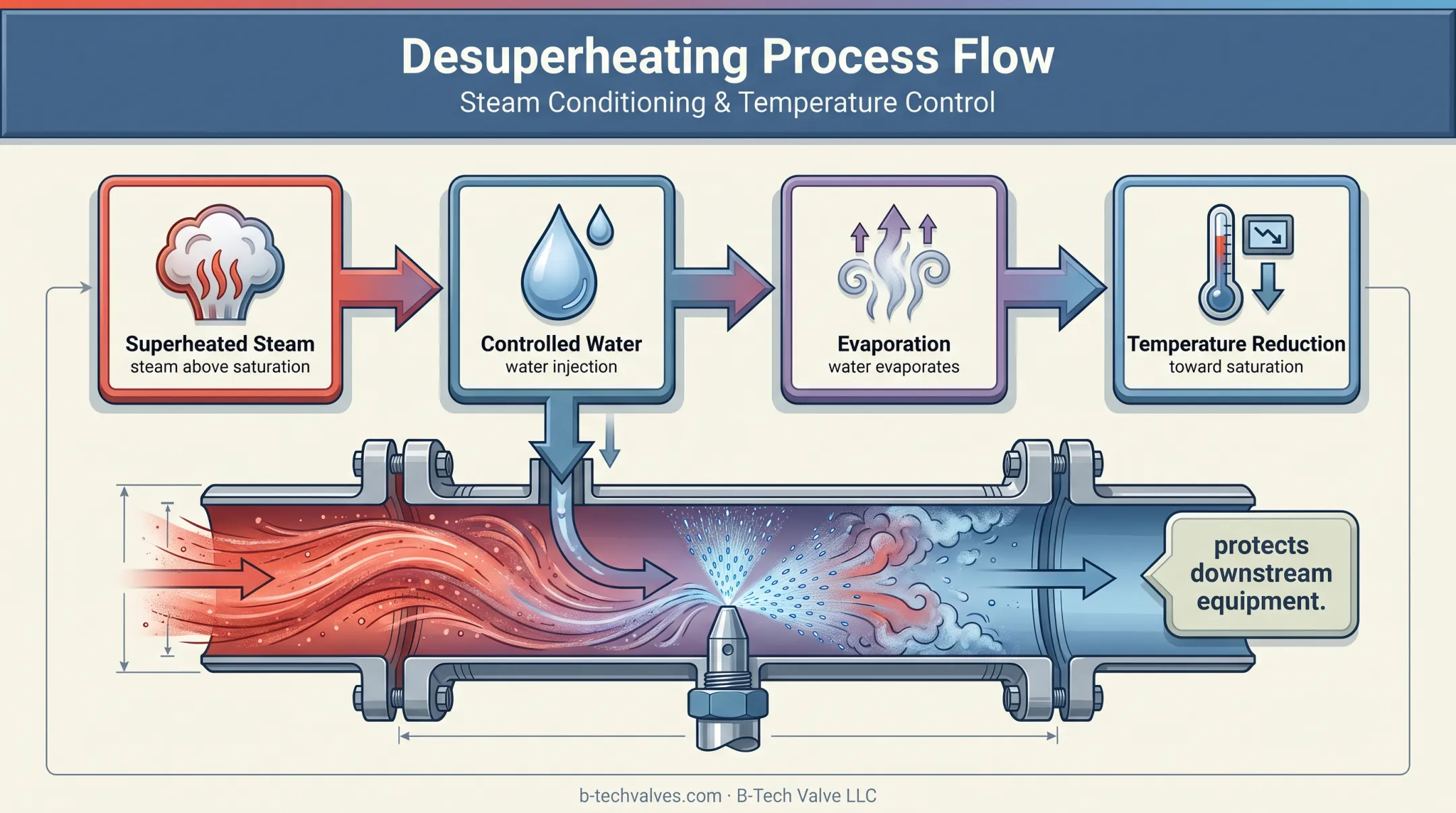

A desuperheater, also called an attemperator, injects a controlled quantity of water into superheated steam. The water evaporates, pulling steam temperature down toward saturation and protecting downstream equipment.
B-Tech Valve builds two desuperheater configurations, each sized for a specific pipe range:
- LPD (Large Pipe Desuperheater) – a variable-nozzle, actuated control valve and desuperheater combined into one assembly, built for steam pipes 6 inches and larger.
- SPAD (Small Pipe Attemperator Desuperheater) – a fixed-nozzle spray-ring design that clamps between flanges, paired with a separate temperature-control valve, for pipes 4 inches and smaller.
Neither product is a universal fit. Line size, steam condition, and downstream requirements determine which configuration applies.
Common Misinterpretations of Industrial Steam Temperature
A few assumptions cause real trouble on the plant floor:
- "All visible vapor is the same temperature." The white plume you see near a leak is usually condensation forming in cooler ambient air, not the actual steam temperature at the source.
- "212°F is the maximum." Pressure and superheat push saturation and superheated temperatures far beyond that figure, as the table above shows.
- "A pressure reading alone tells me the steam quality." It doesn't. You need corresponding temperature, dryness fraction, flow, and equipment data to know what's actually moving through the pipe.
Conclusion
Industrial steam temperature is a governing operating parameter shaped by pressure, phase condition, steam quality, and what the application actually demands. A saturated steam system and a superheated turbine inlet can sit hundreds of degrees apart at similar pressures, and both can be perfectly correct for their purpose.
Reliable operation comes down to a few non-negotiables:
- Verified steam-table data
- Properly calibrated measurement
- Pressure-temperature ratings matched to real operating conditions
- Sound engineering judgment when selecting desuperheaters and other conditioning equipment
Skip any one of those, and the rest of the math stops mattering.
Frequently Asked Questions
Can steam be hotter than 212°F (100°C)?
Yes. 212°F is water's boiling point at roughly atmospheric pressure only. Pressurized saturated steam and superheated steam both run substantially hotter, sometimes exceeding 1,000°F in power generation service.
What is the temperature range for steam?
It varies entirely with pressure and condition, from around 250°F at low gauge pressure to well over 600°F at high pressure, and higher still when superheated. Always check a verified steam table for your specific pressure rather than relying on one universal figure.
Which is hotter, steam or boiling water?
At the same pressure, saturated steam and boiling water sit at the same temperature. Steam carries latent heat released on contact, which is why Empa's burn research finds steam often causes more severe burns than hot water at the same temperature.
What is the steam pressure and temperature chart in psi?
A steam table maps absolute or gauge pressure (clearly labeled as psia or psig) to the corresponding saturation temperature. If your steam is superheated, you'll need additional temperature or degree-of-superheat data beyond the saturation value alone.
