The complete picture depends on the valve body, the actuator type, the instrument tag, the signal line, the flow direction, and the project's own legend. Miss one of those, and you can misread a throttling control valve as a simple isolation valve, or confuse a fail-open actuator with a fail-closed one.
This guide walks engineers, technicians, operators, and students through identifying control valve symbols, telling them apart from related valve types, and understanding their role inside a working control loop.
Key Takeaways
- P&ID symbols are functional shorthand, not scale drawings or physical-layout maps
- The project legend and applicable drafting standard override any symbol you've memorized from another facility
- A full control valve representation includes the body, actuator, positioner, signal connection, tag, and fail position
- Always trace the process line and control loop before specifying or swapping a valve based on the drawing alone
What a P&ID Shows
A piping and instrumentation diagram is a schematic that captures process piping, equipment, valves, instruments, and the control relationships that tie them together. According to AIChE's P&ID overview, it documents how those elements and sensors relate across a process unit.
P&IDs support more than just design review. Teams rely on them for:
- Procurement and vendor data sheet development
- Hazard and operability (HAZOP) reviews
- Installation planning and commissioning sequences
- Operating procedure development
- Maintenance planning and plant modifications
What P&IDs don't show matters just as much. They're not drawn to scale, and a valve's position on the page doesn't reflect its physical location in the plant.
Treating a P&ID as an installation drawing, without checking the actual piping plans and equipment specifications, is one of the more common field mistakes.
Industry documentation standards such as PIP's P&ID criteria specify that cover sheets function as the drawing's legend. That legend, not your memory of a previous job's symbols, governs interpretation.
Anatomy of a Control Valve Symbol
Every control valve symbol starts with a basic valve-body shape sitting on the process line. The number of ports, the body outline, and any internal detailing hint at the valve type. The actuator and control-loop marks sit with that body and complete the symbol.

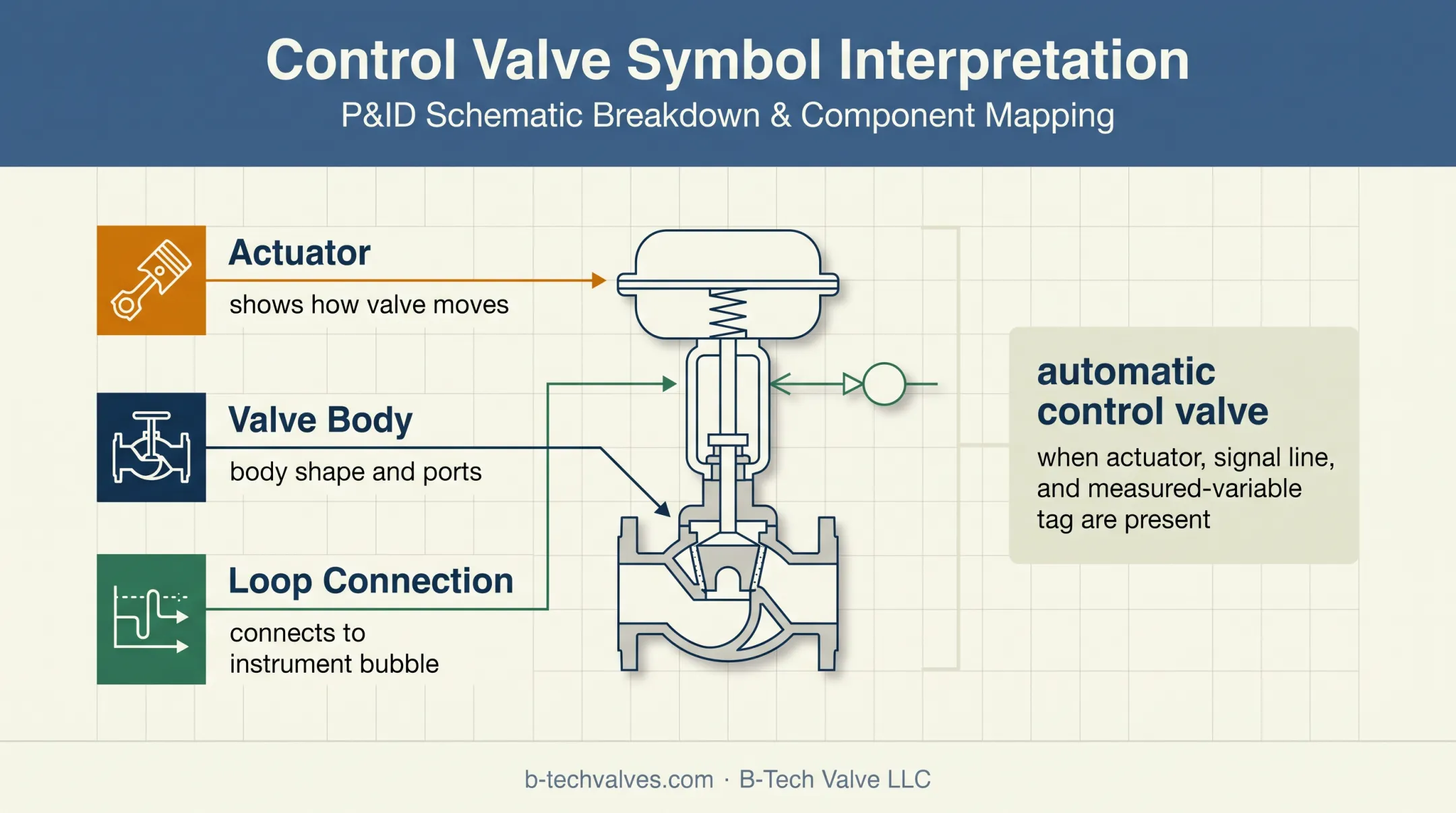

Body, Actuator, and Loop Are Three Separate Things
Treat the valve body, the actuator, and the loop connection as three layers of information on one symbol. A control valve symbol differs from a manual isolation valve, check valve, pressure relief valve, or regulator mainly by that loop connection. Ask these questions when you look at a symbol:
- Is there an actuator shown above or attached to the body?
- Is there a signal line connecting it to an instrument bubble?
- Does the tag reference a measured variable, like temperature or pressure?
If the answer to those is yes, you're likely looking at an automatic control valve rather than a hand-operated one.
Check the Legend Before You Trust the Icon
Don't assume a symbol means the same thing it meant on your last project. Governing conventions such as ANSI/ISA-5.1 set a standardized approach to instrument and control symbols, but individual plants sometimes adapt or simplify that library for their own drawing sets.
Before interpreting any valve symbol, look for:
- Nearby tags identifying the loop and instrument function
- Notes or callouts referencing size, class, or special service
- Arrows indicating flow direction
- Line type changes that might signal a different signal medium (pneumatic, electric, or data)
- The drawing legend, which takes precedence over any outside reference
Common Control Valve Symbols on P&IDs
Most control valve symbols start from a generic two-way valve shape. Internal or central markings inside that shape often identify the specific body style: globe, ball, butterfly, gate, plug, diaphragm, or needle. The exact graphic set depends on which drafting standard the project follows, so always confirm against the governing legend rather than a memorized library.
Globe Valves: The Common Throttling Element
Globe control valves show up constantly in modulating service because their body geometry handles throttling well. On the drawing, the symbol identifies the body style, but it's the loop tag and actuator notation that confirm it's performing automatic control rather than sitting as a manual block valve.
Ball, Butterfly, Plug, and Diaphragm Bodies
Each of these body styles has typical applications:
- Ball valves often handle tight shutoff with quick-opening characteristics
- Butterfly valves suit larger lines with moderate pressure drop requirements
- Plug valves handle abrasive or slurry service in some plants
- Diaphragm valves work well with corrosive or viscous fluids
The symbol alone doesn't confirm suitability for your service. Trim, material, and pressure class on the data sheet do that.
Multi-Port and Three-Way Symbols
Three-way and multi-port valve symbols show additional connection points, indicating mixing or diverting service rather than simple two-way flow control. The legend may separately note the normal or de-energized flow path, since that detail isn't always obvious from the body shape alone.
Distinguishing Control Valves From Related Symbols
It's easy to confuse a modulating control valve with these related types:
- Check valves allow flow in one direction only, with no control signal
- Pressure relief or safety valves open automatically at a set pressure, independent of a control loop
- Pressure-reducing valves maintain downstream pressure without an external signal
- Solenoid valves switch fully open or closed based on an electrical signal, rather than modulating
The operating purpose, not the body shape, separates these from true control valves.
Steam-Conditioning Example

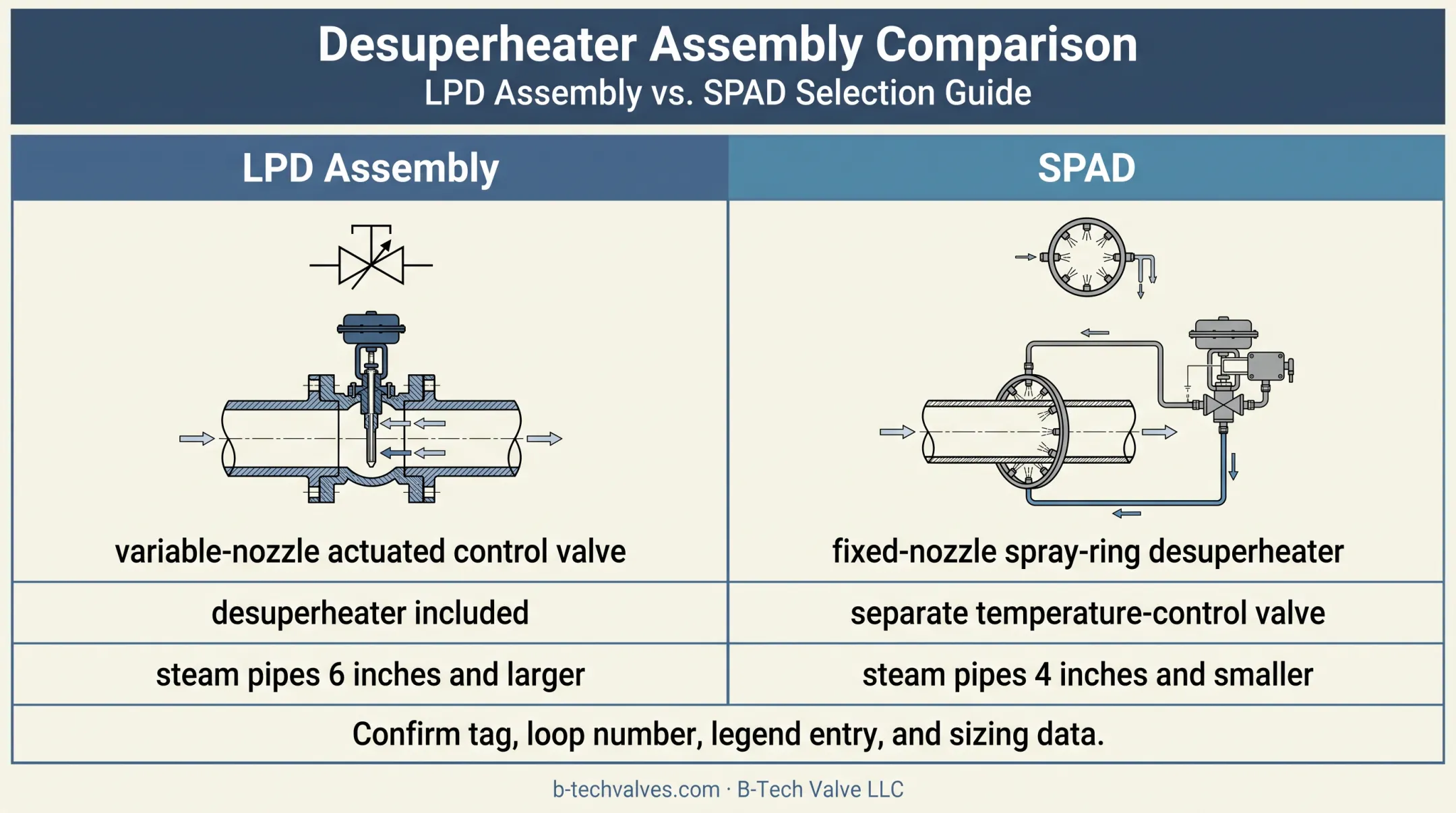

Steam temperature loops add another layer. An attemperator or desuperheater often appears as the final control element in that loop. B-Tech Valve's LPD assembly, for example, combines a variable-nozzle actuated control valve and desuperheater in one unit for steam pipes 6 inches and larger. Its SPAD is a fixed-nozzle spray-ring desuperheater paired with a separate temperature-control valve for steam pipes 4 inches and smaller.
On a drawing, confirm the actual tag, loop number, legend entry, and sizing data before assuming which configuration applies to your system.
Actuators, Instrumentation, and Tagging
The actuator notation sits above or attached to the valve body, and it identifies how the valve moves: pneumatic, electric, hydraulic, manual, diaphragm, or piston, depending on the drawing convention in use.
Positioners and Feedback Devices
Positioners, I/P transducers, solenoids, limit switches, and feedback devices appear with the actuator on the drawing. Instrument bubbles and signal lines connect the control system to the final control element. The actuator responds to a signal path that starts upstream in the loop.
Tag Logic Worth Knowing
Instrument tags typically pair a measured variable with a device function. According to ANSI's ISA-5.1 overview, the first letter identifies the measured or initiating variable, such as flow, pressure, or temperature. Following letters identify the function, such as indicator, transmitter, or controller. A tag like "PIC" combines pressure, indicator, and controller into one shorthand.
Site-specific tag-numbering rules can vary, so verify the exact convention against the project's own documentation before assuming a letter always means the same function.
Normal and Fail Positions
Fail position notation ties directly to process safety. Common markings include:
- NO (normally open) and NC (normally closed), describing the valve's state during normal operation
- FO (fail open) and FC (fail closed), describing what happens on loss of air, power, or signal
The selected fail position isn't arbitrary. It reflects what keeps the process safest if the control signal disappears, whether that's venting steam, isolating flow, or holding position.
How to Read a Control Valve Symbol in Context

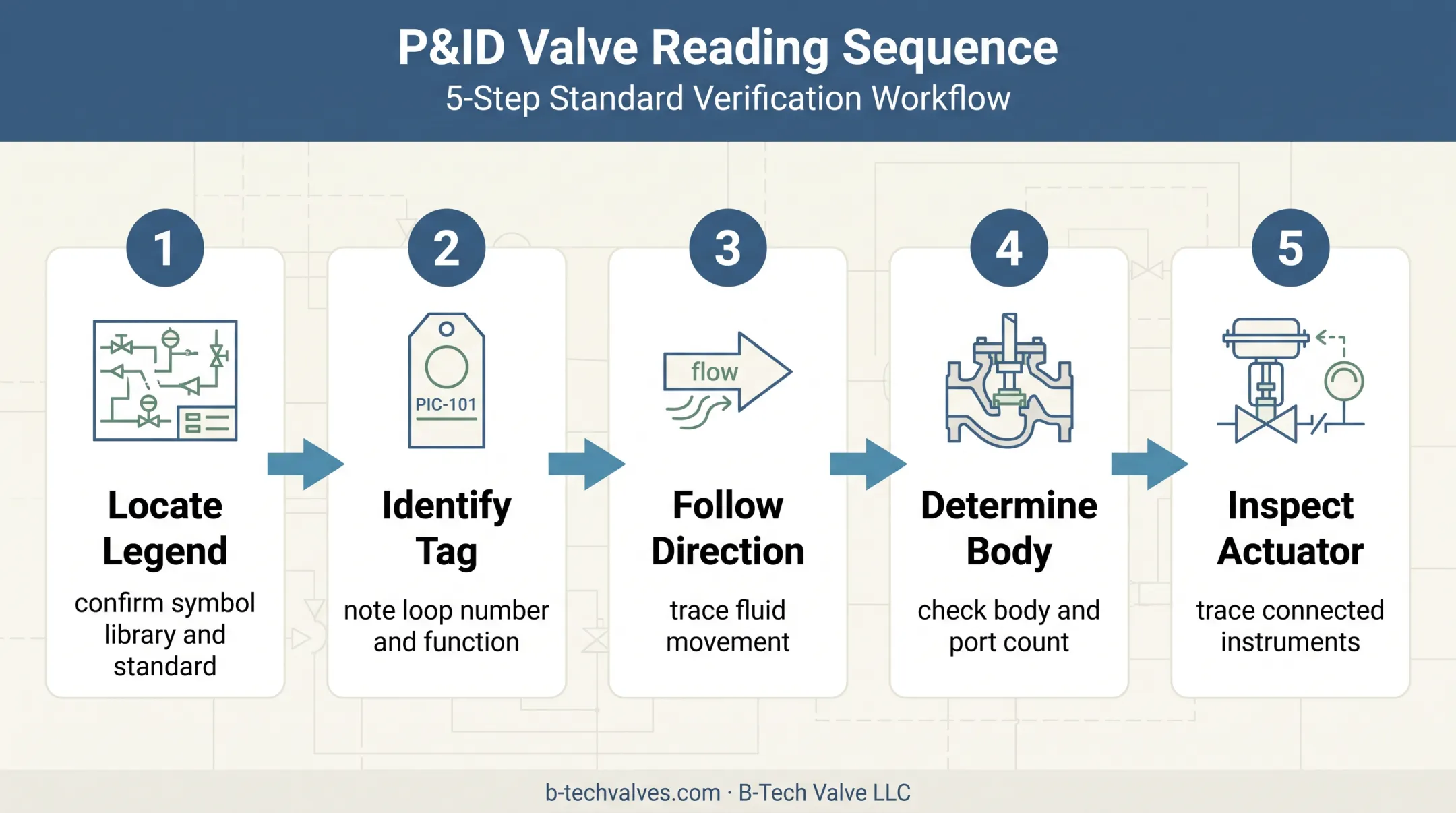

Reading a control valve symbol correctly means working through a repeatable sequence rather than guessing from the icon alone.
- Locate the P&ID legend first. Confirm which symbol library and drafting standard applies to this drawing set.
- Identify the valve tag. Note the loop number and instrument function letters.
- Follow the process-line direction. Arrows show which way the fluid moves through the valve.
- Determine the valve body and port count. This narrows down whether it's two-way, three-way, or another configuration.
- Inspect the actuator and connected instruments. Trace the signal path back to its source.
Tracing the Loop
Reading the surrounding loop means following the measured variable from the transmitter through the controller, the signal path, and finally to the control element.
A temperature controller adjusting a steam-conditioning valve is a straightforward example. The transmitter reads steam temperature, the controller compares it to setpoint, and the signal travels to the valve actuator to adjust flow.
AIChE's symbology primer describes this same logic: symbol shape indicates what and where, while the tag text explains why and the function involved.
Don't Stop at the Icon
Review associated notes for:
- Nominal size and pressure class
- End connections, materials, and trim
- Design temperature and flow direction
- Any special service requirements
The icon identifies the valve category. The notes confirm it's the right valve for the actual operating conditions.
Common Mistakes to Avoid
- Assuming symbols are identical across different companies or projects
- Confusing the valve body shape with the actuator notation above it
- Overlooking the legend sheet entirely
- Treating the P&ID as a literal, scaled physical layout
- Selecting a replacement part without checking the valve specification and service conditions
A Practical Verification Checklist
Before replacing a valve or specifying a new one during an outage or turnaround:
- Compare the tag against the equipment list
- Confirm the line number and loop number match
- Check the drawing's revision status
- Verify the fail action and signal type
- Get application support from the manufacturer when service conditions are unclear or unusual
Frequently Asked Questions
What is a valve symbol?
A valve symbol is a graphical representation showing a valve's type or function on a technical drawing. The legend and accompanying tag provide the authoritative interpretation, not the shape alone.
What does control valve mean?
A control valve is a final control element that automatically modulates or switches process flow in response to a control signal. This distinguishes it from a manually operated isolation valve, which has no automatic signal connection.
What does the pressure relief valve symbol look like?
Relief and safety valve graphics vary between drafting standards and company drawing libraries. Always consult the specific P&ID legend rather than relying on a generalized symbol description.
What is the symbol for a solenoid valve?
Solenoid notation commonly combines a standard valve symbol with an electromagnetic actuator or coil representation. Verify the project standard and confirm whether the associated signal is electrical or pneumatic before interpreting the symbol.
