Many engineers struggle with this exact gap. A valve's Cv — its flow coefficient — connects the physical design of the valve to its actual ability to regulate flow under real operating conditions. Get it wrong, and you end up with a valve that hunts, chatters, or simply can't deliver the flow your process demands.
This article walks through what Cv means, how to calculate it for liquid service, worked examples you can follow step by step, how to convert Cv to Kv, and where the liquid formula breaks down for steam and gas. We'll also flag the selection mistakes that trip up even experienced specifiers.
Key Takeaways
- Cv is water flow capacity through a fully open valve at a standardized pressure drop.
- Liquid Cv needs flow rate, specific gravity, and pressure drop; steam and gas use compressible methods.
- Calculated Cv is only a starting point; still check authority, rangeability, and manufacturer curves.
- Oversized valves hurt controllability and wear early; undersized valves can't meet process demand.
What Control Valve Cv Represents
Cv is a standardized flow coefficient. It describes how many U.S. gallons per minute of water pass through a fully open valve at a reference pressure drop of 1 psi, with water referenced at 60°F. Always confirm the exact reference conditions against the applicable standard or the manufacturer's documentation. Catalog conventions can shift slightly.
A higher Cv generally means greater flow capacity at a given pressure drop. But that's only part of the picture. Actual flow through an installed valve also depends on:
- Fluid properties (density, viscosity, specific gravity)
- Valve stem or disc position
- Upstream and downstream pressure
- Installation details like nearby elbows, reducers, or strainers
Cv Is Not the Same as Pipe Size or Pressure Class
This is where a lot of confusion starts. Cv is a capacity coefficient and a derived performance characteristic, not a stand-in for nominal pipe size, pressure class, or the valve's normal operating flow.
Two valves with identical line sizes can carry very different Cv values depending on internal geometry and trim design. A 4-inch globe valve with a heavily restrictive trim might flow less than a 3-inch valve built for high capacity.
Why Cv Matters in Industrial Systems
Cv ties directly into valve sizing, pressure loss across the valve, throttling energy, and how quickly a control loop responds to a setpoint change. In power and process plants, that link is practical, not academic.
Unstable steam, liquid, or gas control doesn't just cause a minor process hiccup. It can disrupt heat transfer, stress rotating equipment, and strain piping over time.

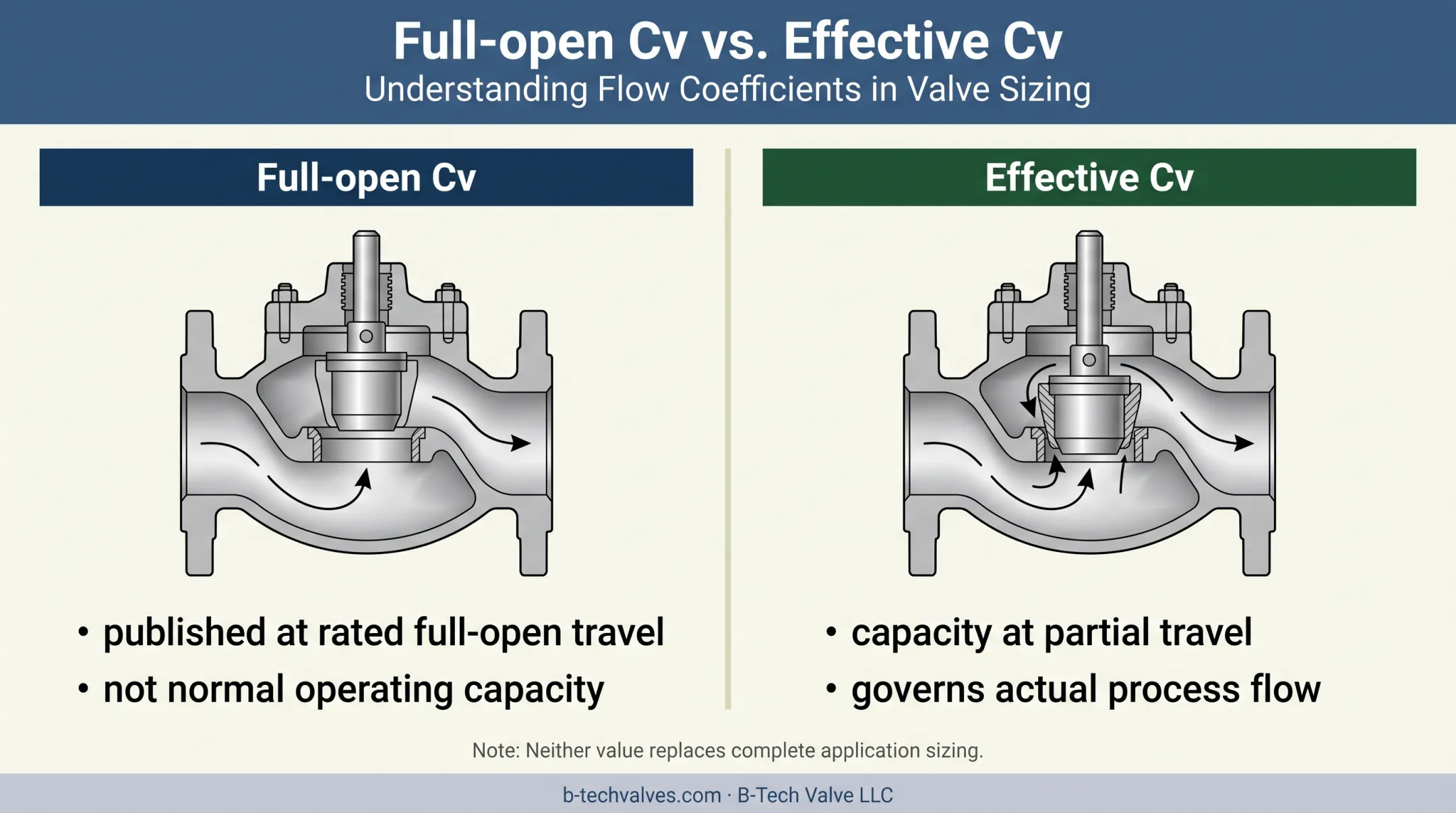

The published full-open Cv is not the same as the effective Cv at partial travel. A control valve almost never operates fully open during normal service. It throttles somewhere within its stroke, and the coefficient at that position is what governs your process, not the number at the top of the datasheet.
How to Calculate Control Valve Cv: Formula and Worked Examples
For single-phase liquid service, the simplified sizing relationship is:
Cv = Q × √(SG / ΔP)
Where:
- Q = liquid flow rate in U.S. gallons per minute (GPM)
- SG = specific gravity of the fluid relative to water (water = 1.0)
- ΔP = pressure drop across the valve, in psi
This equation assumes single-phase liquid flow, consistent units, a known pressure drop across the valve, and a specific gravity value that reflects actual operating temperature, not just a textbook default.
Worked Example 1: Water Service
Say you need to size a valve for 300 GPM of water with an allowable pressure drop of 16 psi across the valve. Since water has SG = 1.0:
- Cv = 300 × √(1.0 / 16)
- Cv = 300 × 0.25
- Cv = 75
This tells you the valve needs a rated Cv at or above 75 to handle this flow at the assumed pressure drop. It's a starting point for checking manufacturer curves, not a final selection.
Worked Example 2: A Fluid Lighter Than Water
Now consider a light hydrocarbon stream flowing at 500 GPM with SG = 0.85 and an allowable ΔP of 25 psi:
- Cv = 500 × √(0.85 / 25)
- Cv = 500 × √0.034
- Cv = 500 × 0.1844
- Cv ≈ 92.2
Notice that even with a higher flow rate than the water example, the lower specific gravity changes the math meaningfully. This is illustrative only. Always verify each arithmetic step against your actual process data before using it for selection.
Checking a Candidate Valve: The Inverse Formula
If you already know a valve's Cv and want to estimate flow at a given pressure drop, flip the equation:
Q = Cv × √(ΔP / SG)
For example, a valve rated at Cv = 100, with ΔP = 20 psi and SG = 0.9:
Q = 100 × √(20 / 0.9) = 100 × √22.2 = 100 × 4.71 ≈ 471 GPM
This lets you quickly test whether a candidate valve covers your design operating point before a full sizing exercise.
A critical caution: steam, air, and other gases are compressible. The liquid formula above does not apply directly. Compressible-fluid sizing requires additional factors: pressure ratios, temperature, molecular weight, expansion factors, and potential critical (choked) flow conditions. Trying to force the liquid equation onto a steam application will give you a misleading number.
How Cv Guides Valve Selection, Control Performance, and Common Misinterpretations

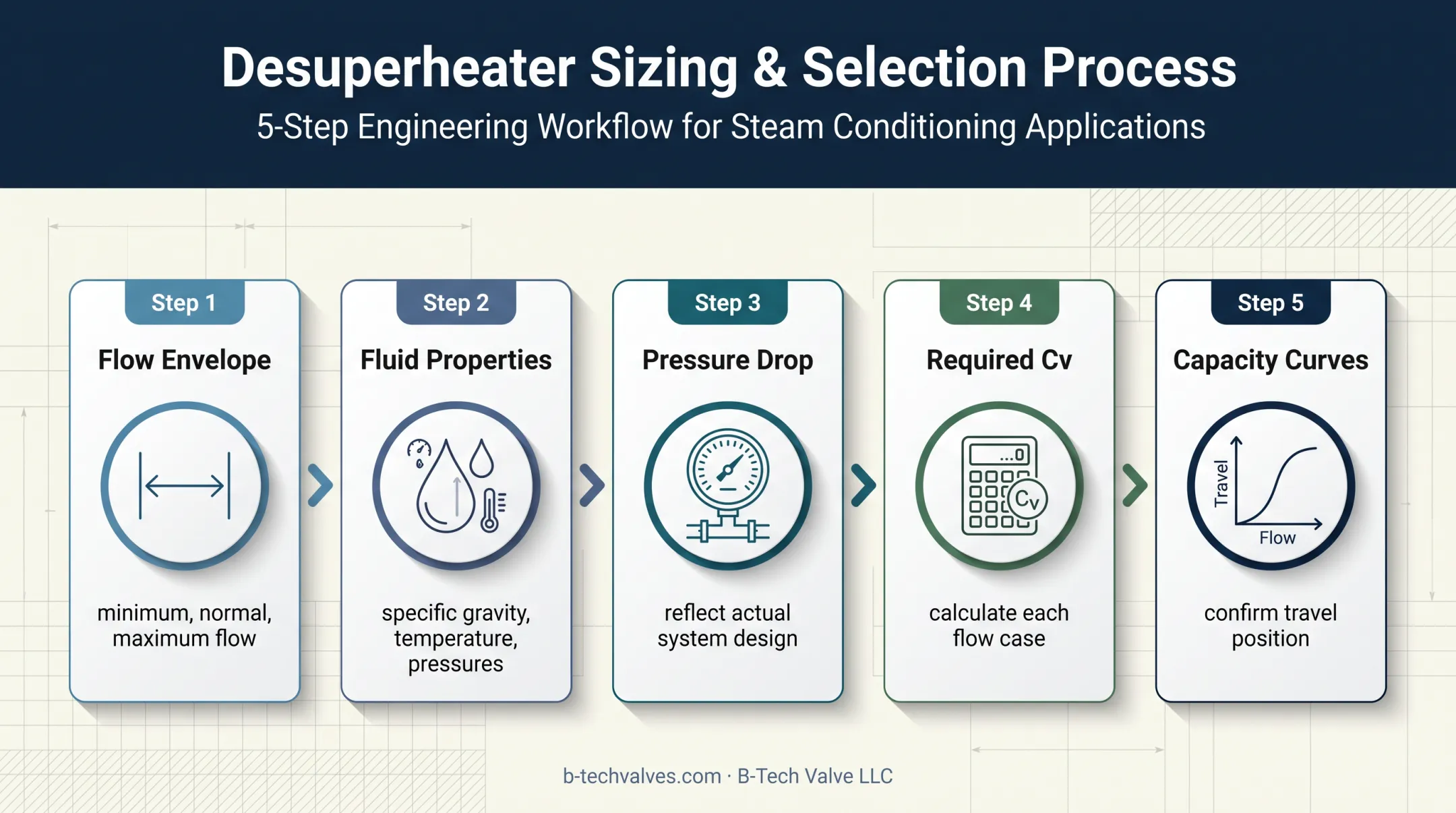

Calculating a required Cv is only step one. A practical sizing workflow looks like this:
- Establish the flow envelope: minimum, normal, and maximum flow the valve must handle
- Determine fluid properties and pressures: specific gravity, temperature, upstream/downstream pressure
- Choose a defensible pressure drop: not an arbitrary number, but one that reflects actual system design
- Calculate required Cv for each flow case, not just the maximum
- Compare against manufacturer capacity curves to confirm actual travel position at each case
That last step matters more than most people expect. A valve should be checked at its expected operating positions, not just at full-open capacity. You want useful, controllable travel at both normal and maximum load, not a valve that's essentially wide open all the time or barely cracked.
What Goes Wrong When Sizing Is Off
Oversizing pushes normal operation toward the closed end of the stroke. Small position changes then cause disproportionately large flow swings: excessive sensitivity, hunting, poor resolution, and accelerated seat or trim wear.
A Chemical Processing article summarizing a survey of more than 500 process engineering, procurement, operations, and maintenance professionals across 200-plus plants identified oversizing as a leading control-valve problem. There's no universal oversizing percentage that applies to every application, so check manufacturer guidance for your specific service.
Undersizing creates the opposite failure: insufficient maximum flow, excessive pressure loss, and an inability to hold setpoint. Where applicable, it also raises the risk of noise, cavitation, flashing, or high-velocity trim damage.
Cv is one piece of a larger puzzle. Selection also has to account for:
- Valve type and trim characteristic
- Rangeability and pressure class
- Temperature and material compatibility
- Actuator thrust or torque requirements
- Shutoff class and applicable standards
- Noise, cavitation, and flashing risk
Common Misinterpretations Worth Avoiding
- Sizing by pipe size alone. Two valves in the same nominal line size can carry very different Cv values because of internal geometry.
- Treating full-open Cv as normal operating Cv. The installed characteristic and actual travel position are what govern real performance.
- Applying the liquid formula to steam or gas. Compressible service needs manufacturer or specialist sizing support, not a shortcut.
- Assuming bigger Cv is always safer. There's a real trade-off between capacity, control resolution, and valve authority — more isn't automatically better.
Application Note for Power and Process Plants
Steam-conditioning equipment adds another layer to this conversation. In desuperheating applications, Cv considerations feed into a broader evaluation that includes spray water flow, nozzle design, and pipe velocity — not just a standalone valve calculation.
B-Tech Valve's LPD (Large Pipe Desuperheater) is built around this reality. It's a probe-type, variable-nozzle actuated control valve and desuperheater combined into a single assembly for steam pipes 6 inches and larger, inserted through a 3-inch flanged connection at 90 degrees on the pipe.
Products are offered across ASME B16.34 pressure classes 150 through 2700 and temperatures up to 1,200°F. For steam service like this, complete application-specific sizing is the right path, not a generic liquid Cv calculation applied where it doesn't belong.
How Cv Is Specified, Measured, and Validated
Cv data comes from several sources, and they're not always interchangeable:
- Manufacturer datasheets and catalogs
- Certified test documentation
- Sizing software and performance curves
- Project specifications
Four Cv figures show up in practice, and they are not the same thing:
- Rated Cv: coefficient at the manufacturer's rated full-open travel
- Tested Cv: value from controlled flow testing
- Calculated required Cv: what your process math produces for a specific operating case
- Effective Cv: capacity actually available at a given valve opening
Treating any of these as identical is a common, costly mistake.
How Testing Establishes Cv
Standardized test procedures measure controlled fluid flow and differential pressure to establish a valve's coefficient under defined conditions. The current industrial reference is IEC 60534-2-3, which covers flow-capacity test procedures for industrial-process control valves. Field verification follows a similar logic: calibrated flow and pressure instruments measure directly upstream and downstream of the valve, accounting for any nearby piping restrictions that could skew the reading.
Converting Cv to Kv
Many international catalogs list Kv instead of (or alongside) Cv. The widely cited conversion, per Fisher's sizing reference, is:
Kv = 0.865 × Cv
So a valve with Cv = 75 converts to Kv ≈ 64.9. Always check which convention a catalog is actually using. Cv, Kv, and Kvs are not the same unit, and mixing them up produces sizing errors that are easy to miss until the valve is already installed.
Installation, fouling, erosion, corrosion, and trim damage can also cut effective flow capacity over time, even though the published Cv on the nameplate never changes.
Conclusion
Cv is a governing flow-capacity parameter that connects process requirements to control valve selection. It does not replace complete application sizing. Reliable results depend on accurate flow, pressure, fluid-property, and temperature inputs, validated calculations, and manufacturer-specific Cv curves rather than rules of thumb.
For power and process plants sizing control valves in steam, gas, or desuperheating service, generic liquid formulas only go so far.
B-Tech Valve designs and sells American-made, probe-type, variable-nozzle steam and gas desuperheater and attemperator valves sized to each customer's application and operating conditions, with LPD and SPAD sizing data sheets available directly from the company.
If your next project involves demanding steam-conditioning service, reach out to Sales@B-TechValves.com or 609-321-2205 for application engineering support before finalizing a valve selection.
Frequently Asked Questions
How is control valve Cv calculated?
For liquid service, Cv = Q × √(SG/ΔP), where Q is flow rate in GPM, SG is specific gravity, and ΔP is pressure drop in psi. Steam and gas require separate compressible-flow sizing methods instead of this liquid formula.
What is the typical Cv for a globe control valve?
There's no single typical value. Cv varies by nominal size, trim design, pressure class, manufacturer, and valve opening position, so you need to reference the specific datasheet or performance curve for your valve.
How do I convert control valve Cv to Kv?
Using the commonly cited factor, Kv = 0.865 × Cv, where Cv is in U.S. gallons per minute at 1 psi and Kv is the metric equivalent. Always confirm which convention your manufacturer's catalog actually uses before converting.
What are the three types of control valves?
This depends on the classification system. By body motion, valves are linear (sliding-stem) or rotary. By body design, common categories include globe, ball, and butterfly valves . These describe different classification axes, not one single list.
