Desuperheaters for Corrugated and Packaging Plants

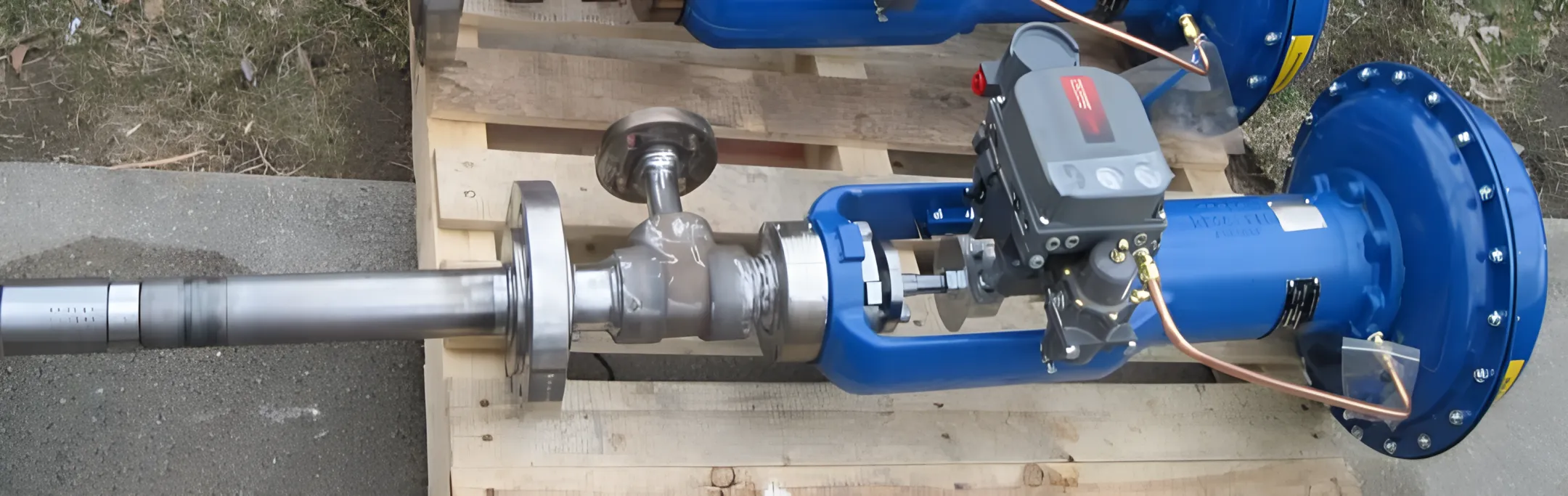

The SPAD is a small-pipe, fixed-nozzle spray-ring attemperator that clamps between two steam pipe flanges. The LPD is a large-pipe, probe-type desuperheater with a variable-nozzle, fully actuated control valve and 90-degree flanged insertion. B-Tech Valve identifies the SPAD for smaller piping and the LPD for steam pipes 6 inches and larger.

A desuperheater introduces water into a steam line so the water absorbs heat and conditions the steam. SPAD and Steam Attemperator models use a fixed spray-ring design fed by a separate temperature control valve, while the LPD uses a variable-nozzle, fully actuated control valve and desuperheater assembly.

Selection involves reviewing steam pipe size, pressure class, temperature, water supply and the desired control method. B-Tech Valve offers fixed-nozzle spray-ring designs and variable-nozzle probe-type designs. The Steam Attemperator is sized for each customer's application, while the LPD is intended for steam pipes 6 inches and larger.

The listed products are available in ASME B16.34 pressure classes 150, 300, 600, 900, 1500, 2500 and 2700. The suitable class should be matched to the steam system design and operating requirements. B-Tech Valve can discuss the appropriate configuration using the application data supplied by the customer.

The SPAD Small Pipe Attemperator Desuperheater, Steam Attemperator and LPD Large Pipe Desuperheater are rated for temperatures up to 1200°F (650°C). Final selection should also consider pressure class, pipe arrangement, water injection requirements and the operating conditions of the steam system.

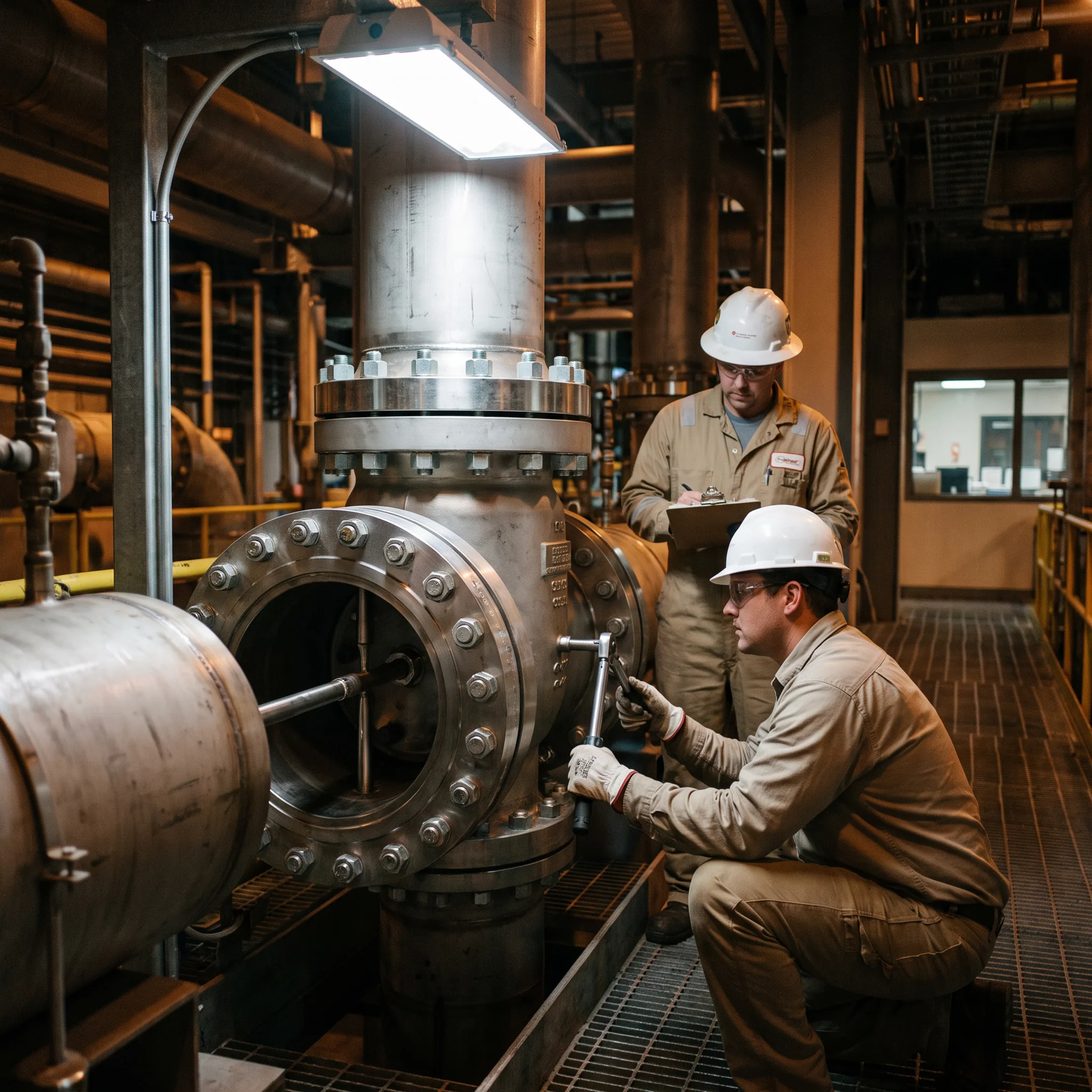

The product information identifies power plants and process plants as applications. Typical objectives include improving steam heat transfer, increasing steam flow, protecting piping and steam traps, protecting rotating seals, decreasing boiler loads and reducing fuel costs. Application sizing helps align the equipment with the plant's steam system.
