Dry vs Wet Steam and Steam Quality

Introduction

Not all steam leaving a boiler is created equal. It might be relatively dry, carrying a few stray water droplets, or it might be superheated well above its saturation temperature. The difference matters more than most operators assume.

Steam quality affects heat-transfer consistency, control-loop performance, and equipment life. Get it wrong, and you're looking at water hammer, erosion, or damage to rotating equipment downstream.

This article breaks down dry versus wet steam, explains dryness fraction and steam quality in plain terms, and walks through how engineers select steam-conditioning equipment based on actual pressure, temperature, flow, and line conditions, not guesswork.

Key Takeaways

• Dry steam carries minimal entrained water and delivers more predictable heat transfer than wet steam at the same pressure
• Wet steam's liquid droplets reduce usable heat content and raise the risk of erosion, water hammer, and corrosion
• Steam quality is measured through dryness fraction, not by how much vapor you can see
• Superheated steam differs from dry saturated steam and often needs desuperheating before process use
• The right fix might be separation, drainage, trap replacement, or a properly sized desuperheater, not simply "drier" steam

Dry vs Wet Steam: Quick Comparison

Here's how the two conditions stack up across the factors that actually matter on a plant floor.

Factor	Dry (Saturated) Steam	Wet Steam
Moisture content	Minimal entrained liquid water; dryness fraction approaches 1	Measurable liquid-water fraction suspended in the vapor flow
Heat-transfer capability	Preserves more latent heat at the operating pressure	Liquid water lowers the mixture's effective heat content
Equipment/piping risk	Supports predictable operation of heat exchangers, traps, and valves	Can cause water hammer, erosion, corrosion, and rotating-equipment damage
Temperature-pressure relationship	Temperature is fixed by saturation pressure (read from a steam table)	Moisture changes energy content even when pressure looks unchanged
Best-fit applications	Process heating, sterilization, heat exchangers, steam distribution	Generally a condition to diagnose and fix, not a target

The takeaway: dryness fraction, not visible vapor, tells you what's actually flowing through the pipe. We'll unpack why that distinction matters next.

What is Dry Steam?

Dry saturated steam is steam sitting right at the saturation point for its pressure, with little to no liquid carryover. That's different from superheated steam, which has absorbed extra sensible heat above saturation temperature.

Industrial boilers rarely produce perfectly dry steam. Even well-designed systems tend to carry a small liquid fraction, which is why engineers talk about steam quality rather than treating "dry" as an absolute state.

Steam Quality and the Dryness Fraction

Steam quality, or dryness fraction, is defined as:

x = mass of vapor / (mass of vapor + mass of liquid)

A dryness fraction of 1.0 means no liquid fraction at all. Anything less indicates entrained moisture mixed into the vapor stream. This ratio, drawn from standard thermodynamic references, is the actual measurement engineers use instead of eyeballing a steam line.

Higher dryness generally means:

• More latent heat available for transfer at a given pressure
• More consistent process temperatures
• Lower risk of liquid slugs reaching downstream equipment

Why Steam Quality Degrades in Distribution

Steam doesn't stay dry just because it left the boiler that way. Quality can drop as steam moves through a plant due to:

• Heat loss through poorly insulated piping
• Condensation along long distribution runs
• Inadequate or poorly located drainage points
• Incorrectly sloped or arranged piping that traps condensate

For precise pressure-temperature-enthalpy relationships, engineers should reference recognized steam tables rather than relying on rule-of-thumb figures. NIST's steam tables remain a standard reference for saturated-liquid and saturated-vapor properties across a full pressure range.

Use Cases of Dry Steam

Relatively dry saturated steam is the workhorse condition for most process heating. Typical applications include:

• Shell-and-tube and plate heat exchangers
• Reboilers on distillation columns
• Jacketed vessels and process tanks
• Pulp and paper drying systems
• Refinery and chemical process heating
• District heating and cogeneration loops

Power-generation turbines are the exception. Turbine service often calls for superheated steam instead, since dryness alone doesn't address the thermal efficiency and erosion concerns specific to rotating blades. Downstream process users receiving that same superheated steam frequently need it conditioned back down to a usable temperature before it reaches heat-sensitive equipment.

Consider a plant troubleshooting uneven heat transfer across a jacketed reactor. If the root cause is excess superheat rather than moisture, the fix isn't a trap or separator. It's reducing steam temperature to match what the process actually needs. Traps and separators handle wet steam; temperature control handles excess superheat.

What is Wet Steam and Steam Quality?

Wet steam is a two-phase mixture: vapor plus entrained liquid water. It can originate right at the boiler outlet through carryover, or develop later as steam loses heat moving through distribution piping.

Steam quality is the dryness fraction: the mass of vapor divided by the total mass of the vapor-liquid mixture. That liquid fraction lowers the mixture's enthalpy compared to dry saturated vapor at the same pressure, so less usable heat reaches the process even when the gauge pressure looks normal.

What Causes Wet Steam

Common root causes include:

• Undersized or poorly positioned steam traps
• Missing separators ahead of sensitive equipment
• Inadequate drip legs at low points in piping
• Excessive steam velocity that entrains condensate
• Startup conditions before lines reach thermal equilibrium
• Boiler carryover from water-level or chemistry issues

Diagnosing Steam Quality

Visible vapor isn't a reliable gauge of dryness. A cloud at a vent or trap discharge tells you condensation is happening at that point, not what the dryness fraction was upstream.

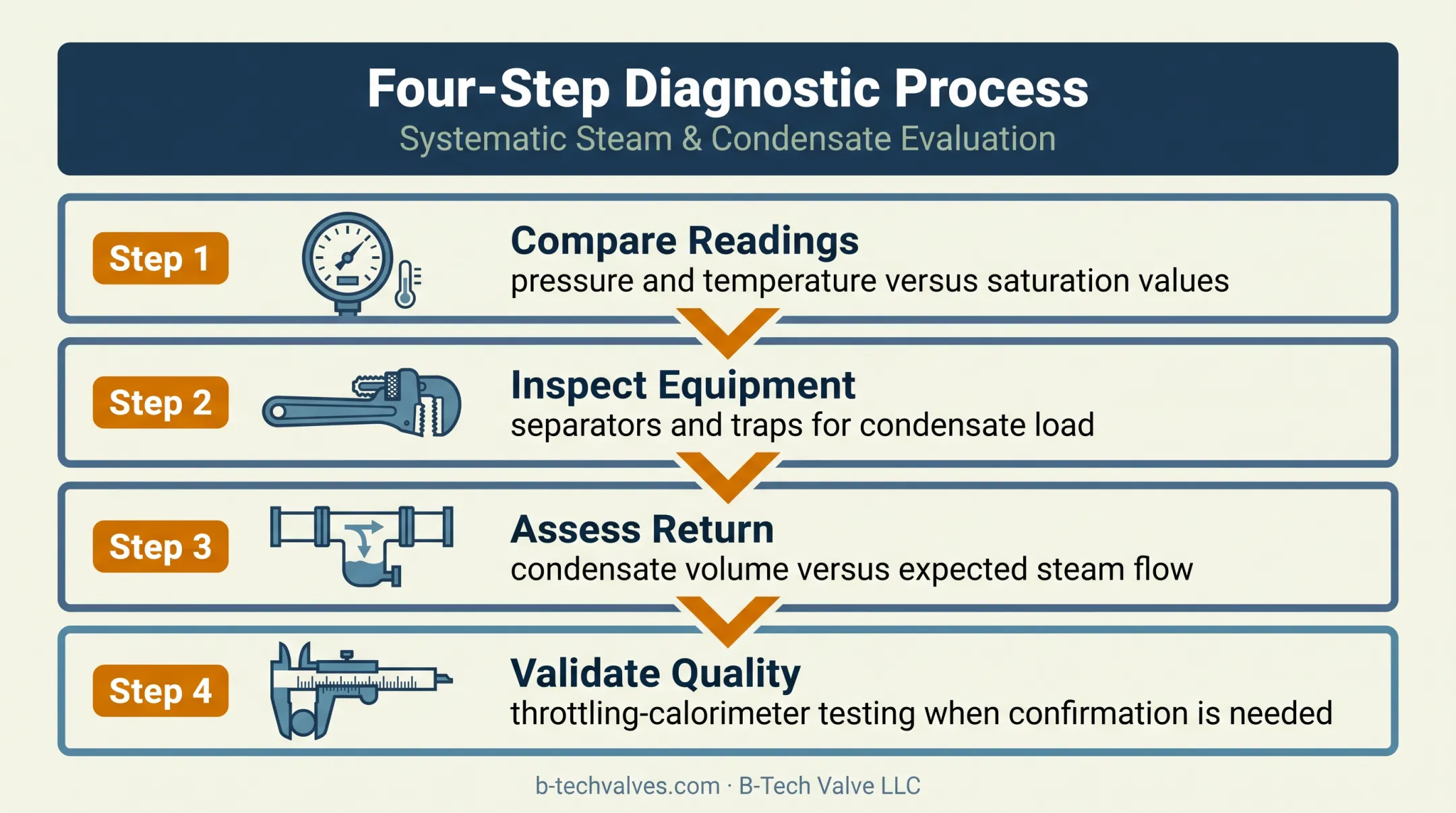

Better diagnostic steps include:

1. Compare pressure and temperature readings against saturation values from a steam table
2. Inspect separators and traps for signs of excessive condensate load
3. Assess condensate return volume relative to expected steam flow
4. Use a validated measurement method, such as throttling-calorimeter testing, where quality needs to be confirmed rather than assumed

Ignoring wet steam has consequences that compound quickly:

• Reduced heat-transfer predictability
• Heavier condensate loading and water hammer
• Erosion at pipe elbows and valve seats
• Corrosion risk and control-valve performance problems
• Turbine blade erosion and higher friction losses when droplets reach rotating equipment

Use Cases of Wet Steam

Plants do not design for wet steam. It is an operating condition to control, even when extra condensate seems harmless or helpful for flushing a line.

Condensate-rich flow tends to show up during:

• Startup, before piping and equipment reach operating temperature
• Pressure reduction stations, where flashing can complicate downstream quality
• Long distribution runs, especially with marginal insulation
• Low-load operation, when velocity drops and condensate pools
• Poorly drained lines, where low points collect liquid between traps

The corrective focus in these cases is moisture and condensate management: separators, properly spaced drip legs, and trap maintenance.

That is a different problem from excessive superheat, where the fix is temperature reduction rather than drainage. Confusing the two leads plants to install the wrong equipment and wonder why the symptom doesn't go away.

Dry vs. Wet Steam: What is Better?

There's no universal winner here. The right target depends on whether the system needs saturated heat transfer, superheated turbine steam, or process steam conditioned to a specific temperature band.

As a general rule:

• Target high-quality, relatively dry steam for process heating and distribution
• Reserve superheated steam for applications, like turbine service, that specifically require it
• Treat excess superheat reaching process equipment as a condition to correct, not tolerate

Equipment-Selection Factors

Correcting excess superheat starts with steam-conditioning equipment sized to the actual operating envelope, not a generic spec sheet. Relevant factors include:

• Inlet and outlet pressure
• Steam temperature range
• Minimum and maximum mass flow
• Pipe size and downstream straight-run requirements
• Allowable moisture and turndown
• Response-time needs
• Water quality for injection
• Control signal type
• Materials and applicable design codes (such as ASME B16.34)

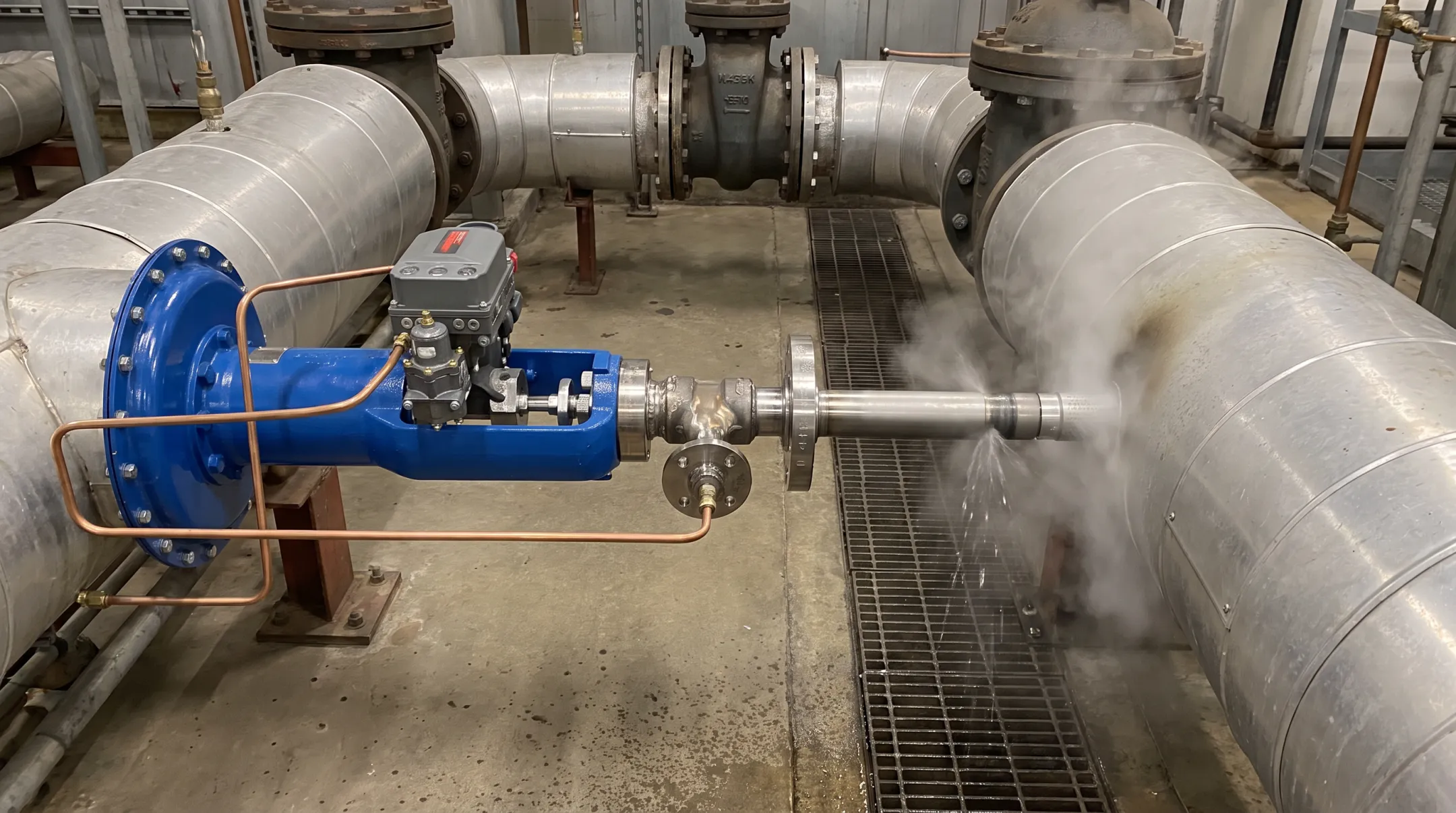

This is where a properly sized desuperheater or attemperator earns its place. These units reduce superheated steam temperature by injecting a controlled amount of water, which absorbs heat as it evaporates into the steam stream.

B-Tech Valve builds two application-engineered assemblies for this duty; both need a full application review before specification:

• LPD (Large Pipe Desuperheater): a probe-type, variable-nozzle, actuated assembly built for steam lines 6 inches and larger
• SPAD (Small Pipe Attemperator Desuperheater): a fixed-nozzle spray-ring design for lines 4 inches and smaller, paired with a separate temperature-control valve

Both are offered in ASME B16.34 pressure classes 150 through 2700, rated for temperatures up to 1,200°F.

Specification Checklist

Before requesting a sizing recommendation, gather:

1. Operating and design pressure
2. Inlet and outlet temperature targets
3. Minimum and maximum flow
4. Line diameter
5. Steam source and water-injection conditions
6. Downstream equipment and desired control range

Having this data ready shortens the sizing conversation considerably.

Real-World Example: When Condensate Becomes a Water Hammer Problem

Not every steam-quality failure is about desuperheating. Sometimes the root cause is liquid carryover sitting in piping that was never designed to hold it.

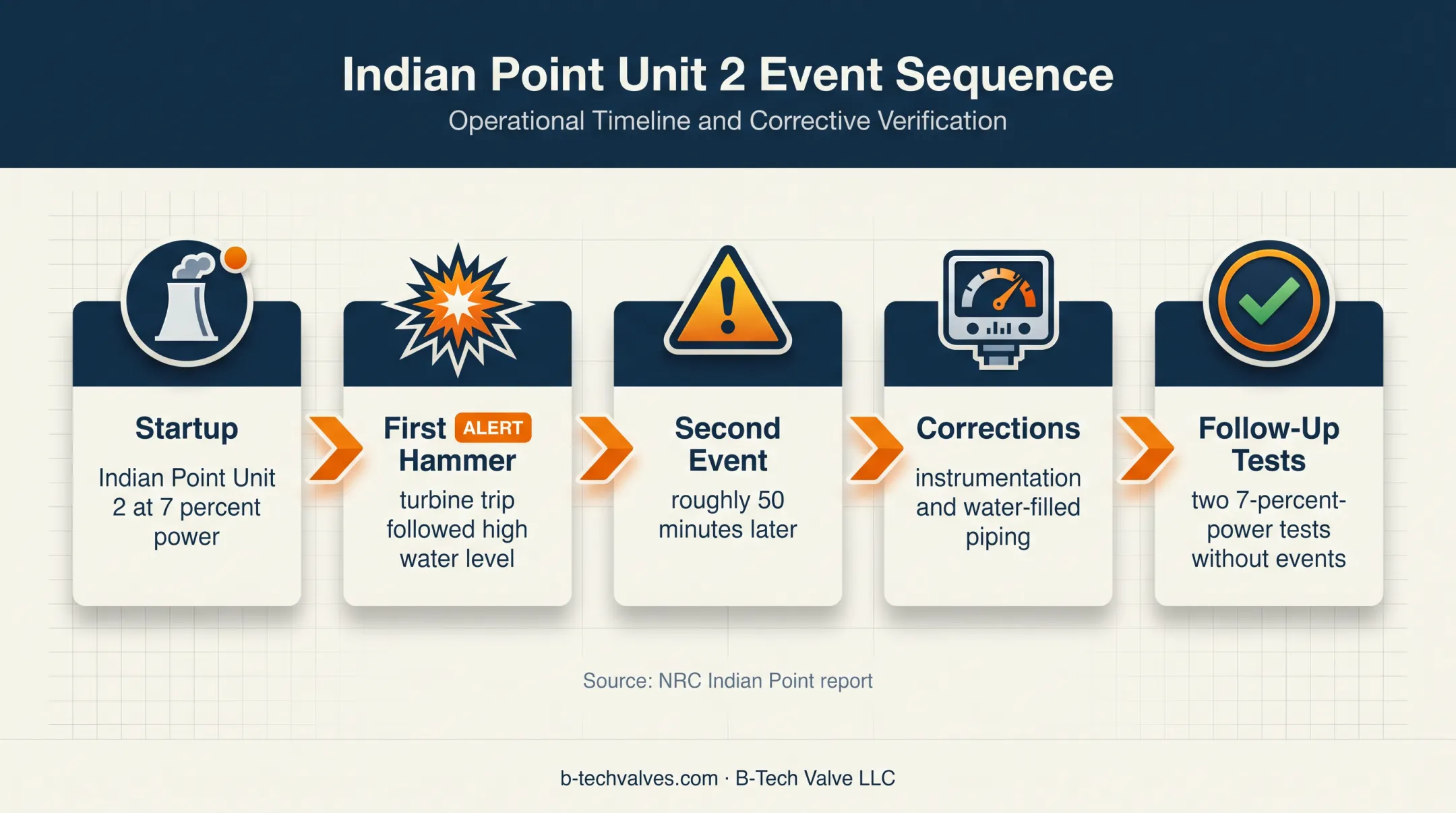

The NRC's Indian Point report documents a 1973 event at Indian Point Unit 2 during a startup at 7% power. A turbine trip followed a high water level in a steam generator, and automatic auxiliary feedwater flowed into a drained, steam-filled feedwater line. The result was a water-hammer event in the adjacent steam-generator feed line, followed by a second event roughly 50 minutes later.

The corrective program didn't involve a desuperheater at all, because the problem wasn't excess temperature. It involved:

• Adding instrumentation to monitor pressure, temperature, strain, and pipe displacement
• Keeping feedwater piping full of water, even with uncovered feedrings, so hammer conditions could not form

Two subsequent 7%-power tests ran without recorded water-hammer events, per the NRC's documentation.

The diagnostic takeaway: excessive temperature points toward desuperheating. Liquid carryover and water-filled or steam-filled piping point toward separation and drainage fixes instead. Mixing up the two means buying the wrong equipment and still having the same failure mode next outage.

Power and process plant engineers, distributors, and outage contractors who confirm excess temperature is the issue can reach out to B-Tech Valve at Sales@B-TechValves.com or 609-321-2205 with pressure, temperature, flow, and line-size data for application-specific desuperheater or attemperator guidance.

Conclusion

Dry saturated steam, wet steam, and superheated steam each need a different response:

• Dry saturated steam supports predictable heat transfer
• Wet steam signals liquid carryover that needs to be measured and controlled, not ignored because the gauge still reads the "right" pressure
• Superheated steam is a separate condition, with distinct application requirements and a specific fix when it's running too hot for equipment downstream

Steam quality connects directly to heat-transfer performance, equipment protection, and how often maintenance crews get called out. Before specifying a separator, trap, desuperheater, or any other piece of conditioning equipment, diagnose what's actually happening in the line. The symptom, whether it's temperature or moisture, tells you which fix to reach for.

Frequently Asked Questions

What is dry steam cleaning?

Dry steam cleaning uses low-moisture water vapor for surface cleaning, often in food-processing sanitation. In industrial steam systems, dry steam means low-moisture dry saturated steam, not the same thing as superheated steam.

What is the difference between wet and dry steam?

Dry steam holds little entrained liquid water; wet steam carries suspended droplets that cut usable heat content. Dry steam supports steadier heat transfer, while wet steam adds condensate, erosion risk, and reliability problems.

How hot is dry steam?

Dry saturated steam temperature isn't a fixed number. It depends entirely on pressure and should be read from a reliable steam table. Superheated steam, by contrast, runs hotter than the saturation temperature at that same pressure.

Why is steam so effective for heating?

Steam carries large amounts of latent heat and a controllable saturation temperature tied to pressure, so process heating stays predictable. That advantage fades quickly when moisture, trapped air, poor drainage, or excessive superheat enter the system.
