Geothermal Desuperheaters

A desuperheater reduces the temperature of superheated steam by introducing controlled water into the steam flow. This conditions steam for downstream use, improves heat-transfer capability, and helps protect piping, steam traps, rotating seals, and other equipment from excessive temperature.

A superheater raises steam temperature by adding heat, producing steam with greater superheat. A desuperheater performs the opposite conditioning function: it lowers superheated steam temperature through controlled water injection. The two devices serve different points in a steam system and are selected according to the required operating conditions.

Desuperheaters are primarily used in the supplied product information for steam conditioning rather than refrigeration. In a general thermal system, desuperheating removes excess vapor temperature before a downstream component. For refrigeration applications, confirm compatibility, controls, fluid conditions, and the required design with a qualified engineer.

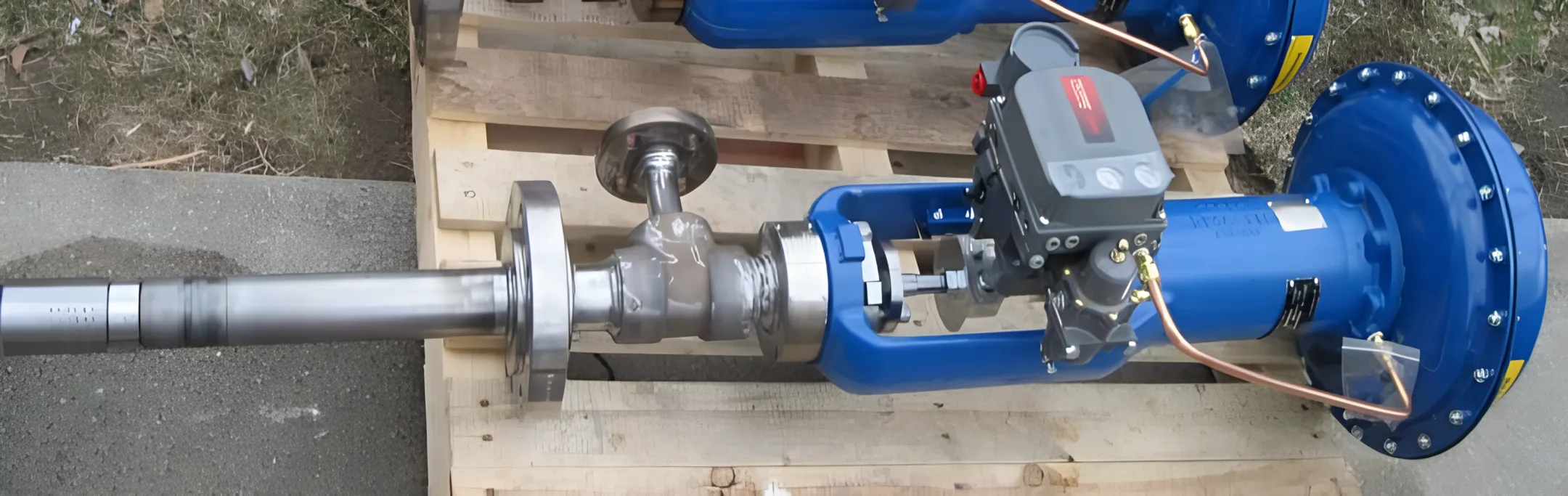

B-Tech Valve offers spray-ring fixed-nozzle designs and probe-type variable-nozzle designs. The SPAD is a small-pipe spray-ring desuperheater that clamps between steam pipe flanges. The LPD is a large-pipe, fully actuated variable-nozzle design with flanged insertion on steam piping.

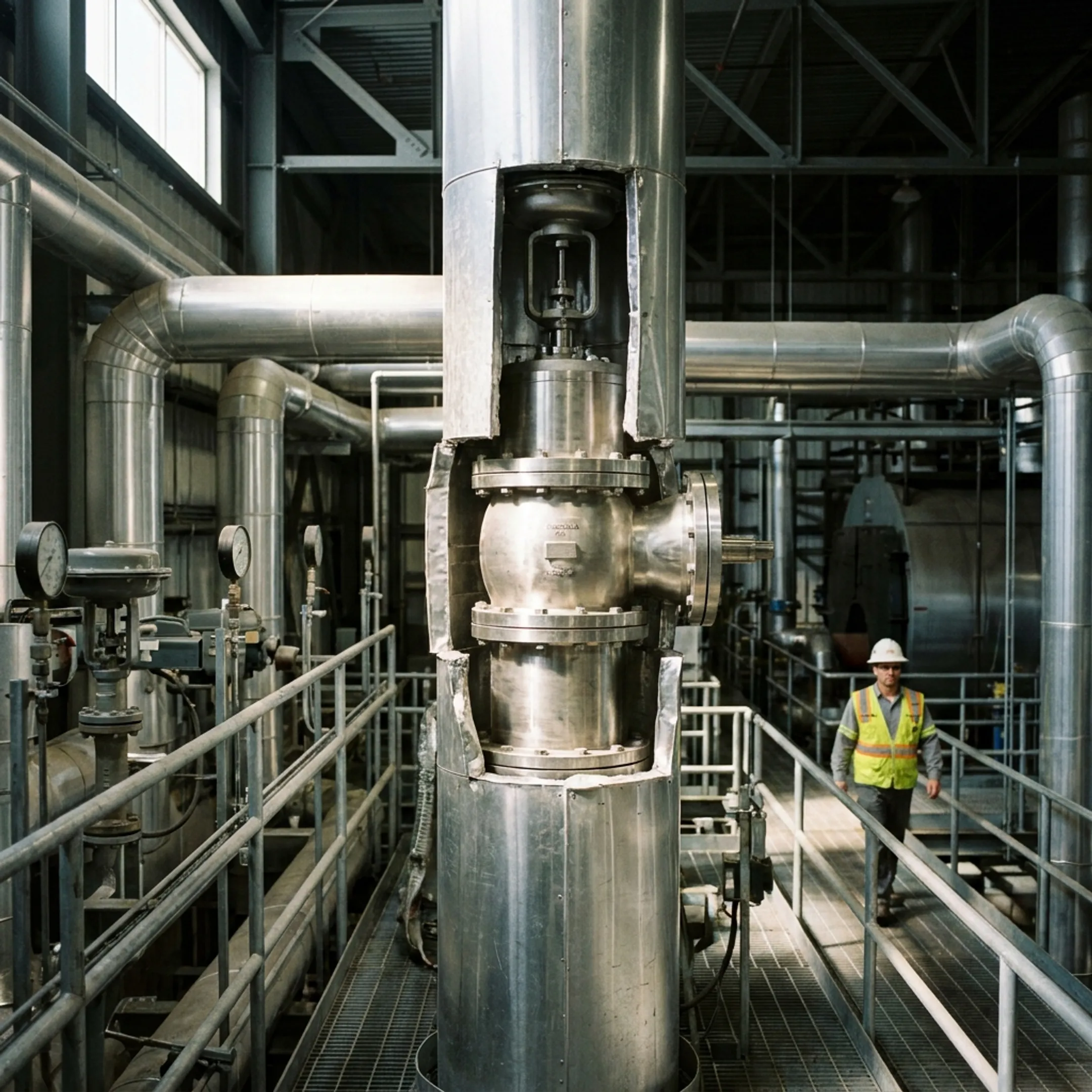

The products are identified for power plants and process plants, including fossil and HRSG power facilities, refineries, chemical facilities, pulp and paper operations, industrial boiler and cogeneration plants, and related steam-system applications. They support steam conditioning, equipment protection, heat-transfer improvement, and boiler-load reduction.

Selection requires application information such as steam pipe size, pressure class, operating temperature, desired outlet condition, water supply, control requirements, and installation arrangement. B-Tech Valve provides application-sized solutions, including spray-ring and variable-nozzle configurations, so the final design can match the system's operating and installation requirements.
