Desuperheaters for Pressure Reducing & Desuperheating Stations (PRDS)

A pressure reducing station is an engineered steam system assembly used to reduce upstream pressure before steam reaches downstream equipment or processes. Depending on the application, it may also include desuperheating equipment to control steam temperature. B-Tech Valve supplies desuperheaters and attemperators intended for integration into power plant and process plant steam systems.

A PRDS system combines pressure reduction with desuperheating. A pressure reducing valve lowers steam pressure, while a desuperheater injects controlled water into the steam stream to reduce temperature. B-Tech Valve products include fixed-nozzle spray-ring designs and probe-type variable-nozzle assemblies for application-specific steam conditioning in power and process plants.

The main purpose of a desuperheater is to reduce the temperature of superheated steam by introducing water into the steam flow. This can improve steam heat-transfer capability and help protect piping, steam traps, and rotating seals. Desuperheating may also support steam flow optimisation and reduce boiler loads and fuel costs in suitable applications.

A steam pressure reducing valve regulates the steam passage to reduce upstream pressure to a controlled downstream condition. The valve responds to the downstream pressure requirement and limits flow as needed. In a PRDS arrangement, a separate or integrated desuperheater manages steam temperature after pressure reduction, helping condition steam for downstream plant equipment.

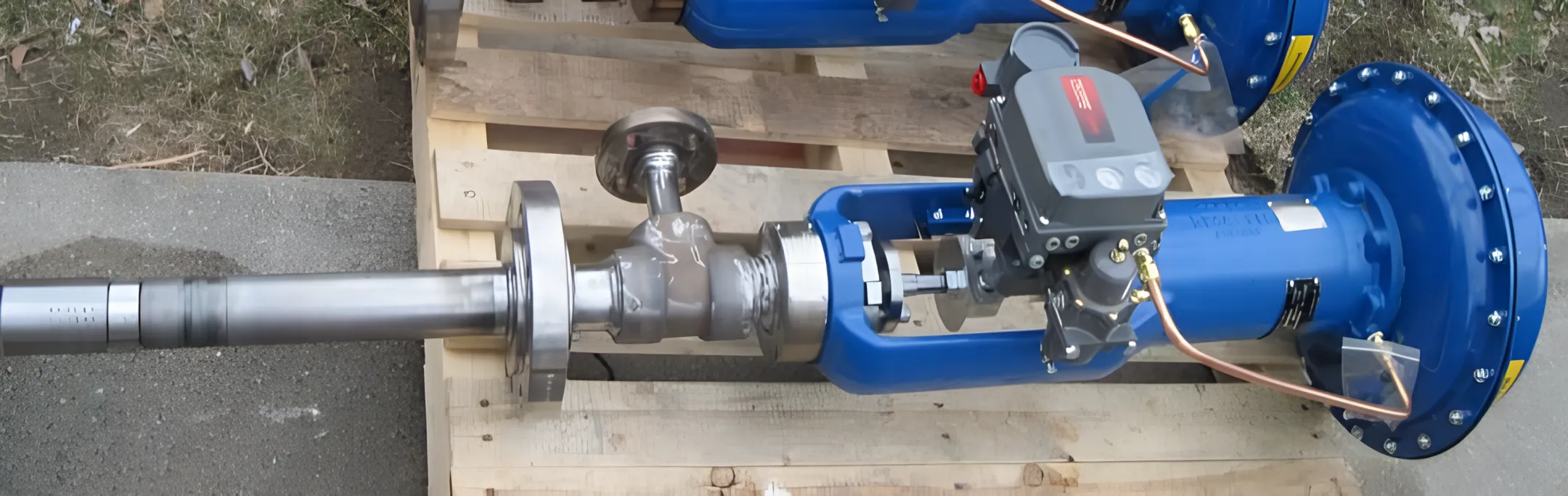

B-Tech Valve offers fixed-nozzle spray-ring designs, including the SPAD small pipe attamperator desuperheater and Steam Attemperator, as well as the LPD large pipe probe-type variable-nozzle design. Replacement parts for desuperheater valves are also available. Product selection depends on pipe size, installation arrangement, pressure class, temperature, and the required steam conditioning performance.

Selection typically requires the steam pipe size, installation arrangement, pressure and temperature conditions, water supply details, and the desired steam outlet condition. The product range includes flange-clamp and 90-degree flanged insertion configurations, with options across ASME B16.34 pressure classes. B-Tech Valve can use the application information to guide product sizing and configuration.
