Many plants struggle with inconsistent process heating, unexpected water hammer, or steam traps that fail faster than expected. Often, the root cause traces back to a mismatch between the assumed steam condition and what's actually flowing through the pipe.
This article defines saturated steam, breaks down its key properties, distinguishes it from wet and superheated steam, and covers where it fits in industrial applications. It also walks through the specification and measurement practices that keep a saturated-steam system performing the way it was designed to.
Key Takeaways
- Saturated steam sits at the phase-change boundary; its temperature depends entirely on pressure.
- Dry saturated steam has no liquid droplets; wet steam carries moisture and a lower dryness fraction.
- Condensation releases latent heat at a fixed temperature, so saturated steam suits process heating well.
- Field data and steam tables beat nominal assumptions every time.
- Superheated steam often needs desuperheating before it works in saturated-steam heat-transfer equipment.
What Saturated Steam Represents
Saturated steam is vapor at the saturation point for a given pressure, the exact condition where adding or removing heat triggers a phase change. Water doesn't just "become steam" at a fixed temperature. It becomes steam at whatever temperature corresponds to the pressure it's under.
Four conditions describe this phase-change progression:
- Saturated liquid – water heated to its boiling point for the current pressure, ready to vaporize.
- Wet steam – a mixture of vapor and liquid droplets; some water hasn't finished evaporating.
- Dry saturated steam – 100% vapor, zero entrained liquid, still at the saturation temperature.
- Superheated steam – vapor heated past the saturation temperature, with no liquid phase present.
Saturation temperature isn't something you dial up independently. In a steady saturated system, pressure sets the temperature. Raise the pressure, and the boiling point rises with it. This is why pressure gauges and thermometers on a saturated line should agree with the steam table value for that pressure.

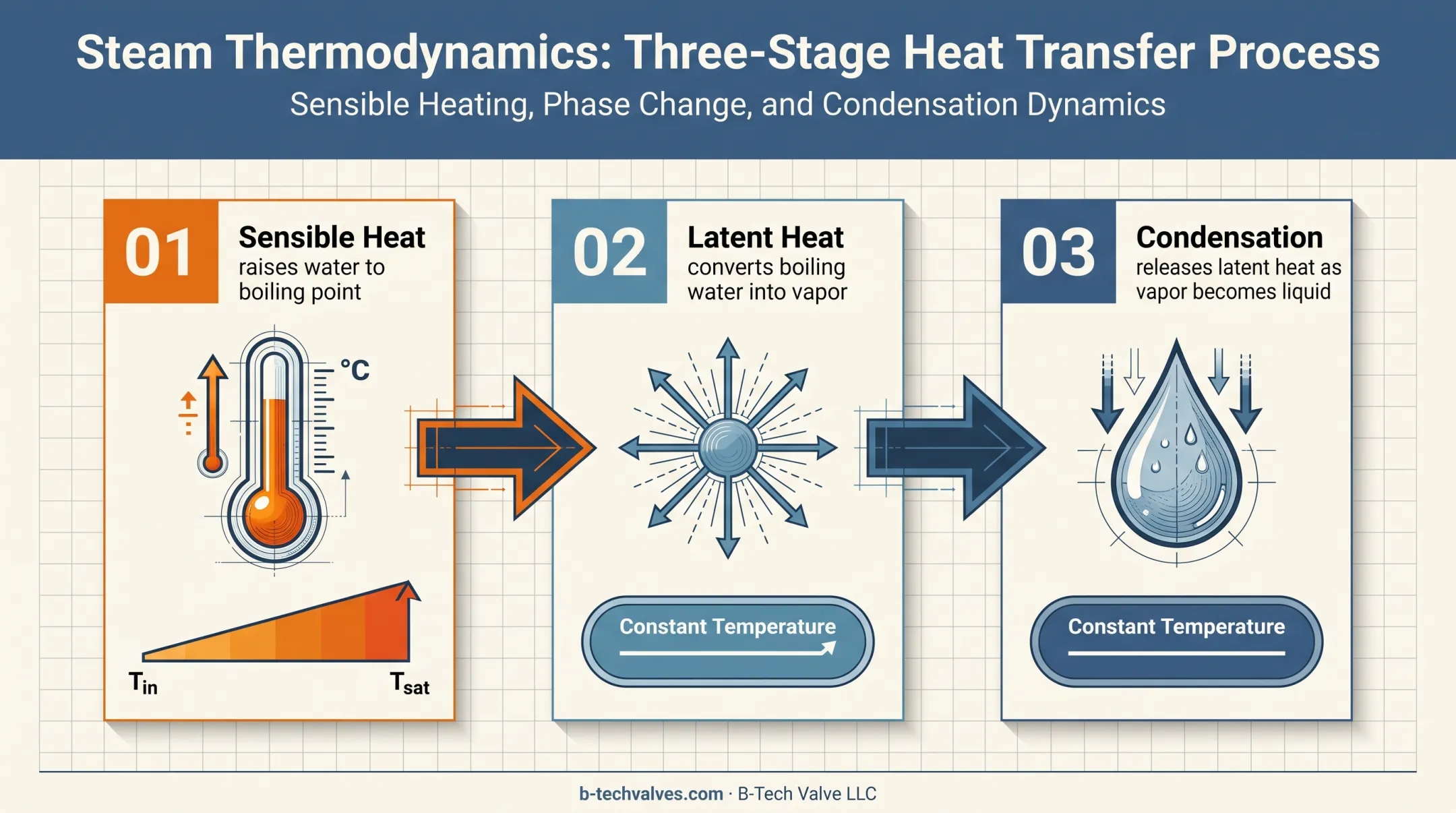

Two types of heat drive this process. Sensible heat raises water's temperature up to its boiling point. Latent heat then converts that boiling water into vapor without raising the temperature further.
Condensation reverses the process. The steam releases that same latent heat as it turns back to liquid, which is why saturated steam is such an efficient heat-transfer medium for process heating.
Factors That Influence Saturated Steam in Real-World Operation
Textbook steam tables assume ideal conditions. Boiler outlets rarely match that assumption exactly. Several real-world factors push actual conditions away from the theoretical curve:
- System losses – pressure drops, pipe-wall heat loss, and moisture carryover shift the delivered steam condition.
- Design and material limits – pressure and temperature ratings, insulation, water chemistry, and equipment compatibility set safe delivery caps.
- Operating variability – load swings, startup and shutdown cycles, poor condensate drainage, and weak steam traps degrade quality over time.
Boiler design, steam separation, and water treatment practices all affect dryness fraction. Rather than assuming a fixed moisture percentage, check the boiler manufacturer's documentation and separator performance data for your specific equipment.
Properties and Operating Range
Saturated steam properties don't work in isolation. Pressure, temperature, specific volume, enthalpy, latent heat, and dryness fraction are all interrelated, meaning a change in one shifts the others.
Pressure–Temperature Relationship
Every saturation pressure has exactly one corresponding saturation temperature. Push the pressure up, and the saturation temperature climbs with it.
As a working example, 100 psig corresponds to a saturation temperature of approximately 338°F (170°C), based on NIST's steam tables. That figure assumes gauge pressure, not absolute.
This gauge-versus-absolute distinction trips up more engineers than it should. Gauge pressure (psig) measures relative to atmospheric pressure; absolute pressure (psia) measures from a true vacuum.
Mixing the two shifts your saturation temperature lookup by roughly one atmosphere's worth of pressure, about 14.7 psi at sea level.
Always label your pressure basis before consulting a steam table, and confirm which convention the specific table you're using follows.
Steam Quality and Dryness Fraction
Dryness fraction measures the proportion of a steam-water mixture that's vapor by mass. A dryness fraction of 0.95 means 95% vapor and 5% entrained water by weight.
That entrained liquid isn't a minor detail. It directly reduces usable heat content, since the latent heat contribution scales with the dryness fraction, not with pressure alone.
Dry saturated steam (dryness fraction of 1.0) rarely survives the trip from boiler to process. Real boiler outlet steam often carries moisture due to:
- Carryover from the boiler drum
- Inadequate separator performance
- Rapid load swings
- Poor condensate drainage downstream
Wet steam causes real damage:
- Entrained droplets erode pipe fittings and valve seats
- Pooling condensate forms slugs that cause water hammer at bends and tees
- Moisture films on heat-transfer surfaces cut overall performance
- Inconsistent condensate removal makes control loops unstable
Energy and Heat-Transfer Properties
Saturated steam's enthalpy has two components: sensible heat (bringing liquid to boiling) and latent heat (vaporizing it). The sum is total enthalpy, and the latent portion is what makes condensation-based heating so effective.

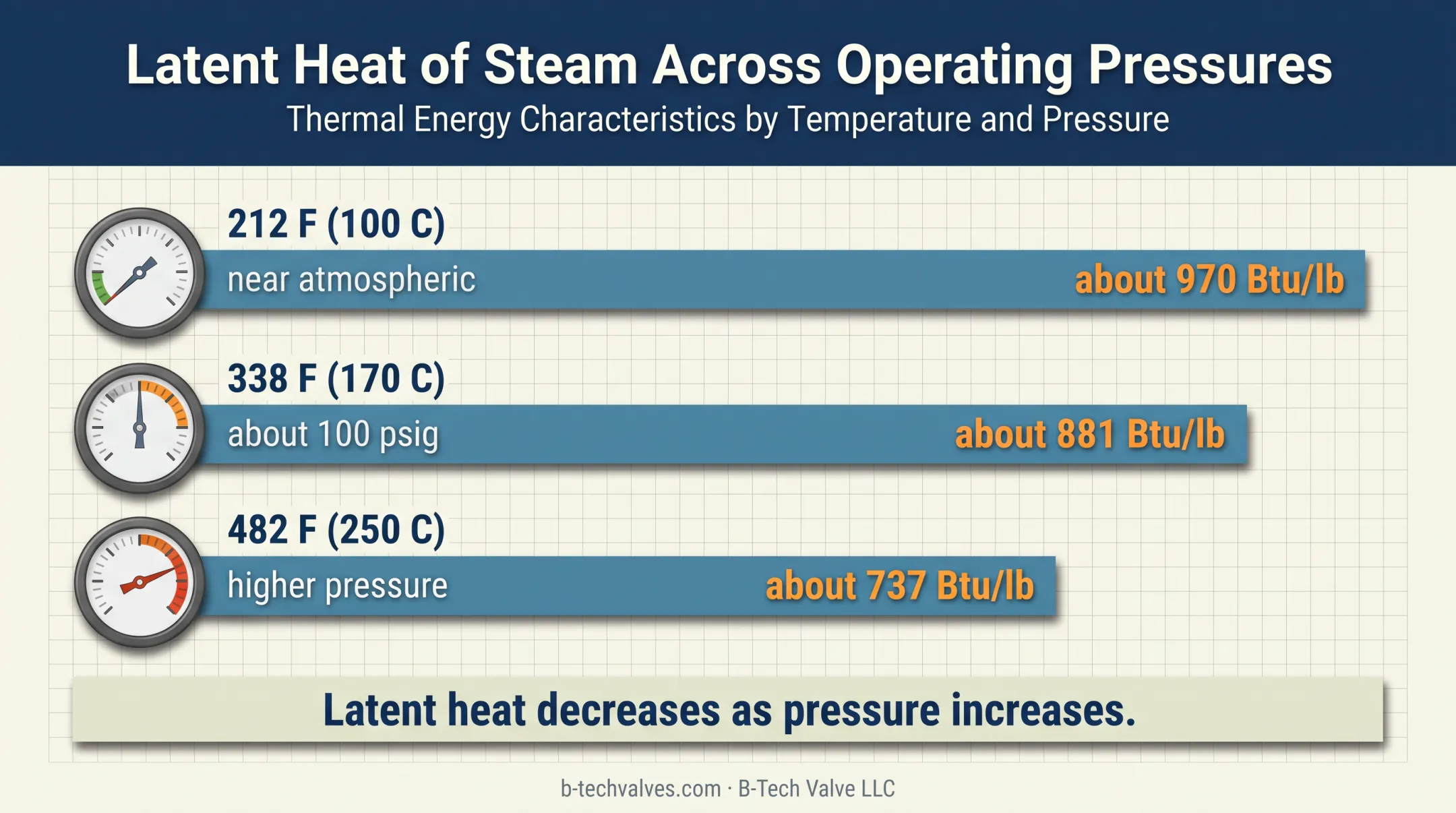

As pressure rises, the picture shifts. Representative saturation data illustrates the trend:
| Saturation Point | Approx. Pressure | Latent Heat (Btu/lb) |
|---|---|---|
| 212°F (100°C) | Near atmospheric | ~970 |
| 338°F (170°C) | ~100 psig | ~881 |
| 482°F (250°C) | Higher pressure | ~737 |
Latent heat per unit mass actually drops as pressure increases, even though total enthalpy rises. This matters when sizing heat exchangers at different pressure levels.
Saturated steam condenses at a nearly constant temperature, which is what makes it so controllable for process heating. Superheated steam, by contrast, has to shed its superheat first. It must cool down to the saturation point before condensation (and heat release) can begin.
Industrial Uses and Application Fit
The right steam condition depends on the job. Rapid heat transfer, precise process temperature control, power generation, minimal condensation during transport, and downstream equipment protection don't all point to the same answer.
Process Heating and Heat Exchangers
Saturated steam is the workhorse for condensation-based heating across refineries, chemical processing, pulp and paper, food and beverage production, rubber manufacturing, and general industrial manufacturing. TLV's technical guide notes that it serves heat exchangers, reboilers, and reactors where condensing heat transfer is the design intent.
In practice, saturated steam provides:
- Even, self-regulating heating in jackets and coils
- Predictable temperature control in process vessels and dryers
- Stable reboiler performance, provided condensate is removed effectively
That last point matters. Without a properly functioning steam trap, condensate accumulates and undercuts the whole benefit of using saturated steam in the first place.
Power Generation, Cogeneration, and Boiler Systems
Power plants typically split roles between steam conditions. Superheated steam does the heavy lifting ahead of turbine expansion, since it's less prone to blade erosion and delivers better thermal efficiency. Saturated steam often handles selected heating or auxiliary duties within the same plant.
Cogeneration facilities, waste-to-energy plants, campus heating systems, and district heating networks often need different steam conditions at different points. A turbine might run on superheated steam while a downstream heating loop needs saturated or near-saturated conditions. That gap is where conditioning equipment earns its place.
Sterilization and Controlled-Temperature Applications
Saturated steam's predictable pressure-temperature relationship makes it well suited to sterilization work, where consistent, repeatable temperatures matter. CDC sterilization guidance cites typical cycle temperatures of 270–275°F (132–135°C) for porous loads and instruments.
Sterilization validation still depends on facility-specific and load-specific requirements beyond the thermodynamics alone. Always verify current industry standards for your application rather than relying on general temperature ranges.
Desuperheating and Steam Conditioning

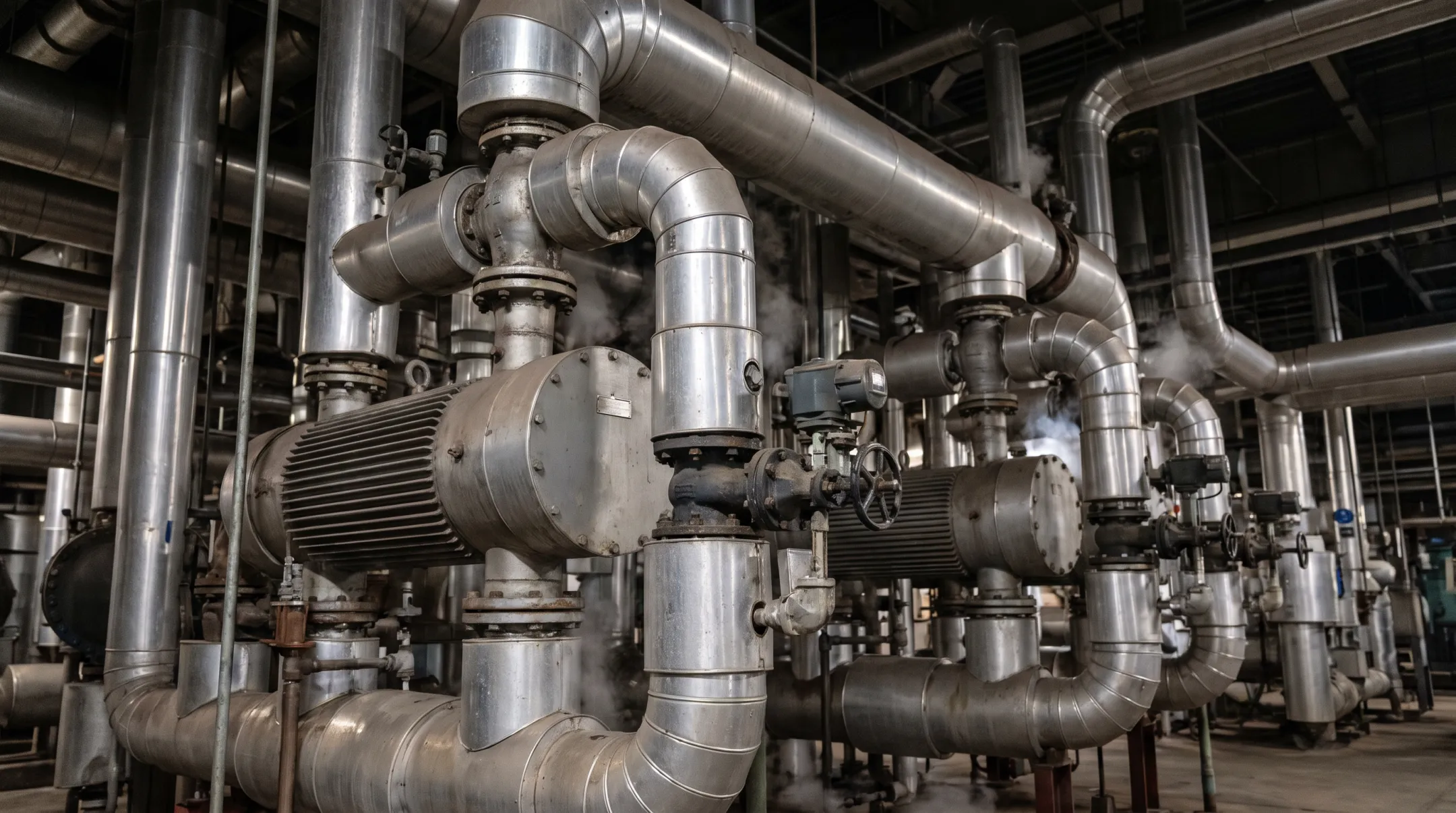

When superheated steam needs to behave more like saturated steam for a downstream process, a desuperheater (also called an attemperator) injects water to pull the temperature down toward saturation.
This is where B-Tech Valve's product line fits. The company offers two application-engineered options:
- LPD (Large Pipe Desuperheater) – built for steam pipes 6 inches and larger, combining a variable-nozzle actuated control valve with the desuperheater function in one assembly.
- SPAD (Small Pipe Attemperator Desuperheater) – a spray-ring design intended for pipes 4 inches and smaller, paired with a separate temperature-control valve.
Both are offered across ASME B16.34 pressure classes 150 through 2700, for temperatures up to 1,200°F. Not every saturated-steam system needs a desuperheater. Match equipment to the pipe size, pressure class, and temperature requirement at hand rather than forcing a one-size-fits-all fix.
Specification, Measurement, and Validation
Saturated steam is both a design condition on paper and an operating condition in the field. The two need to match, and that takes documentation plus measurement.
Specification and Documentation
Before specifying equipment, nail down:
- Pressure basis – gauge or absolute, stated explicitly
- Saturation temperature – derived from the pressure, not assumed
- Flow rate – mass or volumetric, as required by the application
- Steam quality – expected dryness fraction at the point of use
- Line size, materials, and pressure class – matched to actual operating conditions
- Load profile – normal, peak, and startup/shutdown scenarios
Use current steam tables, equipment datasheets, process specifications, P&IDs, and applicable ASME or site standards. Rated values, normal operating values, and tested values aren't interchangeable. Keep them distinct in your documentation.
Measurement and Verification
Field verification combines several tools: pressure transmitters, temperature sensors, flow meters, separators, moisture measurement, and steam-trap surveys. Together, they confirm whether actual conditions match the intended saturated-steam state.
A few things routinely trip up field verification:
- Sensor location matters. A downstream temperature reading isn't the same as a boiler-outlet condition.
- Heat loss and pressure drop along the pipe run shift the real values away from source conditions.
- Response time on sensors can mask transient swings during load changes.
Check pressure and temperature simultaneously, and investigate inconsistent readings before adjusting control settings or replacing equipment outright. A sensor problem looks a lot like a process problem until you've ruled it out.
Risks, Misinterpretations, and Conclusion
Operating outside the intended steam condition carries real consequences. Excess moisture leads to water hammer, erosion, corrosion, poor heat transfer, and rotating-equipment damage.
Excessive temperature can overstress components that were only ever rated for saturated service.
A few misunderstandings keep showing up across plants:
- Treating "saturated," "dry," and "superheated" as interchangeable terms
- Applying a steam-table value without checking whether it's gauge or absolute pressure
- Treating a nominal pressure or temperature rating as a hard, universal limit
Application conditions shift constantly. Load changes, pressure-reducing stations, insulation quality, condensate drainage, steam-trap operation, and control-valve response all affect what steam actually looks like downstream of the boiler.
Saturated steam is a governing thermodynamic condition, not a loose description of hot vapor. Reliable design depends on matching pressure, temperature, steam quality, materials, controls, and downstream process requirements, all at once, not one at a time.
If you're specifying or replacing steam-conditioning equipment, get an application-specific engineering review before selecting a valve or desuperheater. Current operating data and verified sizing information matter more than a catalog spec sheet.
B-Tech Valve's team sizes LPD and SPAD units to the actual pipe size, pressure class, and temperature at hand rather than a generic recommendation.
Frequently Asked Questions
What are the properties of saturated steam?
Saturated steam is defined by pressure, saturation temperature, enthalpy, latent heat, specific volume, and dryness fraction. These values move together. Exact figures depend on pressure, so always check a current steam table rather than relying on a generic number.
How hot is saturated steam?
There's no single answer. Saturated steam's temperature equals the boiling point for its specific pressure, so 50 psig steam and 150 psig steam sit at very different temperatures. Check a pressure-specific steam table for the exact value.
What is the temperature of saturated steam at 100 psi?
At 100 psig, saturated steam runs at approximately 338°F (170°C), based on NIST's steam tables. If your 100 psi figure is absolute rather than gauge, the corresponding temperature will differ.
What are the three types of steam?
Most engineering references identify wet steam, dry saturated steam, and superheated steam. Terminology varies by source, but saturated and superheated always describe different positions relative to the liquid-vapor phase boundary.
